EATON

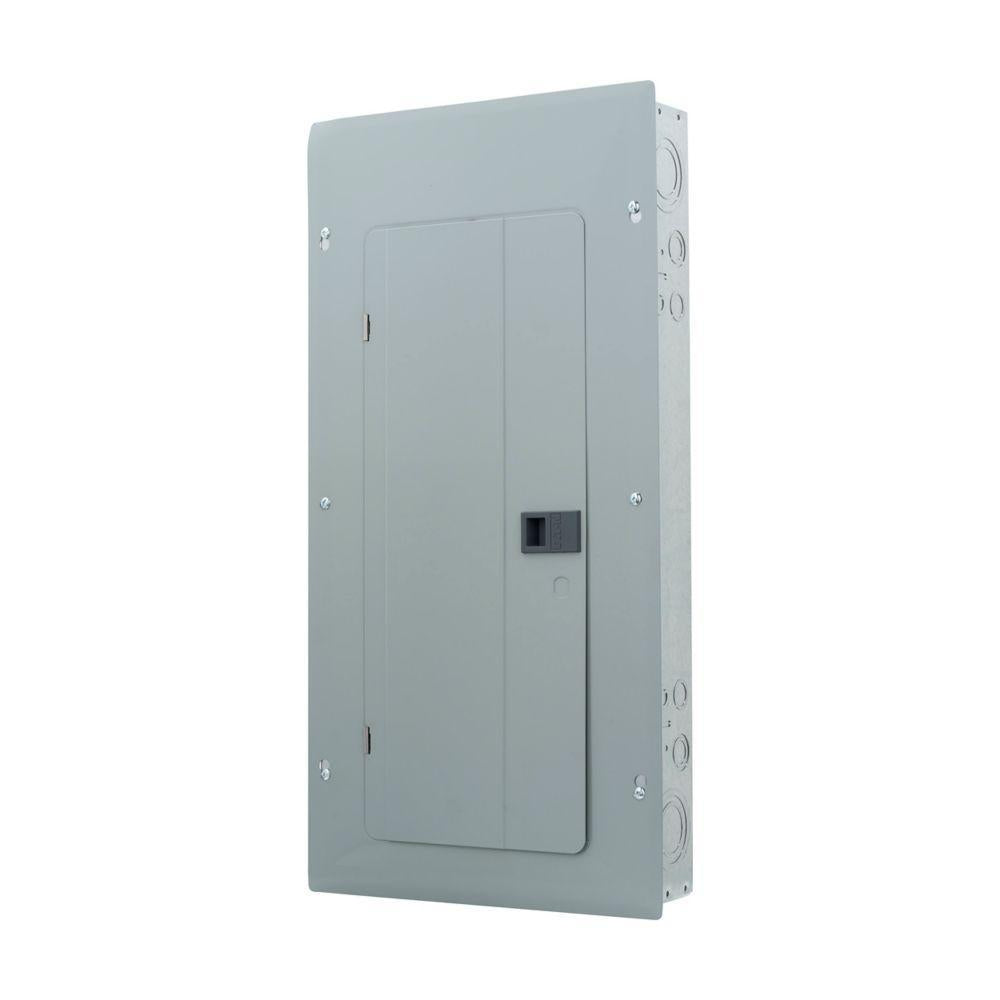

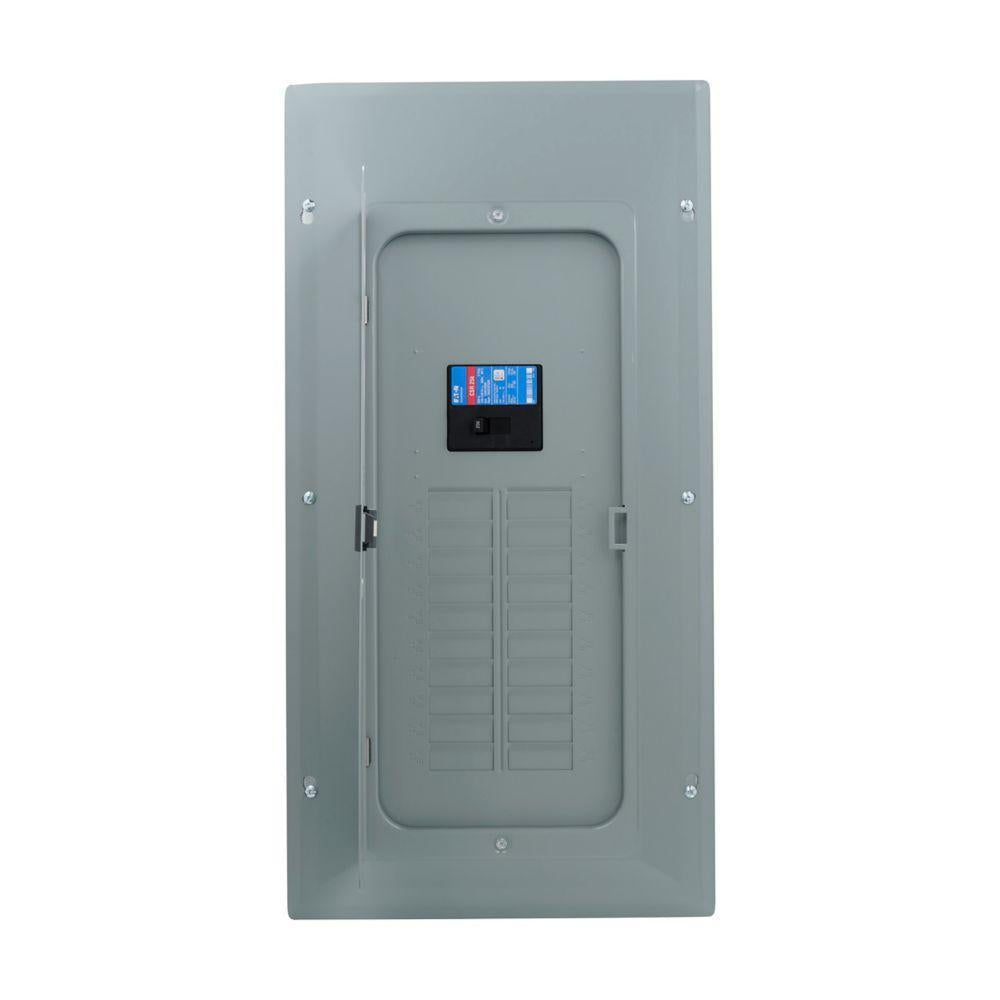

Main Breaker Load Center - 1 Pole

Main Breaker Load Center - 1 Pole

BRP20B150

$362.04
$362.04 $197.03
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings
• Straight-in wiring saves labor and material
• One-panel for either top or bottom application
• 2/0 AWG lug, easily removable and can be installed in any locations on the neutral bar
• Type BR AFCI breakers, compact design for easier wiring and improved wireway access, provides a clean gutter space
• Standard tin-plated aluminum bus for excellent conductivity and corrosion-resistance
• Tangential center knockout, easier installation for conduit application
• Commercial grade main breaker, 25 kAIC series rated main breaker for superior protection
• Neutral bus, easily removable for sub-panel application
• Bonding Z-strap, provides easy field conversion for service entrance application

DIMENSIONS

LENGTH

27 in

WIDTH

14.31 in

HEIGHT

3.88 in

WEIGHT

26.2 lb

WARRANTY

10 years

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

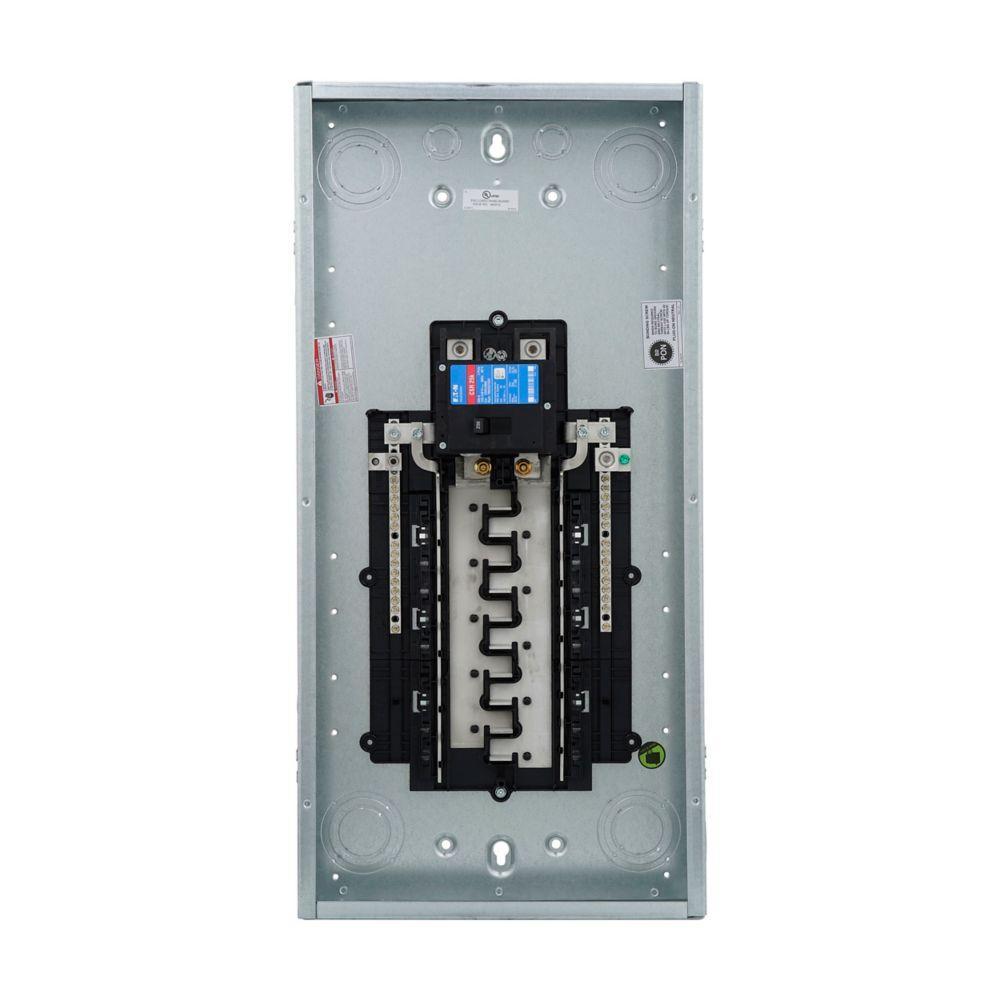

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

SPECIFICATIONS

Amperage Rating

150 A

Breaker Type

BR/CSR

Dimensions

27 in L x 14.31 in W x 3.88 in H

Enclosure Box Size

X4

Enclosure Type

NEMA 1

Housing Material

Galvanized Steel

Interrupt Rating

25 kA

Mounting Type

Plug-On

Number of Circuits

40

Number of Poles

1

Number of Spaces

20

Type

1-Phase

Voltage Rating

120/240 V AC

Wire Size

2 AWG to 300 kcmil

Wiring Configuration

3-Wire
