EATON

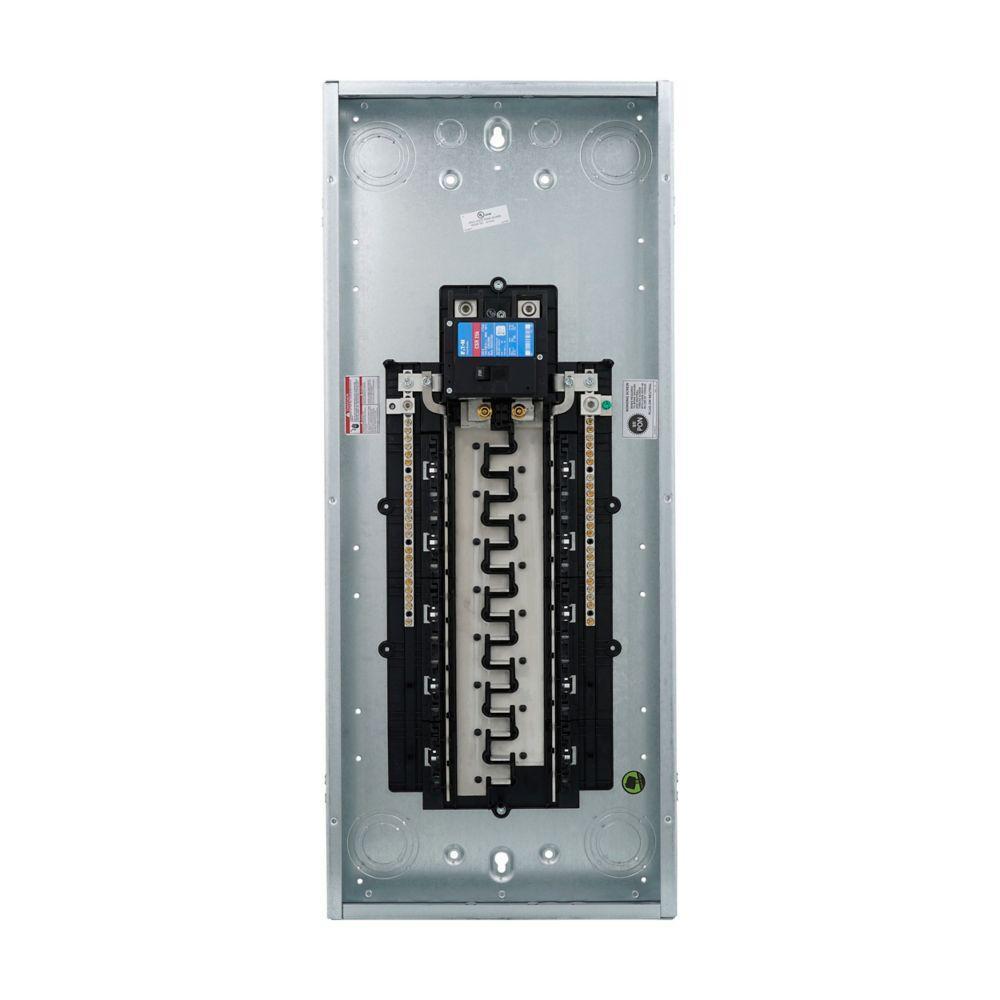

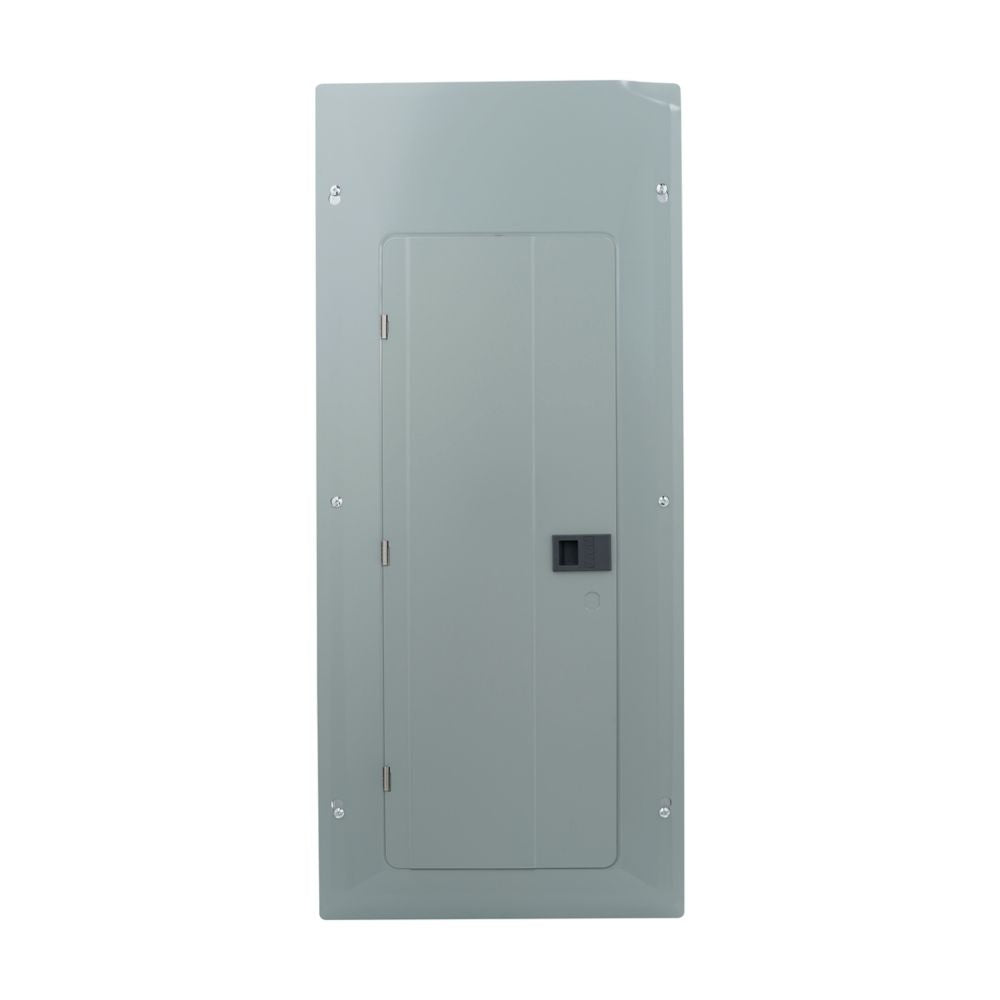

Main Breaker Load Center - 150 A

Main Breaker Load Center - 150 A

BRP30B150

$227.04
$227.04 $233.81
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings for renovation installations
• Straight-in wiring saves labor and material
• One panel for either top or bottom applications
• 2/0 AWG lug, easily removable and can be installed in any location on the neutral bar
• Type BR AFCI breakers, compact design for easier wiring and improved wireway access, provides a clean gutter space
• Standard Tin-plated aluminum bus for excellent conductivity and corrosion-resistance
• Tangential center knockout - easier installation for conduit applications
• Commercial grade main breaker, 25 kA series rated main breaker for superior protection
• Neutral bus, easily removable for sub-panel applications
• Bonding Z-strap, provides easy field conversion for service entrance applications

DIMENSIONS

LENGTH

34.12 in

WIDTH

14.31 in

HEIGHT

3.88 in

WEIGHT

31.1 lb

WARRANTY

10 years

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

SPECIFICATIONS

Amperage Rating

150 A

Breaker Type

BR/CSR

Dimensions

34.12 in L x 14.31 in W x 3.88 in H

Enclosure Box Size

X6

Enclosure Type

NEMA 1

Housing Material

Galvanized Steel

Interrupt Rating

25 kA

Mounting Type

Plug-On

Number of Circuits

30

Number of Poles

1

Number of Spaces

30

Type

1-Phase

Voltage Rating

120/240 V AC

Wire Size

2 AWG to 300 kcmil

Wiring Configuration

3-Wire
