EATON

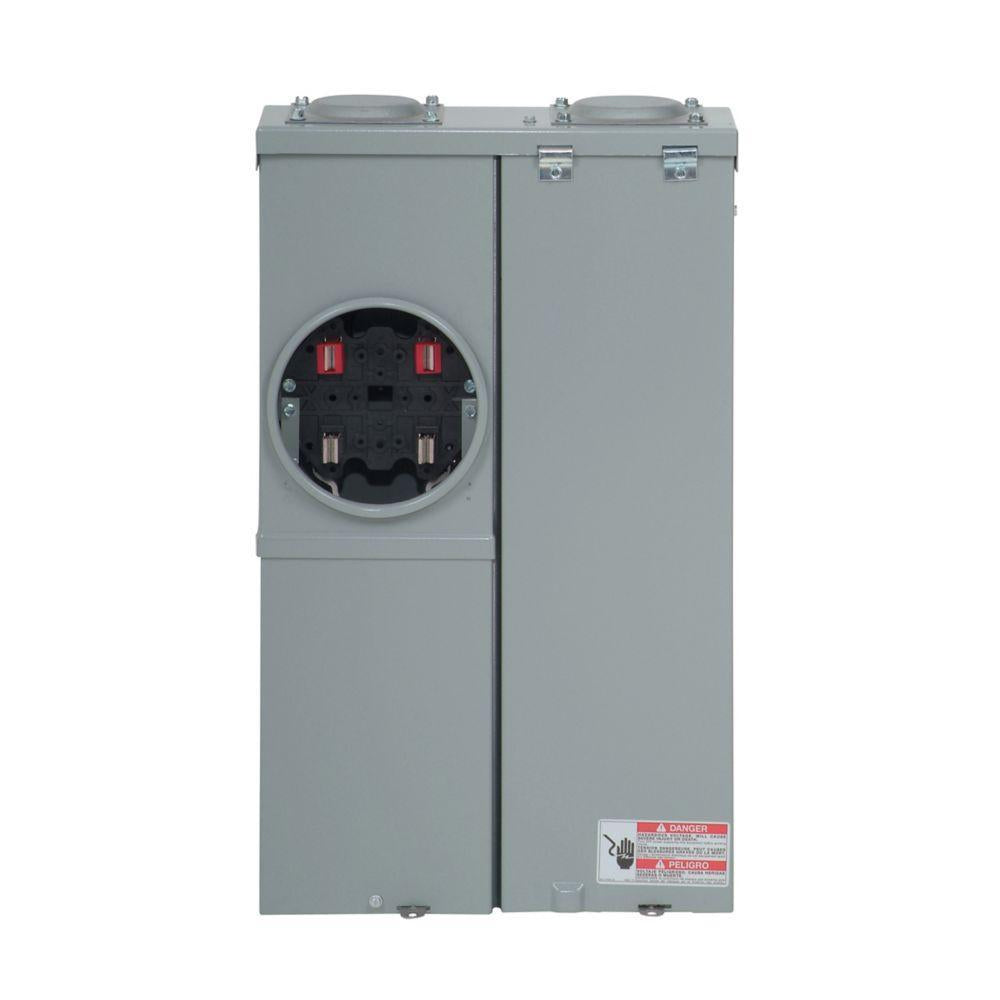

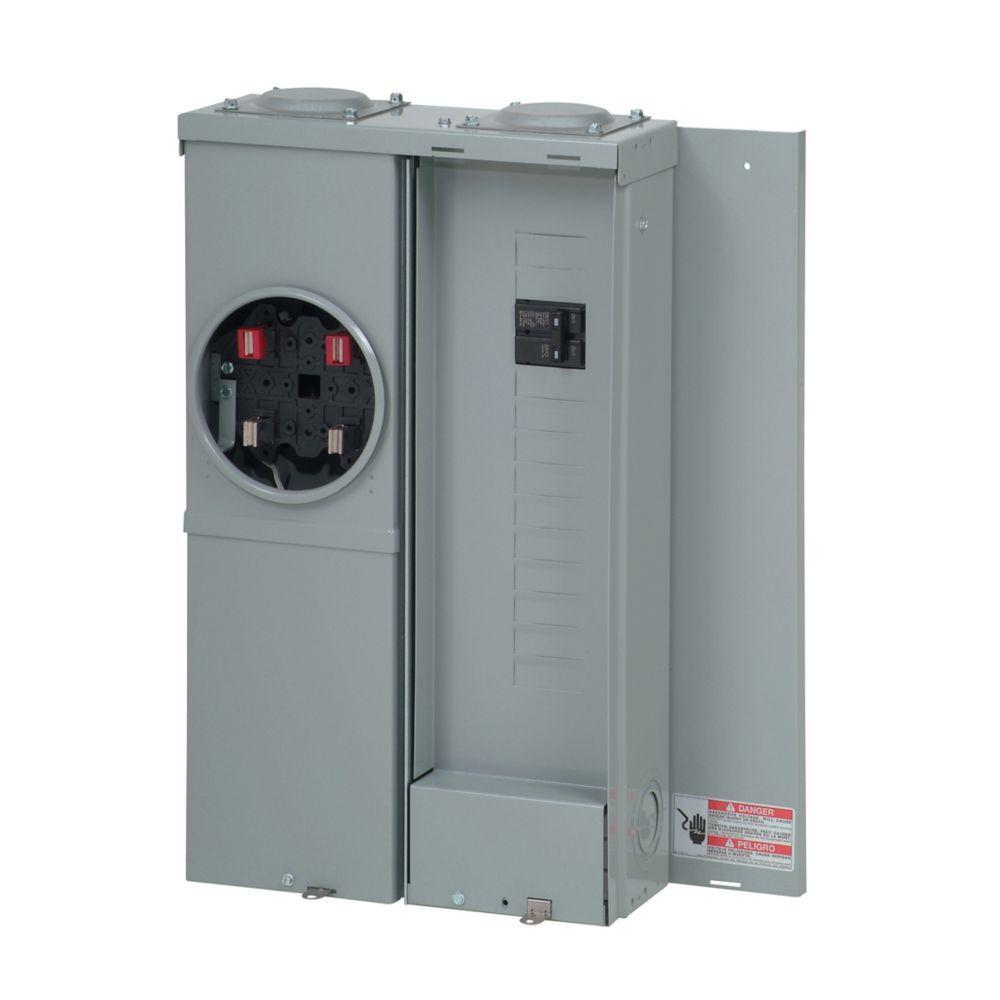

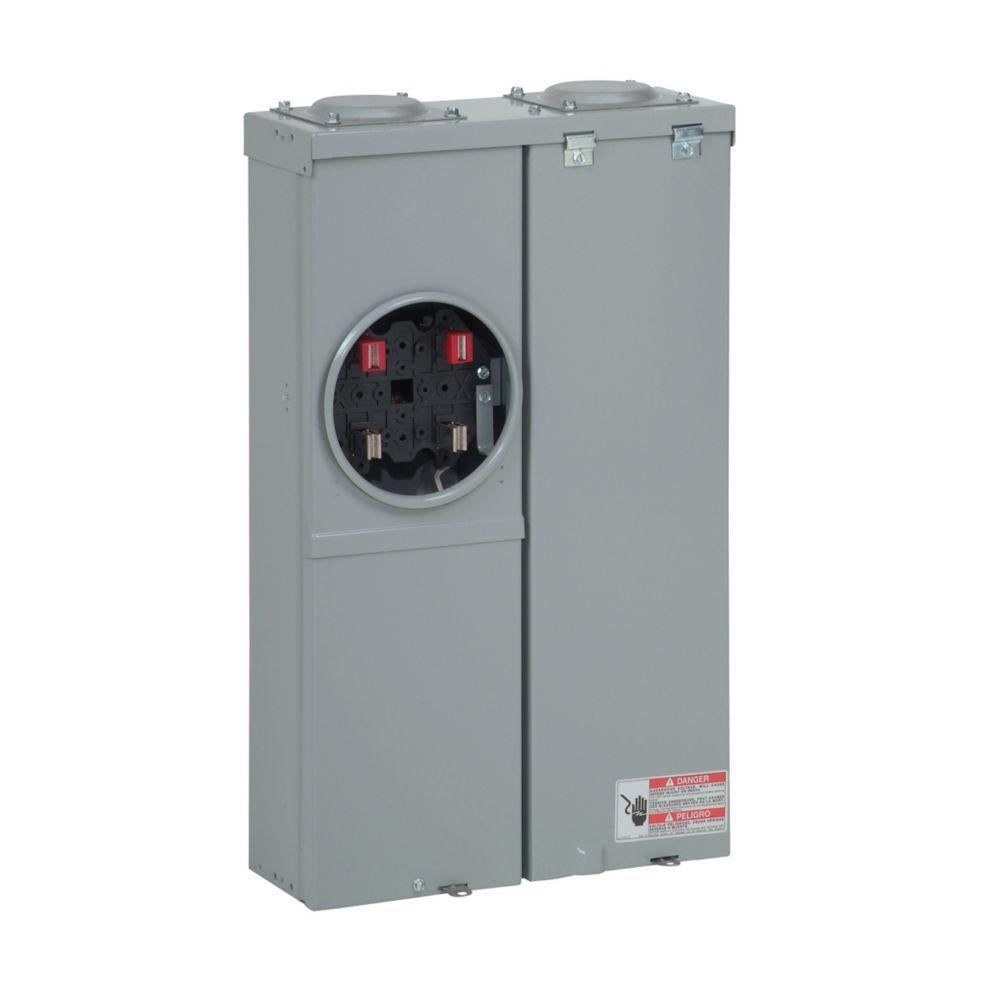

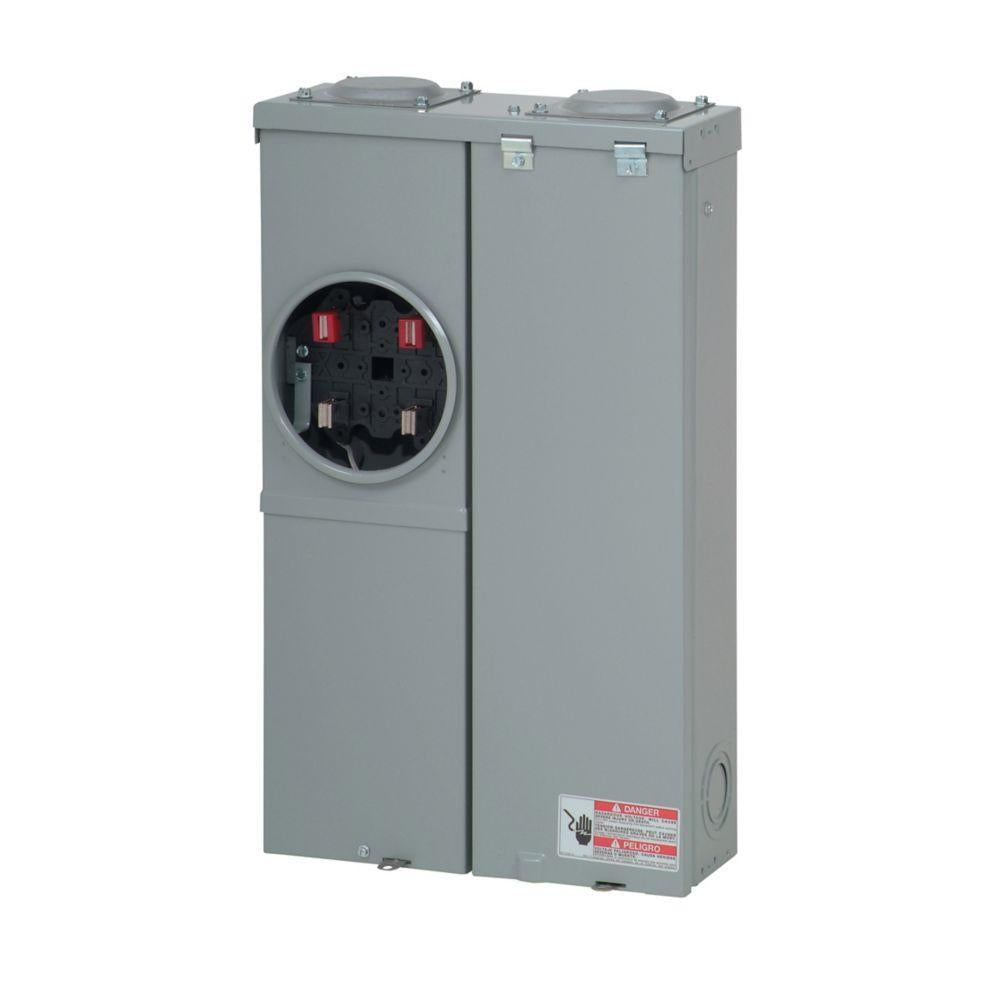

Mbe - Combination Service Entrance Meter Breaker - Surface

Mbe - Combination Service Entrance Meter Breaker - Surface

MBE1224B100BTS

$128.28
$128.28 $93.46
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Larger 250 kcmil lugs and additional knockouts for ease of installation
• Factory installed neutral assemblies
• Hub provisions on top endwall
• Ring type sockets are provided with a sealing ring
• Padlockable device covers provide an additional measure of security and help prevent tampering
• Most units have center keyhole for easy one person installation

DIMENSIONS

LENGTH

5.38 in

WIDTH

14.44 in

HEIGHT

23.88 in

WEIGHT

34 lb

WARRANTY

10 years

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

Eaton's Residential Meter Breakers save time and cost by providing contractors with all-in-one service entrance equipment. They allow for quick, flexible, simple installation, and can be used with BR- or CH-type branch circuit breaker styles. Constructed to be a self-contained durable enclosure and meet the latest NEC wire bending space requirements, they are particularly useful for residential metering in areas where utilities are deregulated, and the electrical contractor has to supply watt-hour meter sockets.

SPECIFICATIONS

Amperage Rating

100 A

Cover Type

Ring

Dimensions

5.38 in L x 14.44 in W x 23.88 in H

Enclosure Type

NEMA 3R

Feed Type

Bottom/Overhead/Top/Underground

Hub Size

1 in

Hub Type

Top Endwall

Mounting Type

Surface

Number of Jaws

4

Phase

1

Series

MBE

Terminal Type

Line/Load

Type

Type CH 24-Circuit 1-Socket 12-Space 3-Wire All-In-One Combination Service Entrance

Voltage Rating

120/240 V AC

Wire Size

14 to 2/0 AWG, 6 AWG to 250 kcmil
