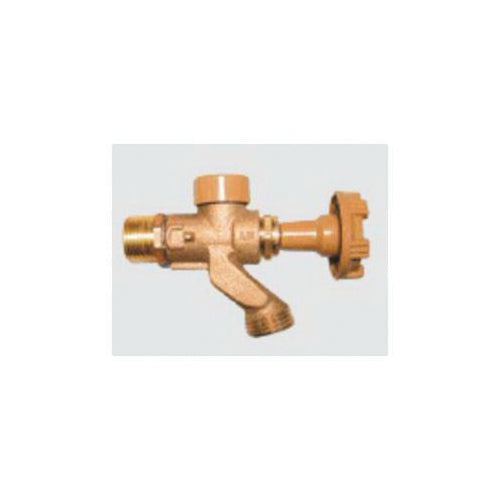

Model 101 - 3/4 or 1/2" Anti-Siphon Wall Faucet
Model 101 - 3/4 or 1/2" Anti-Siphon Wall Faucet
PS-101P-BP
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• 3/4 in male hose thread nozzle
• EPDM packing with adjustable packing nut
• Standard "O" size seat washer
• No lead solder joints
• Red brass head casting
• Solid brass valve stem
• Powder-coated die cast aluminum wheel handle
• Adjustable, polycarbonate wall flange not assembled
DIMENSIONS
DIMENSIONS
|
LENGTH |
4.88 in |
|---|---|
|
HEIGHT |
3.5 in |
|
WEIGHT |
0.84 lb |
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
The Model 101 is an anti-siphon protected wall faucet designed with the classic Woodford® look for irrigation purposes in mild climate areas. The Model 101 utilizes Woodford® atmospheric vent and patented check to provide anti-siphon protection. This feature eliminates the need for an add-on vacuum breaker that restricts flow.
SPECIFICATIONS
|
Dimensions |
3-1/2 in H |
|---|---|
|
Domestic/Import |
Domestic |
|
End Style |
Combination MNPT x FNPT |
|
Handle Type |
Wheel |
|
Nominal Size |
3/4 or 1/2 in |
|
Pressure Rating |
125 psi |
|
Series |
Model 101 |
|
Temperature Rating |
120 deg F |
|
Type |
Anti-Siphon |

$43.56
