VIEGA

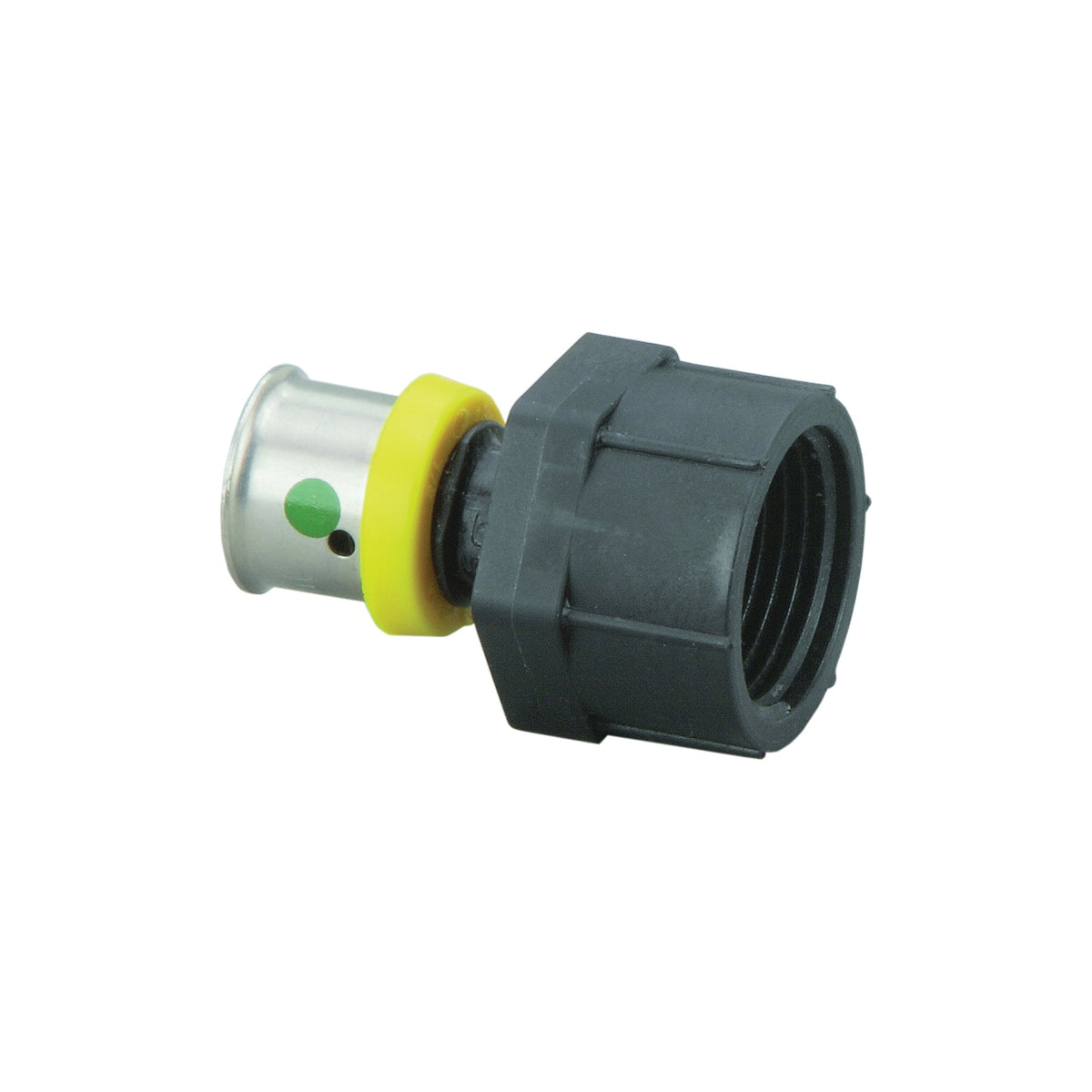

Model V5613.1 - Adapter - Polymer

Model V5613.1 - Adapter - Polymer

49224

Nominal Size
$6.05
$6.05 $4.98
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Viega PureFlow® press polymer fittings and manifolds are molded from Radel® R polymer
• Viega PureFlow® press fittings are precision-made to tight tolerances for a consistent fit with Viega PureFlow® PEX tubing
• Exhibit excellent resistance to the corrosive effects of water and are well suited for hot water applications
• Viega PureFlow® press polymer includes smart-connect technology providing quick easy identification of unpressed connections during the pressure testing process
• Viega PureFlow® press polymer fittings are corrosion and impact resistant
• For connecting distribution lines to Viega ManaBloc and Viega MiniBloc, Model V5630/V5640 Viega ManaBloc distribution manifold, Model V5650/V5660 Viega MiniBloc zoning manifoldASTM F876 specification for crosslinked polyethylene (PEX) tubing
• ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems

DIMENSIONS

WEIGHT

0.05 lb

WARRANTY

Limited

DOCUMENTS & RESOURCES

Specification Sheet
User Manual
Warranty Information
Product Brochure

PRODUCT OVERVIEW

This product specification designates the requirements for Viega PureFlow® Press Polymer fittings with Smart Connect technology and attached stainless steel press sleeves with tool locator ring to be used as connections for Viega PureFlow® PEX, ViegaPEX Barrier, and FostaPEX tubing in3/8 in, 1/2 in, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in and 2 in sizes as available. The connections are to be completed with the aid of a Viega PureFlow® Press Hand Tool or Viega PureFlow® Press Power Tool.

SPECIFICATIONS

End Style

PEX Press x ManaBloc® Port

Material

Polymer

Method of Manufacture

Molded

Nominal Size

1/2 in

Pressure Rating

160 psi

Series

Model V5613.1

Temperature Rating

180 deg F
