SPEARS

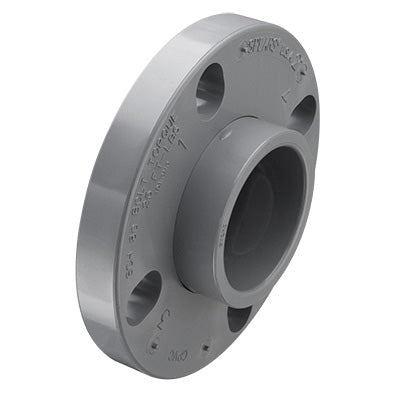

Multi-Bolt Pattern 2-Piece Pipe Flange - CPVC

Multi-Bolt Pattern 2-Piece Pipe Flange - CPVC

M854-020C

$14.13
$14.13 $59.25
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

DIMENSIONS

WEIGHT

0.87 lb

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

All thermoplastic flanges shall be produced from PVC Type I cell classification 12454 or CPVC Type IV cell classification 23447. Bolt hole patterns shall conform to ANSI/ASME B-16.5 CL 150. All flanges shall be constructed from materials certified for potable water use by NSF International. All 1/2 in through 16 in injection molded flanges and all fabricated flanges with steel rings shall be pressure rated to 150 psi for water at 73 deg F, as manufactured by spears manufacturing company.

SPECIFICATIONS

Bolt Circle Diameter

4-1/2 to 4-15/16 in

Bolt Hole Size

5/8 in

Connection Type

Socket

Dimensions

1-11/16 in

Domestic/Import

Domestic

Material

CPVC

Nominal Size

2 in

Number of Bolt Holes

4

Outside Diameter

6 in

Pressure Class

150 lb

Pressure Rating

150 psi

Type

Multi-Bolt Pattern 2-Piece
