KLEIN

Non-Contact Voltage Tester - 630 to 670 NM

Non-Contact Voltage Tester - 630 to 670 NM

NCVT-6



Regular price $46.19
Sale price $46.19 Regular price $38.49
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Non-contact Tester determines AC voltage in cables, cords, circuit breakers, switches, outlets, wires, as well as security, entertainment, communications, environmental control, and irrigation systems

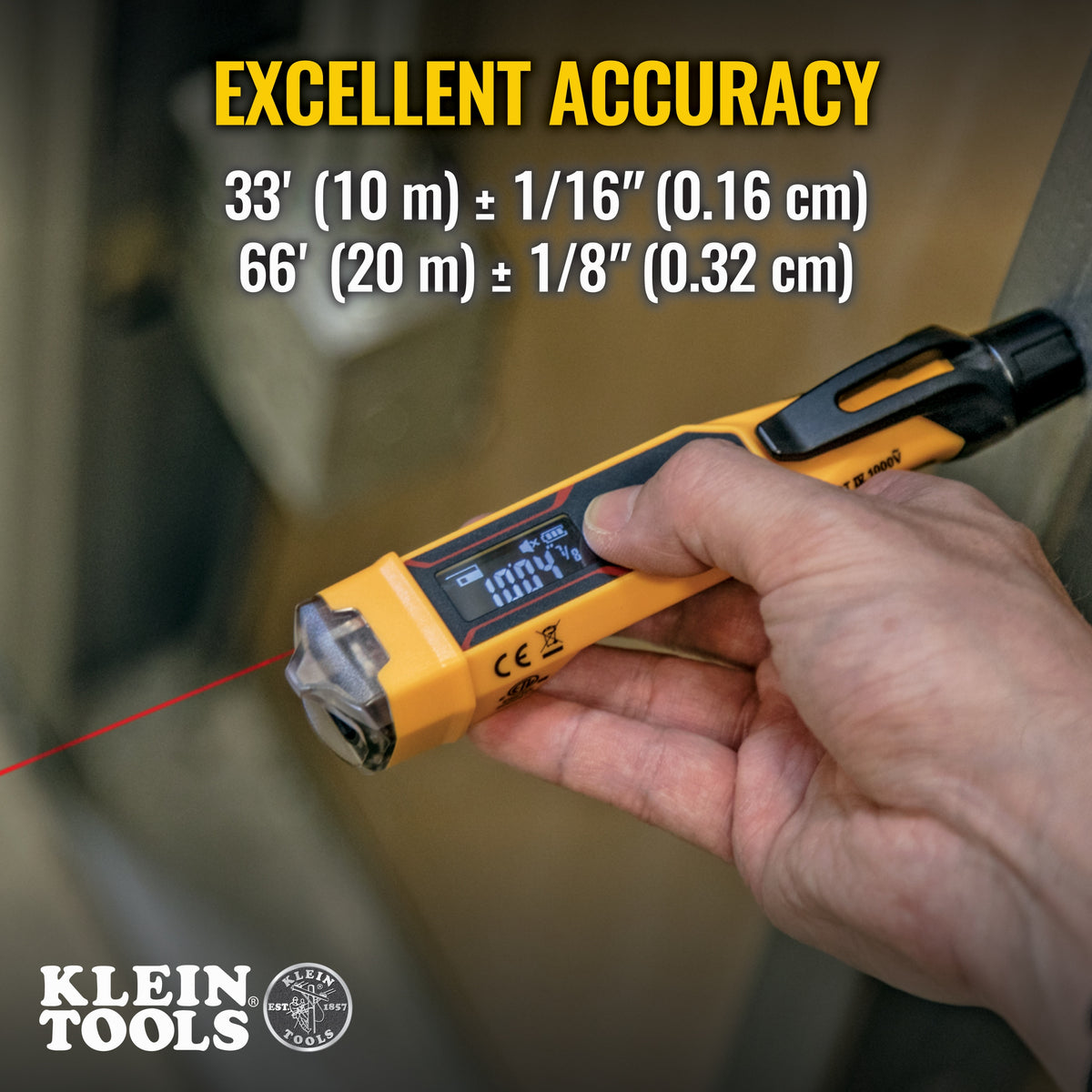

• Incorporates a 66-Foot (20 m) Laser Distance Meter that can measure in meters, inches in fractions or decimals, and feet in fractions or decimals, with accuracy up to 1/16 in (0.16 cm)
• High-visibility reverse contrast display for better viewing in low light conditions
• Laser Class II, 630 to 670nm, Maximum Power less than 1mW
• Simple-to-use intuitive interface, easy single-button changes between laser distance measurements and voltage detection
• Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
• Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
• Built to withstand a 6.6-Foot (2 m) drop
• Auto Power-Off conserves and extends battery life
• Screw-thread battery cap

DIMENSIONS

LENGTH

6.45 in

WIDTH

1.32 in

HEIGHT

1.21 in

WEIGHT

0.3 lb

WARRANTY

Limited

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

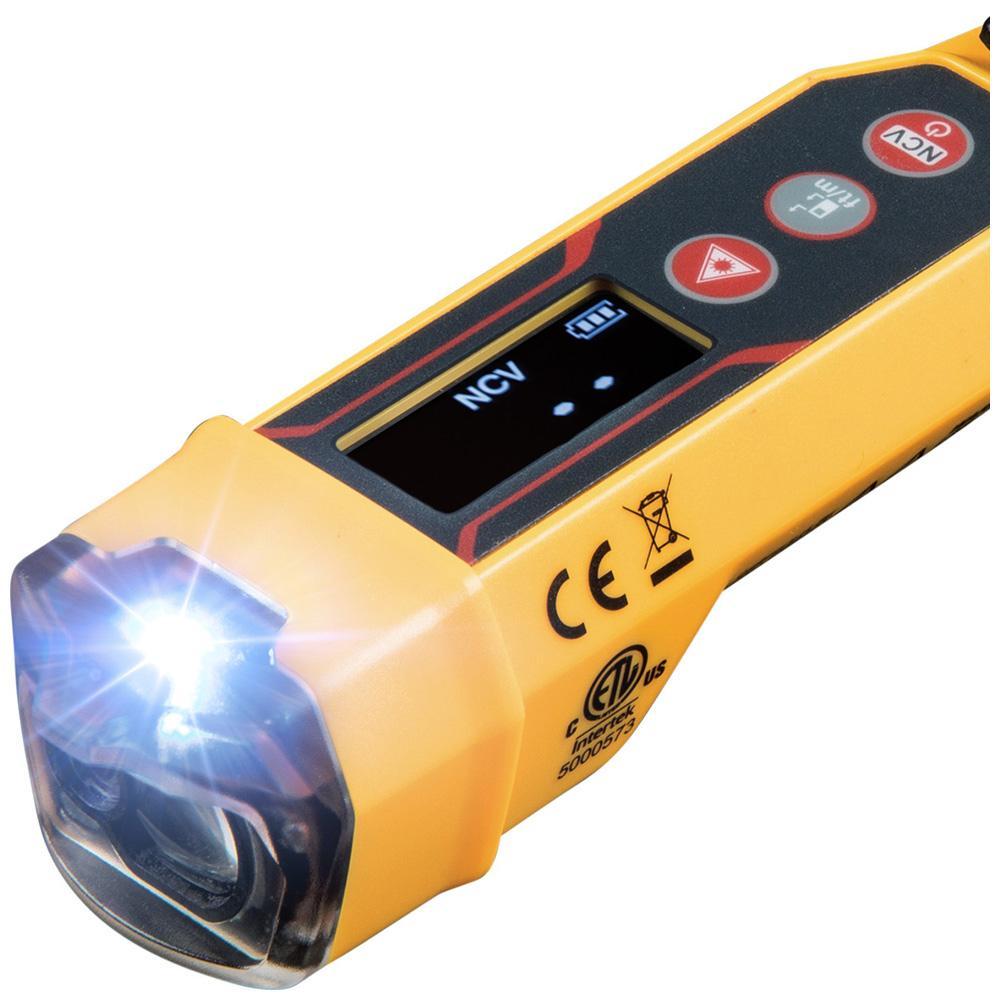

The Klein Tools NCVT-6 is a non-contact voltage tester (NCVT) with an integrated laser distance meter. It can detect voltage over the full-range from 12 to 1000 VAC and can measure distances from 2-Inch (51 mm) up to 66-Feet (20 m). The laser distance meter functions independently from the NCVT with a simple-to-use intuitive interface. Easy, single-button changes between voltage detection and laser distance measurements.


SPECIFICATIONS

Battery

AAA Alkaline 1.5 VDC

Dimensions

6.45 in L x 1.32 in W x 1.21 in H

Display Type

Reverse Contrast

Distance Range

66 ft

Enclosure Type

IP40

Environmental Conditions

Pollution Degree 2

Frequency Rating

50 to 500 Hz

Material

Plastic

Maximum Measurable Voltage

12 to 1000 V AC

Optical Power Range

<1 mW

Power Supply

(2) 1.5 V DC AAA Alkaline Batteries

Type

Non-Contact

Visibility

High

Wavelength

630 to 670 nm
