IDEAL

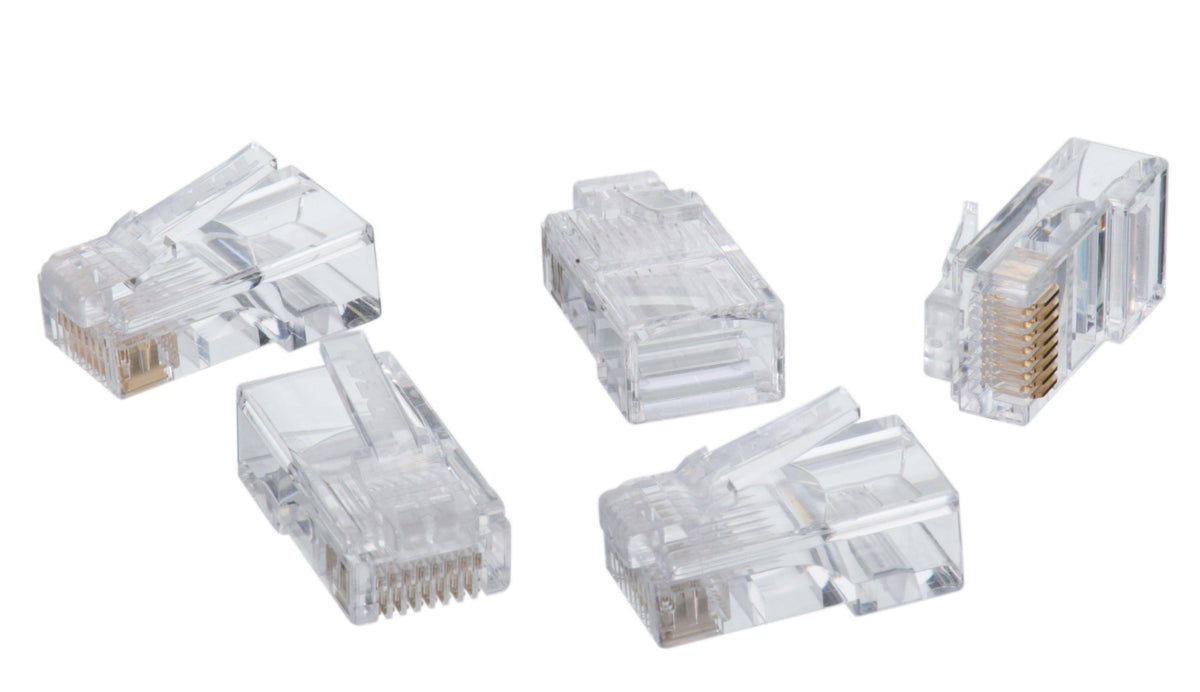

Non-Keyed Round Modular Plug - Solid Conductor

Non-Keyed Round Modular Plug - Solid Conductor

85-346

$16.58
$16.58 $12.10
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• 8 position, 8 contact RJ-45 modular plug for CAT5e, 100O balanced twisted pair 100 MHz cables
• 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
• Designed to work seamlessly with IDEAL Telemastercrimping tools
• Three prong contact design for use with solid or stranded 24-26 AWG insulated copper conductors

DIMENSIONS

LENGTH

5 in

WIDTH

3 in

HEIGHT

2 in

WEIGHT

0.2 lb

DOCUMENTS & RESOURCES

User Manual

PRODUCT OVERVIEW

CAT5e 8P8C (eight position/eight contact) modular plug connectors which support TIA/EIA standards for twisted pair cabling up to 100 MHz. IDEAL modular plugs are designed to work seamlessly with the IDEAL Telemaster and FT-45 series of modular plug crimp tools. Plugs are designed and manufactured to support all 100O cable wiring schemes including the widely used TIA-568A and TIA-568B configurations.

SPECIFICATIONS

Cable Type

Cat 5e/Cat 3

Conductor Size

AWG 24.00

Conductor Type

Solid

Dimensions

5 in L x 3 in W x 2 in H

Material

Plastic

Termination Type

Crimp

Type

8P8C Non-Keyed Round
