Item Status: Discontinued

Availability is limited to remaining stock.

HONEYWELL

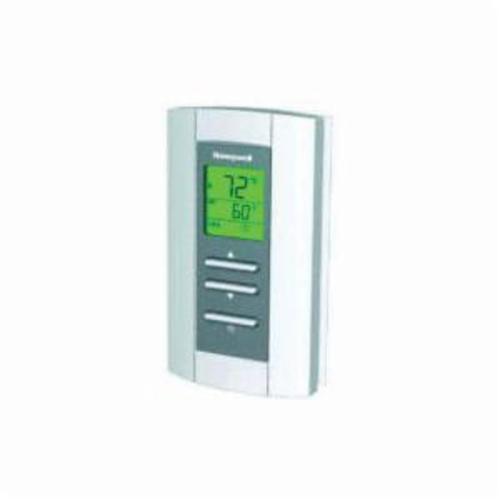

Non-Programmable Communicating Thermostat - Vertical

Non-Programmable Communicating Thermostat - Vertical

AQ1000TN2/U

$182.15
$182.15 $203.04
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

COMPLEMENTARY PRODUCTS

MORE PRODUCT INFORMATION

FEATURES

• 2-wire polarity-insensitive non-programmable network communicating thermostat
• User buttons feature liquid crystal display as well as outdoor, indoor and floor temperature displays
• Floor temperature sensing with minimum and maximum limits (when used with optional AQ12C20 Slab/Floor sensor ( sold separately))
• Selectable temporary and permanent backlight
• Wire-clamp screw terminals
• -58 to 149 deg F outdoor temperature display

DIMENSIONS

WIDTH

2.8 in

HEIGHT

4.6 in

WEIGHT

0.6 lb

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

Honeywell AQ1000TN2 thermostat controls the ambient air or floor temperature in hydronic heating applications. To provide zoning control, it communicates with and is powered by a Honeywell AQ2000 series zoning module.

SPECIFICATIONS

Control Range

-40 to 100 deg F

Differential

+/-1 deg F

Dimensions

4.6 in H x 2.8 in W x 1 in D

Display Type

LCD

Humidity Range

5 to 90% RH

Mounting Type

Vertical

Sensing Range

10 kOhm

Sensor Type

Thermistor

Terminal Designations

TH, Sensor

Type

Non-Programmable

User Interface

DIP Switch

Voltage Rating

24 V DC
