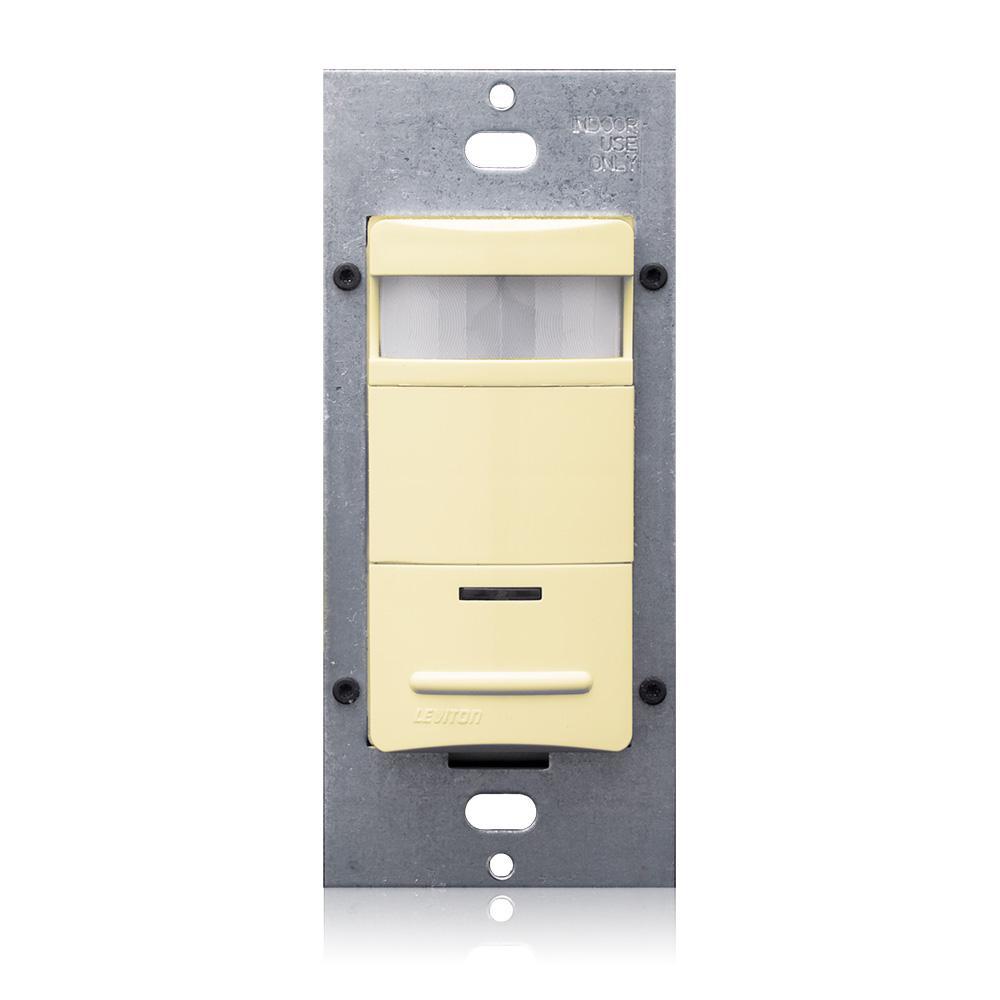

Occupancy Sensor - Ivory - Wall Mount

• Fits in standard wallbox and replaces 1-pole wall switch, gangable with other units
• Low profile design eliminates obtrusive scanning-device look
• Convenient pushbutton provides manual ON/Off light switching at any time
• Two dual element PIR sensors used to widen detection range
• Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive minor motion area where even slight body movements will be detected
• Vandal-resistant PIR lens
• Horizontal field-of-view may be adjusted between 180 and 60 deg of arc by using integral blinders located on either side of the lens, no masking tape required
• Manual On/auto Off mode for installations where manual On switching is required but auto Off switching is still desired for CEC title T24 energy savings
• To comply with T24, red LED indicator light flashes when sensor detects motion to verify detection is active
• Time delay adjustment for delayed Off time settings of 30 sec (for walking test), 10, 20 and 30 min, allows customized adjustments to maximum energy savings
