LEVITON MANUFACTURING CO

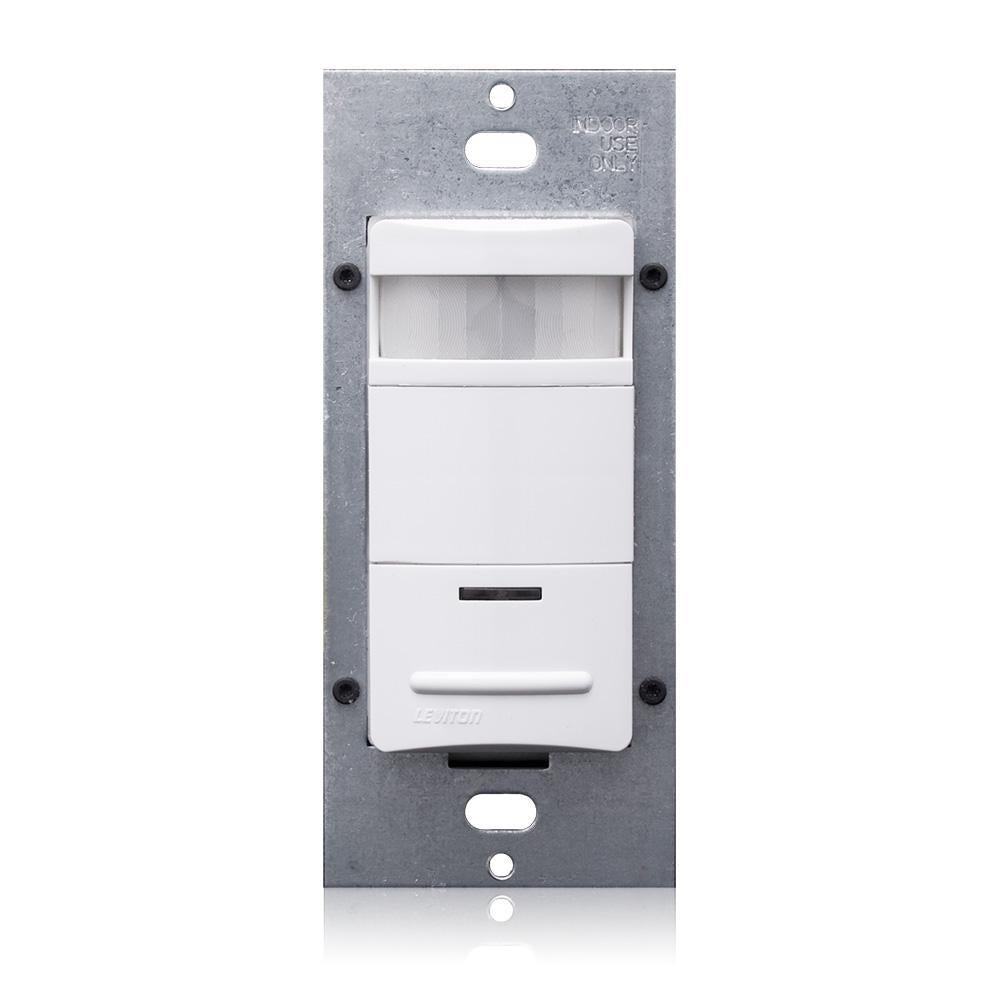

Occupancy Sensor - White - Wall Mount

Occupancy Sensor - White - Wall Mount

ODS10-IDW



Regular price $78.84
Sale price $78.84 Regular price $55.19
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

DIMENSIONS

WIDTH

1.75 in

HEIGHT

46 in

WEIGHT

0.32 lb

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


The ODS10 uses passive infrared (PIR) detection technology to monitor a room for occupancy through a segmented fresnel lens. This specialized lens divides the field-of-view into sensor zones. When a person passes into or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as there is an occupant moving through the sensor zones.


SPECIFICATIONS

Control Output

Manual On/Automatic Off

Coverage

2100 sq-ft

Dimensions

1.75 in W x 1.85 in D x 46 in H

Lamp Type

Fluorescent/Incandescent

Mounting Type

Wall

Power Rating

100/250 mW

Response Frequency

50/60 Hz

Sensor Type

Passive Infrared

Temperature Rating

0 to 50 deg C

Time Delay

30 s to 30 min

Type

1-Pole

Viewing Angle

180 deg

Voltage Rating

120/230/277 V AC
