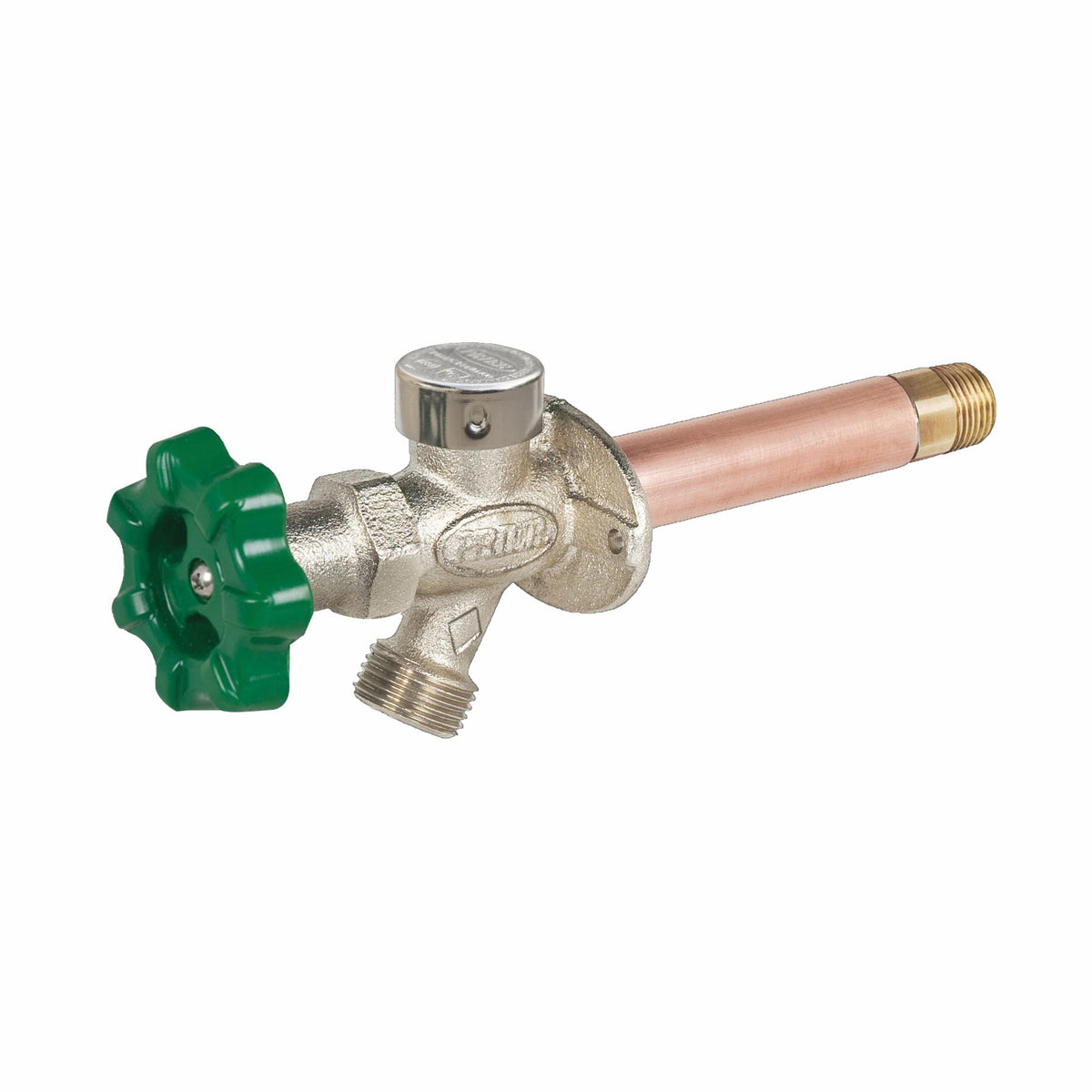

P-164 - 1/2" Freezeless Wall Hydrant - P-164D12
P-164 - 1/2" Freezeless Wall Hydrant - P-164D12
P-164D12
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• P-164 features a soft grip coated cast aluminum operating handle for easy operation in wet conditions or cold weather
• Anti-siphon vacuum breaker with backflow check valve
• Aluminum vacuum breaker cap with increased durability
• Integral cast flange with built-in drainage pitch
• Enclosed screw holes easily secure mounting screws
• Made of solid brass body, valve stem cap, seat and stem ends, stainless steel seat washer screw, handle screw, durable ACME threads secure stem at seat end
• Satin nickel plated body maintains attractive finish
• Lock shield cap for stronger valve design
• AFG Teflon® with graphite packing for easy maintenance
• Standard "OO" size seat washer
DIMENSIONS
DIMENSIONS
|
WEIGHT |
1.79 lb |
|---|
PRODUCT OVERVIEW
The PRIER P-164 has all the characteristics of the historically proven PRIER wall hydrants with the added benefit of an easy operating quarter-turn handle. The P-164 features a soft grip operating handle for easy operation in wet conditions or cold weather. It also features a compression type seal, not the brittle plastic discs available in competitors products. PRIER P-164 provides a year round source of water to areas of structures that are subject to freezing temperatures. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing.
SPECIFICATIONS
|
Dimensions |
3/4 in L Inlet |
|---|---|
|
End Style |
MNPT x C |
|
Handle Type |
Soft-Grip Quarter Turn |
|
Material |
Brass |
|
Nominal Size |
1/2 in |
|
Pressure Rating |
125 psi |
|
Series |
P-164 |
|
Temperature Rating |
120 deg F |
|
Type |
Freezeless |

$49.99
