Pressure Regulating Valve - 2"

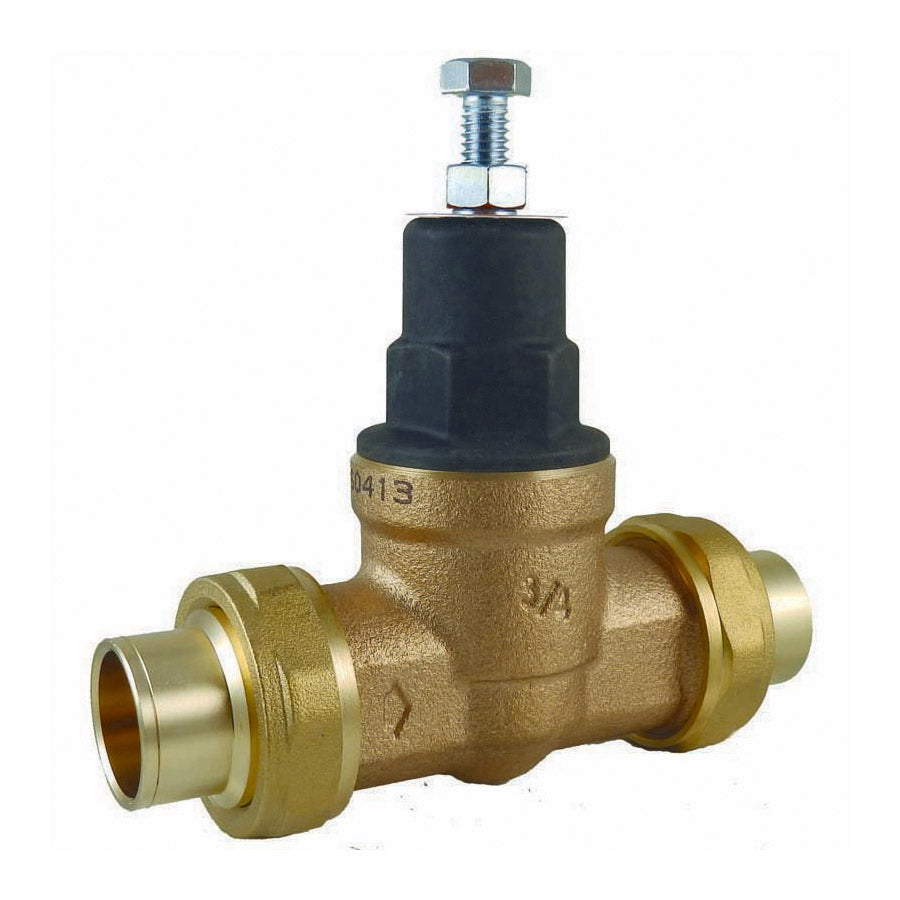

The EB-45 Series is a lead-free1 half-cartridge based pressure reducing and regulating valve with a bronze body. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge based valve. The EB-45 is assembled using modular construction methods and features end connections threaded for both FIP and union in 1/2 in through 2in sizes. A connection for a pressure gauge is also available for 3/4 in and 1in models. The EB-45 is intended for use where supply line pressure does not exceed 300 psi (400 psi 1/2in, 3/4in, and 1in). The EB-45 pressure regulators are supplied by the factory with a standard delivery Setting of 45 psi. The outlet pressure can be adjusted from 10-70 psi without changing the spring. This regulator is suited for either cold or hot (to 180 degF) water service.
