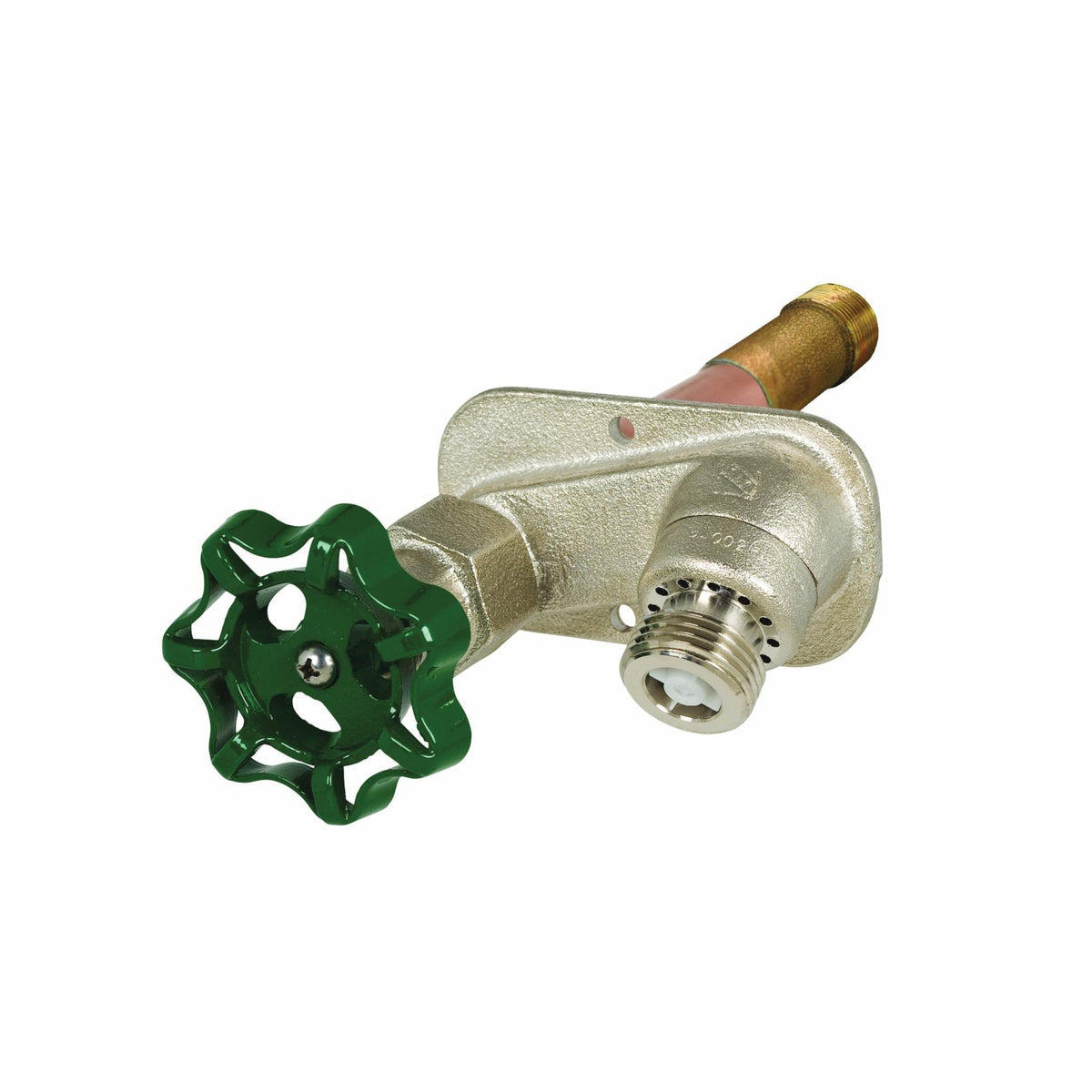

Prier® C-434T10 Heavy Duty Wall Hydrant With Integral P-004 Vacuum Breaker, 3/4 x 1/2 in Nominal, MNPT x FNPT End Style, Domestic

Prier® C-434T10 Heavy Duty Wall Hydrant With Integral P-004 Vacuum Breaker, 3/4 x 1/2 in Nominal, MNPT x FNPT End Style, Domestic

C-434T10



Regular price $78.63
Sale price $78.63 Regular price $128.15
Shipping calculated at checkout.
Loading availability...
Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Drains automatically with hose attached
• Two backflow check valves and a anti-siphon vacuum breaker allows ASSE 1019 and 1052 approvals
• Satin nickel finish provides years of protection
• Integral cast flange with built-in drainage pitch
• Powder coated metal handle
• 5 full thread hose connection
• Enclosed screw holes and self-aligning lug for easy installation
• Solid brass body, valve stem cap and stem ends for long life
• Self-draining, anti-siphon wall hydrant

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


The PRIER C-434 provides a year round source of water to areas of structures that are subject to freezing temperatures. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing. To assure freeze protection, the hydrant will drain even with the hose attached and under pressure. The C-434 has all of the features of the historically proven PRIER C-134, with additional protection of a self-draining anti-siphon backflow check valve. The vacuum breaker/backflow preventor provides protection against cross-connection of the potable water supply, while venting to eliminate any vacuum. No special installation tools are required. The C-434 is available in stock lengths from 1-1/2 to 24 in, with longer lengths available upon request.
