WEBSTONE

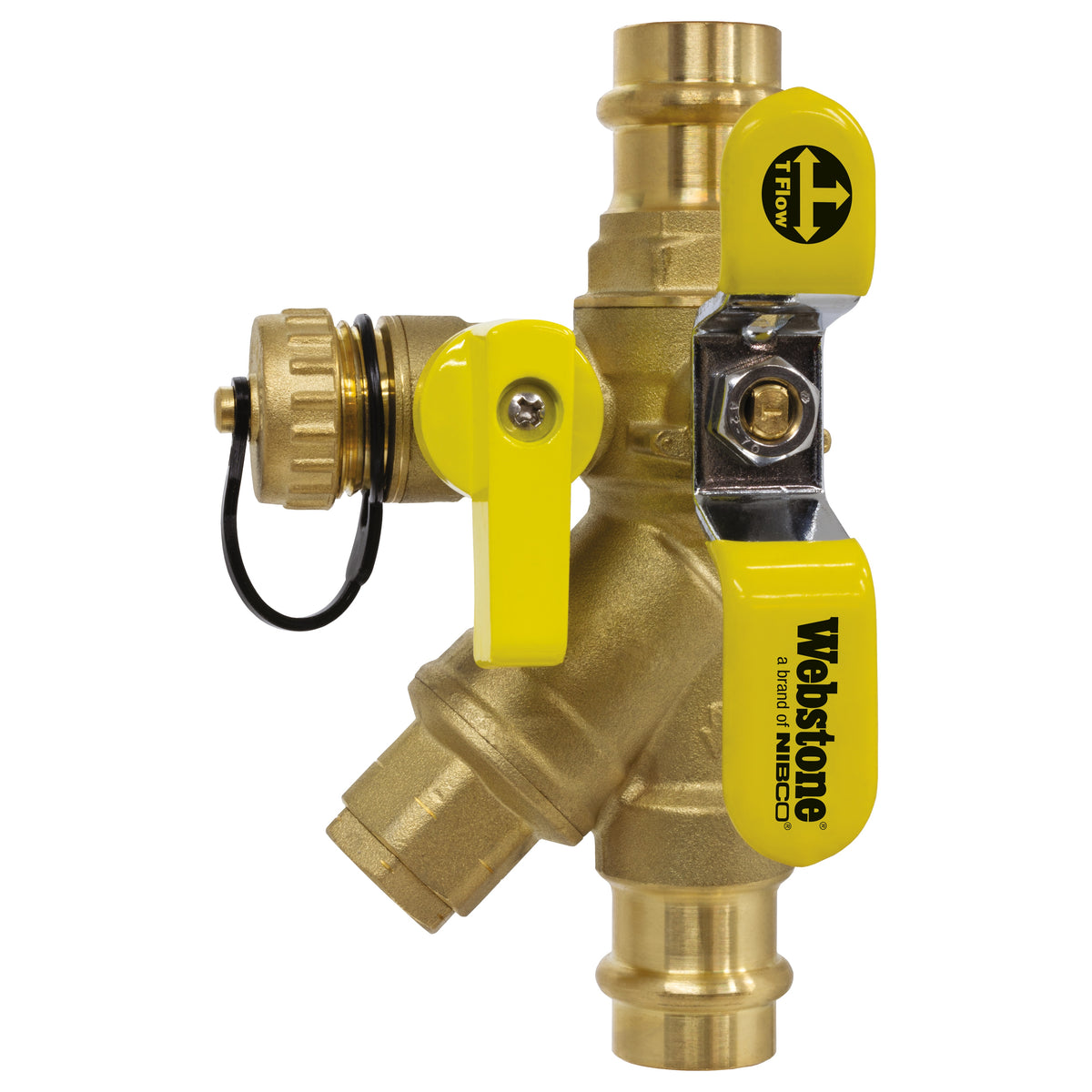

Pro-Pal 8156W - X156 Strainer - Forged Dzr Brass - Press

Pro-Pal 8156W - X156 Strainer - Forged Dzr Brass - Press

H-81565W


Inlet to Outlet Length

Regular price $231.52
Sale price $231.52 Regular price $352.80
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Eliminates assemblies needed to isolate, drain and strain any portion of a piped system
• Integrated Y-strainer saves space and protects system from debris
• Creates cleaner-looking, moreefficient installations
• Replaceable screen, 20 or 40 mesh options
• O-ring sealed and plugged strainerport for easy removal of filter and O-ring sealed and plugged blow down port for easy installation of a drain valve
• Suitable for vertical or horizontal installation
• Saves 63 min
• Replaces 8 Components
• Adjustable Packing Gland

WARRANTY

Limited Lifetime

PRODUCT OVERVIEW


Pro-Pal valves are your best choice for efficient installation and system operation, and for helping to control costs. Pro-Pal Valves combine commonly used components into a single forged brass alternatives that will save time and space in any installation. Instead of just building your next piping system, innovate it with Pro-Pal Series Valves. Protect your system from damaging debris with an integrated strainer that collects loose particles and separates them from the system flow. The multi-function ball valve and hi-flow hose drain also allows for quick and easy service. Isolate, drain or flush from either side of the ball with a simple turn of the handle. Designed for use with water, oil, glycol mix in residential or commercial plumbing and heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.


SPECIFICATIONS

Actuator Type

Handle

Ball Material

HCP Brass

Body Material

Forged DZR Brass

Domestic/Import

Import

End Style

Press

Inlet to Outlet Length

7.78 in

Media

Glycol Mixture/Oil/Water

Nominal Size

1-1/4 in

Port Type

Full

Pressure Rating

250 psi CWP

Series

Pro-Pal® 8156W

Softgoods Material

EPDM/PTFE

Temperature Rating

200 deg F

Top to Inlet Center

4-1/2 in

Trim Material

Brass/PTFE
