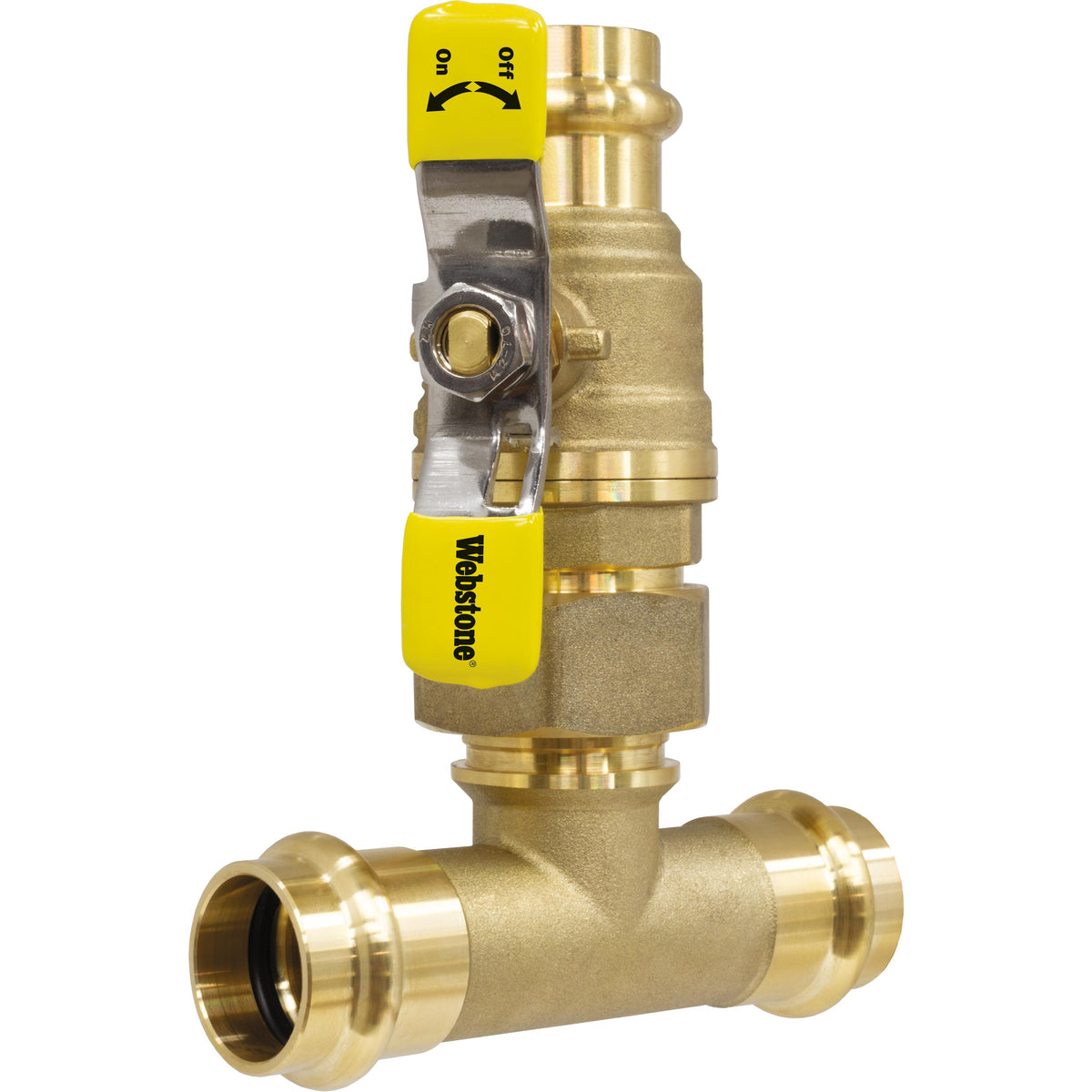

Pro-Pal H-X371W Series - 3/4 x 1-1/4" H-X371 Ball Valve

Pro-Pal H-X371W Series - 3/4 x 1-1/4" H-X371 Ball Valve

H-83713W-T114



Regular price $64.82
Sale price $64.82 Regular price $98.77
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Combines a Union Tee Fitting with a Ball Valve
• Eliminate the Need for Multiple Fittings
• Integrated Union Fitting Adds Versatility and Simplifies Installation
• Saves 36 min
• Replaces 5 Components
• Eliminates 4 Leak Paths
• This valve is actuated by a blowout proof stem

DIMENSIONS

WEIGHT

1.85 lb

PRODUCT OVERVIEW


Pro-Pal valves are your best choice for efficient installation and system operation, and for helping to control costs. Pro-Pal Valves combine commonly used components into a single forged brass alternatives that will save time and space in any installation. Instead of just building your next piping system, innovate it with Pro-Pal Series Valves. Pro-Pal T-Union Ball combines a union tee fitting with a full port ball valve, replacing multiple components needed to change the direction or to install a branch off a line. Designed for use with water, oil, glycol mix in residential or commercial plumbing and heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.


SPECIFICATIONS

Actuator Type

Stem

Ball Material

DZR Brass

Body Material

Brass

Domestic/Import

Import

End Style

Press Valve x Press Run

Inlet to Outlet Length

5.87 in

Media

Glycol/Oil/Water

Nominal Size

3/4 x 1-1/4 in

Orifice Size

3/4 in

Port Type

Full

Pressure Rating

250 psi CWP

Series

Pro-Pal® H-x371W Series

Softgoods Material

EPDM/PTFE

Temperature Rating

200 deg F

Top to Inlet Center

1.69 in
