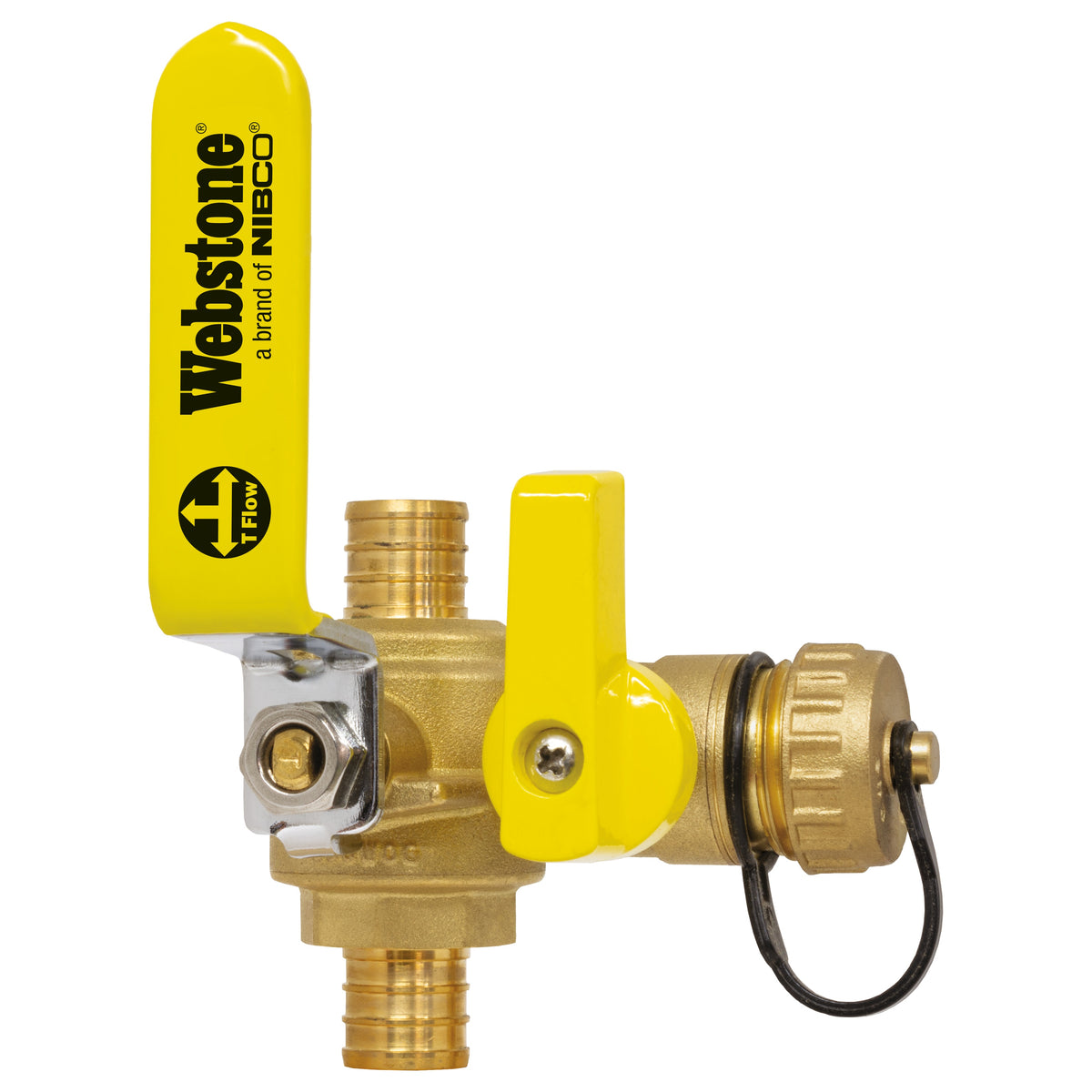

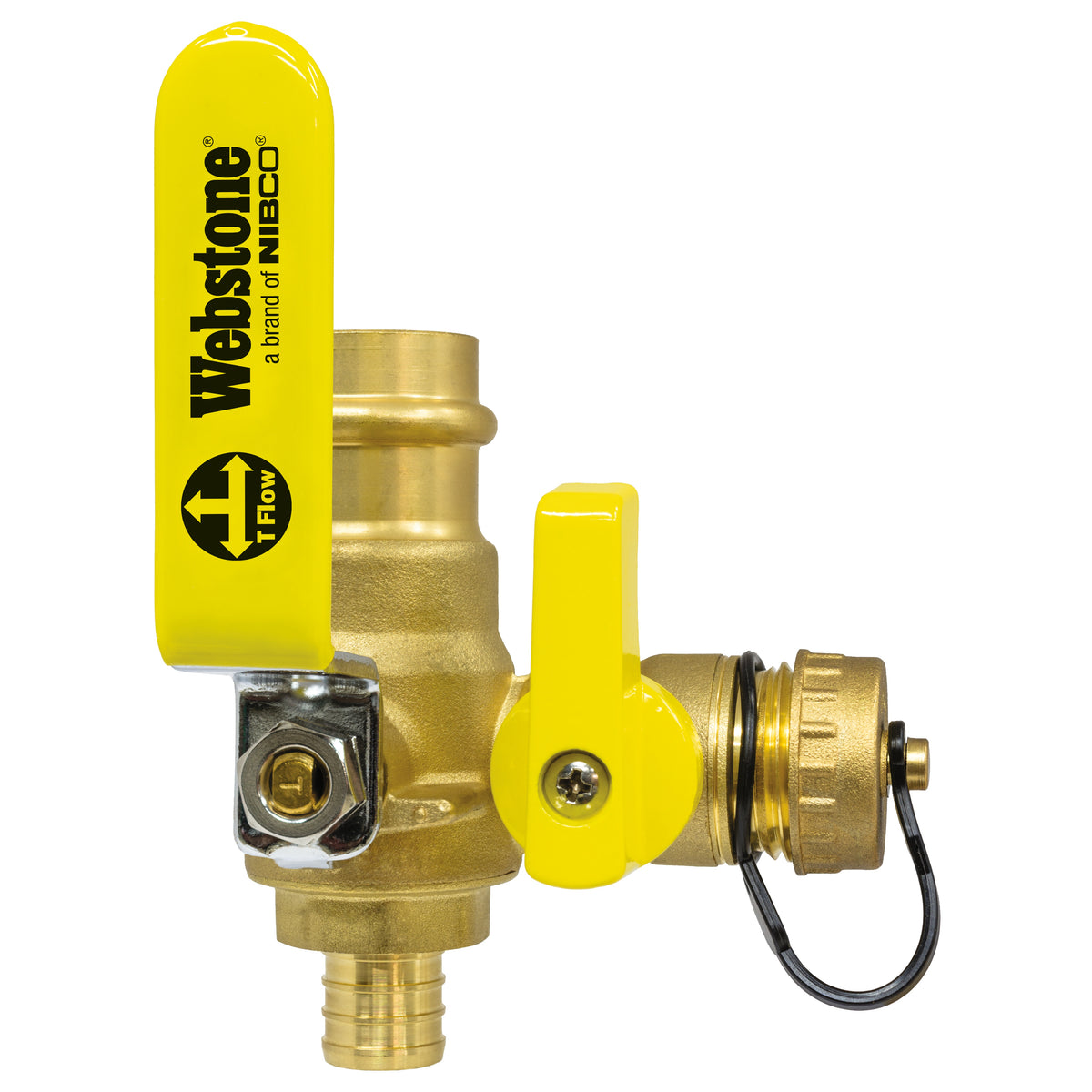

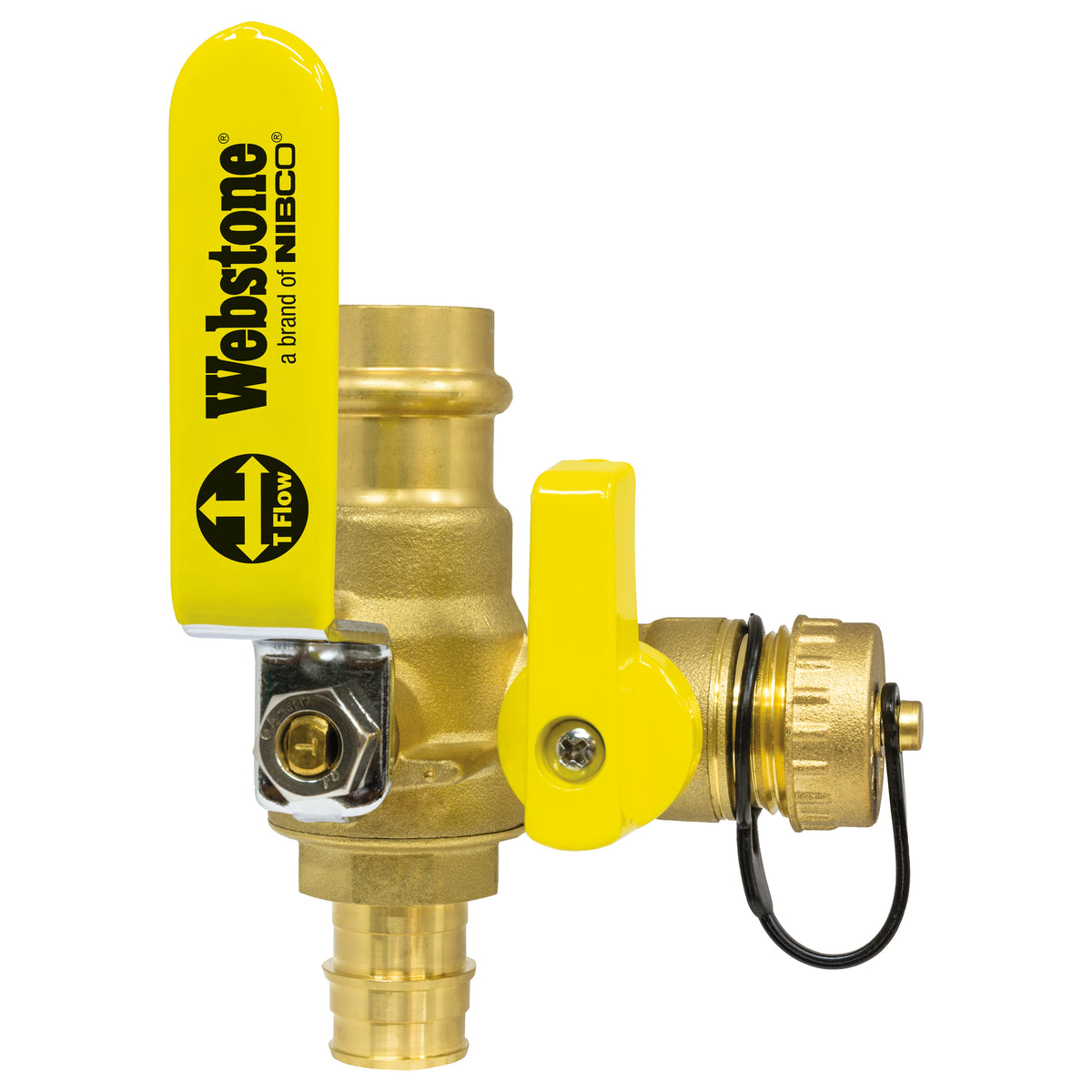

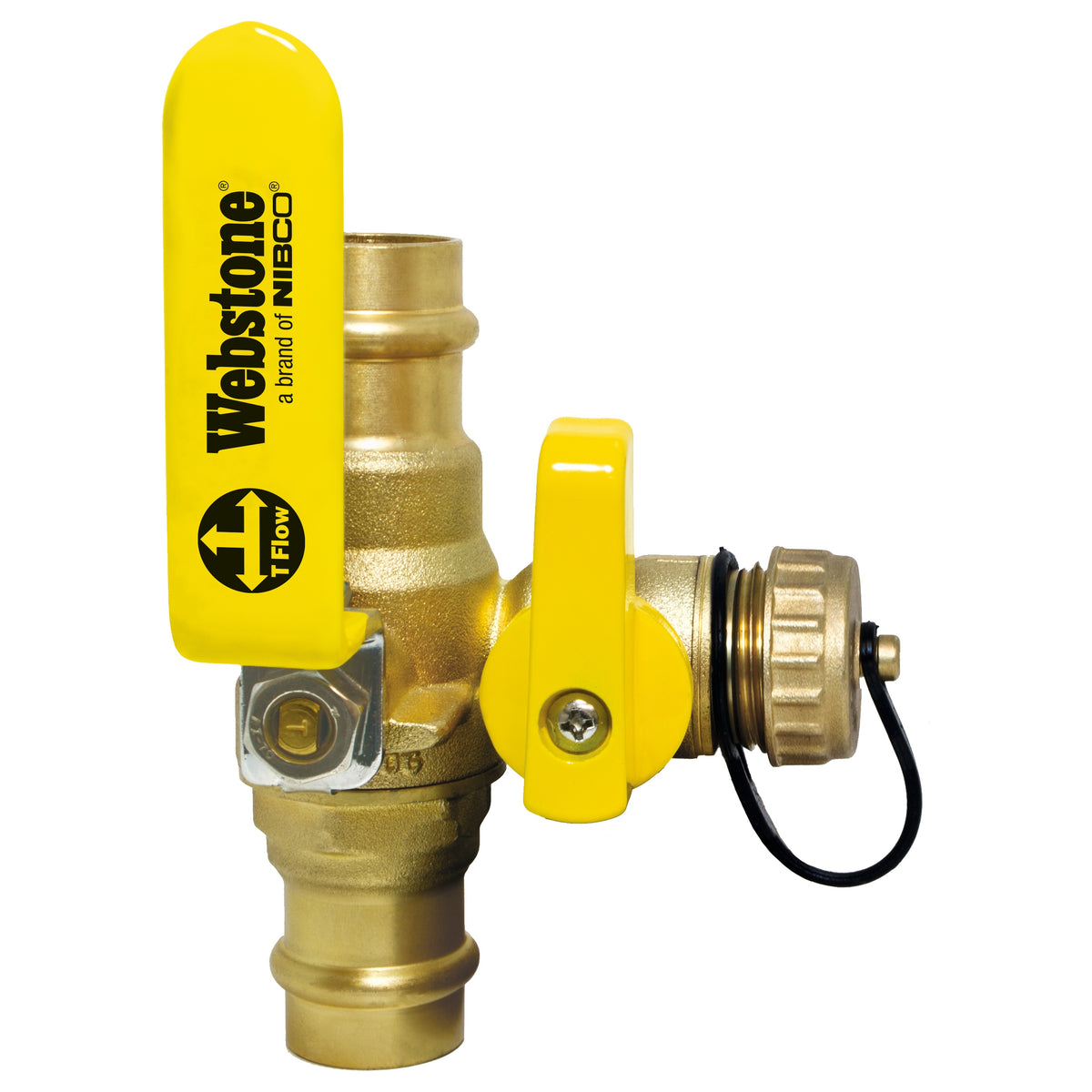

Pro-Pal - X061 Ball Valve - Brass - 8161

Name: Pro-Pal - X061 Ball Valve - Brass - 8161
Brand: WEBSTONE
SKU: H-81613W
Price: 76.26 USD
Availability: InStock

H-81613W

Inlet to Outlet Length 3.86 in 3-3/4 in 5-7/8 in 7 in 2-1/2 in

$76.26

$76.26 ~~$106.00~~

Shipping calculated at checkout.

How you'll get this item:

MORE PRODUCT INFORMATION

FEATURES

• Eliminates Assembly Needed to Isolate and Drain Any Portion of a Piped System
• Exclusive Adjustable Flow Path Allow for Draining From Either Side of the Ball
• Saves 27 min
• Replaces 4 Components
• This valve is actuated by a blowout proof stem

DIMENSIONS

LENGTH	3.15 in
WIDTH	4.49 in
HEIGHT	3.27 in

WARRANTY

Limited Lifetime

DOCUMENTS & RESOURCES

Specification Sheet

Installation Instructions

User Manual

Warranty Information

Product Brochure

PRODUCT OVERVIEW

Pro-Pal valves are your best choice for efficient installation and system operation, and for helping to control costs. Pro-Pal Valves combine commonly used components into a single forged brass alternatives that will save time and space in any installation. Instead of just building your next piping system, innovate it with Pro-Pal Series Valves. Designed for use with water, oil, glycol mix in residential or commercial plumbing and heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.

SPECIFICATIONS

Actuator Type	Reversible Handle
Ball Material	Brass
Body Material	Brass
Domestic/Import	Import
End Style	Pro-Connect™ Press x F1807 PEX
Inlet to Outlet Length	3.86 in
Media	Gas/Oil/Water
Nominal Size	3/4 in
Port Type	Full
Pressure Rating	250 psi
Series	8161 Pro-Pal®
Softgoods Material	EPDM
Temperature Rating	250 deg F
Top to Inlet Center	2.61 in
Trim Material	Brass Stem and PTFE Seat
