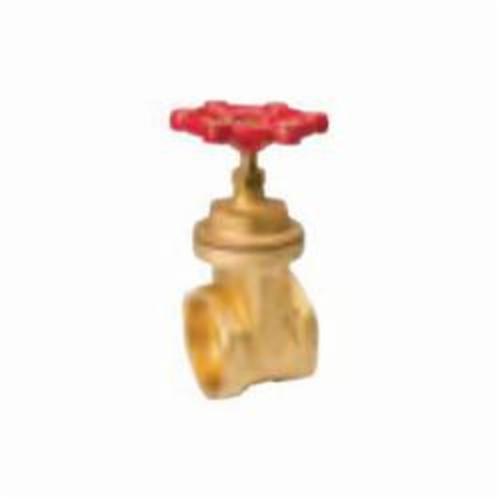

Proline - 3" Gate Valve - Brass - IPS
Proline - 3" Gate Valve - Brass - IPS
100-010
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Full port for maximum flow rate
• Non-rising stem for limited-space operation
• Six-point cast-iron handle
• Forged brass construction for quality and dependability
• Brass wedge disk
• Not for potable water
DIMENSIONS
DIMENSIONS
|
WEIGHT |
8.9 lb |
|---|
WARRANTY
WARRANTY
Limited
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
ProLine™ Series Plumbing Valves provide trusted performance for a variety of residential, commercial and industrial flow control applications including use with steam, water, oil or compressed air. These quality valves include hose bibbs, gate valves, stop and waste valves and check valves, as well as a variety of specialty valves. Many valves are offered in either brass or plastic materials. Select styles of gate valves, boiler drains, stop and waste valves and other items are also available in either a heavy-duty or standard-quality version.
SPECIFICATIONS
|
Body Material |
Brass |
|---|---|
|
End Style |
IPS |
|
Inlet to Outlet Length |
3.82 in |
|
Media |
Gas/Oil/Water |
|
Nominal Size |
3 in |
|
Port Type |
Full |
|
Pressure Rating |
200 psi WOG/125 psi WSP |
|
Series |
ProLine™ |
|
Top to Inlet Center |
8.9 in |

$65.93
