EATON

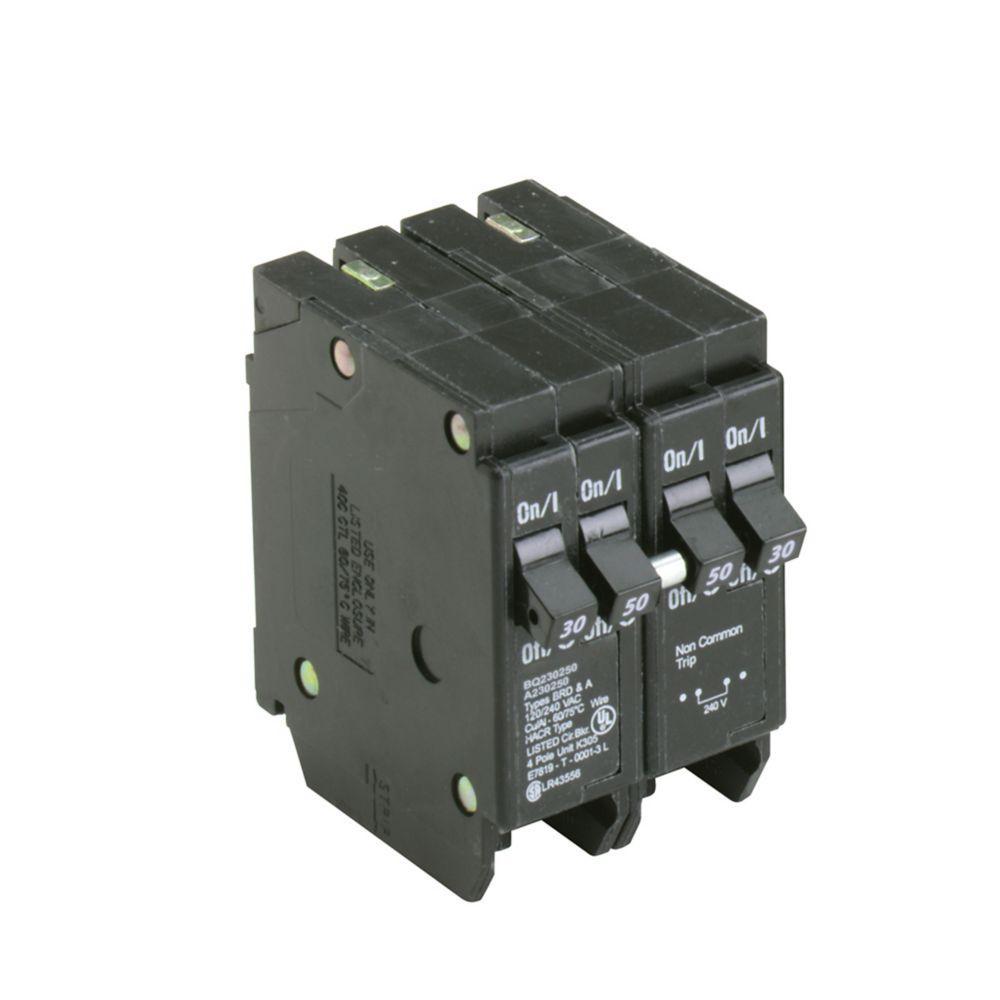

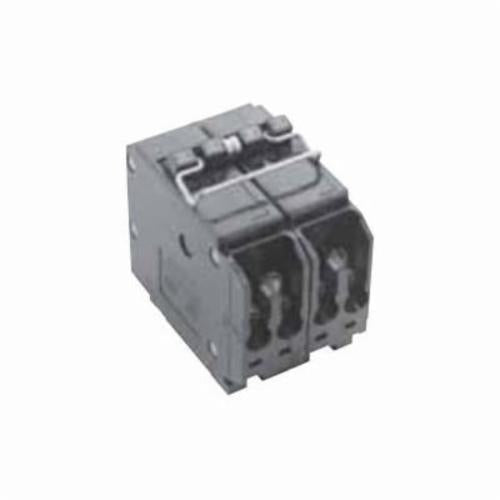

Quadplex - Type Bq Molded Case Circuit Breaker - Plug-On

Quadplex - Type Bq Molded Case Circuit Breaker - Plug-On

BQ230250

$39.00
$39.00 $24.33
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• and AF/GF designs
• Short-body design maximizes your space inside the loadcenter
• creating additional wire-way and gutter space for ease of installation
• Easy to read trip codes through improved LEDs and a clear test button increases your troubleshooting efficiency
• Improved AFCI and GFCI algorithms significantly reduce nuisance tripping
• resulting in less call backs

DIMENSIONS

LENGTH

3 in

WIDTH

2 in

HEIGHT

3 in

WEIGHT

2.35 lb

DOCUMENTS & RESOURCES

Specification Sheet
Warranty Information
Product Brochure

PRODUCT OVERVIEW

Eatons BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

SPECIFICATIONS

Actuator Type

Handle

Amperage Rating

30 to 50 A

Connection Type

Line/Load Lug

Dimensions

3 in L x 2 in W x 3 in H

Interrupt Rating

10 kA

Mounting Type

Plug-On

Number of Poles

4

Phase

1

Series

Quadplex

Temperature Rating

60 to 75 deg C

Trip Type

Thermal Magnetic

Type

Type BQ

Voltage Rating

120/240 V AC

Wire Size

14 to 4 AWG
