Item Status: Discontinued

Availability is limited to remaining stock.

HALO

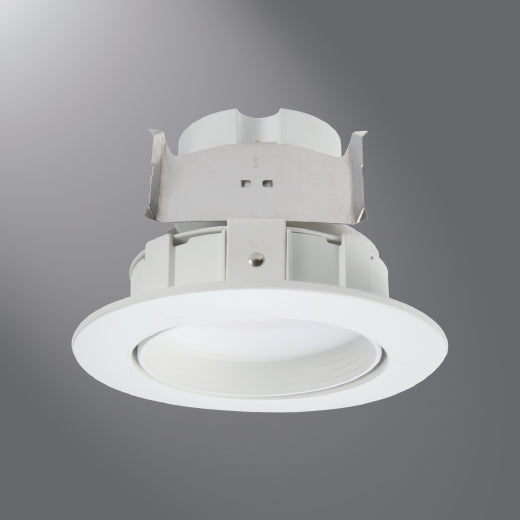

RA4 - Aperture All Purpose Integrated Retrofit Module

RA4 - Aperture All Purpose Integrated Retrofit Module

RA4069S1EWH

$29.05
$29.05 $20.90
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Adjustable gimbal offers 35 deg tilt and up to 360 deg rotation
• Select from 5 CCTs via switch - 2700 K, 3000 K, 3500 K, 4000 K, 5000 K CCT
• Use with 4 in housings with screwbase adapter
• Dimmable down to 5%
• Friction blade mounting

DIMENSIONS

HEIGHT

3.33 in

WEIGHT

0.98 lb

WARRANTY

5 years Limited

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

The Halo RA4 seleCCTable™ LED adjustable gimbal is a complete LED baffle trim module for 4 in aperture recessed downlights. It is suitable for new construction, remodel and retrofit installation. Using the CCT selectable switch users can chose between 5-different color temperatures. The RA4 seleCCTable™ gimbals feature adjustment of 35 deg tilt and up to 360 deg rotation.

SPECIFICATIONS

Amperage Rating

0.058 A

Ballast Type

Integral Dimming

Color Rendering Index (CRI)

93

Color Temperature

3000 K

Dimensions

5.13 in Dia x 3.33 in H

Lamp Base Type

E26

Lamp Wattage

7 W

Lens Type

Regressed Convex Diffused Polycarbonate

Light Color

Soft White

Light Output

87.9 Lumens/W

Lumens

615 Lumens

Mounting Type

Ceiling

Number of Lamps

1

Recessed Trim Type

Adjustable Gimbal/Matte White Regressed Baffle

Series

RA4
