Item Status: Discontinued

Availability is limited to remaining stock.

SQUARE D

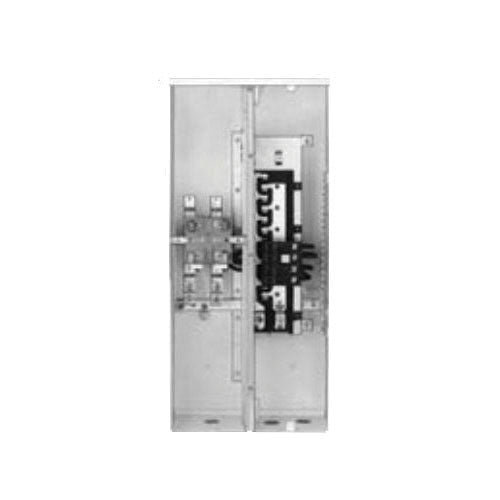

Rainproof Combination Service Entrance Meter Main - Surface

Rainproof Combination Service Entrance Meter Main - Surface

SC816D150C

$406.44
$406.44 $242.49
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

COMPLEMENTARY PRODUCTS

MORE PRODUCT INFORMATION

FEATURES

• This single compact solution provides a time and space saving solution for contractors and installers
• CSED integrate meter socket that, a main disconnect and load center into one compact design

DIMENSIONS

WEIGHT

51.97 lb

WARRANTY

18 months

DOCUMENTS & RESOURCES

Specification Sheet
User Manual
Drawings

PRODUCT OVERVIEW

The Square D® Homeline® Load Centers and Combination Service Entrance Devices, SC816D150C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM ring type Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior dual main service disconnects (feed-thru lugs on meter mains only).

SPECIFICATIONS

Amperage Rating

150 A

Cover Type

Ring

Feed Type

Overhead/Underground

Hub Size

A/A-L

Mounting Type

Surface

Terminal Type

Line/Lug

Type

8-Space 16-Circuit All-In-One Field Installed Rainproof

Voltage Rating

120/240 V AC

Wire Size

6 AWG to 300 kcmil, 12 to 1/0 AWG
