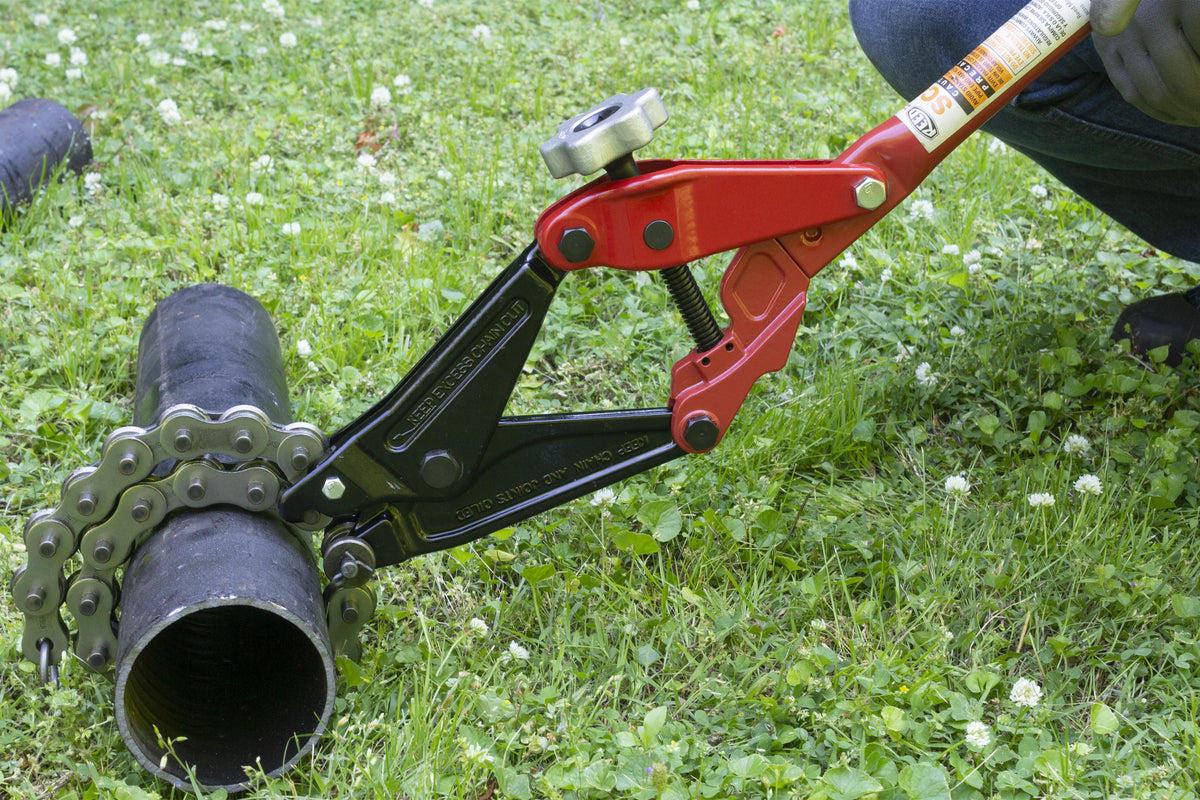

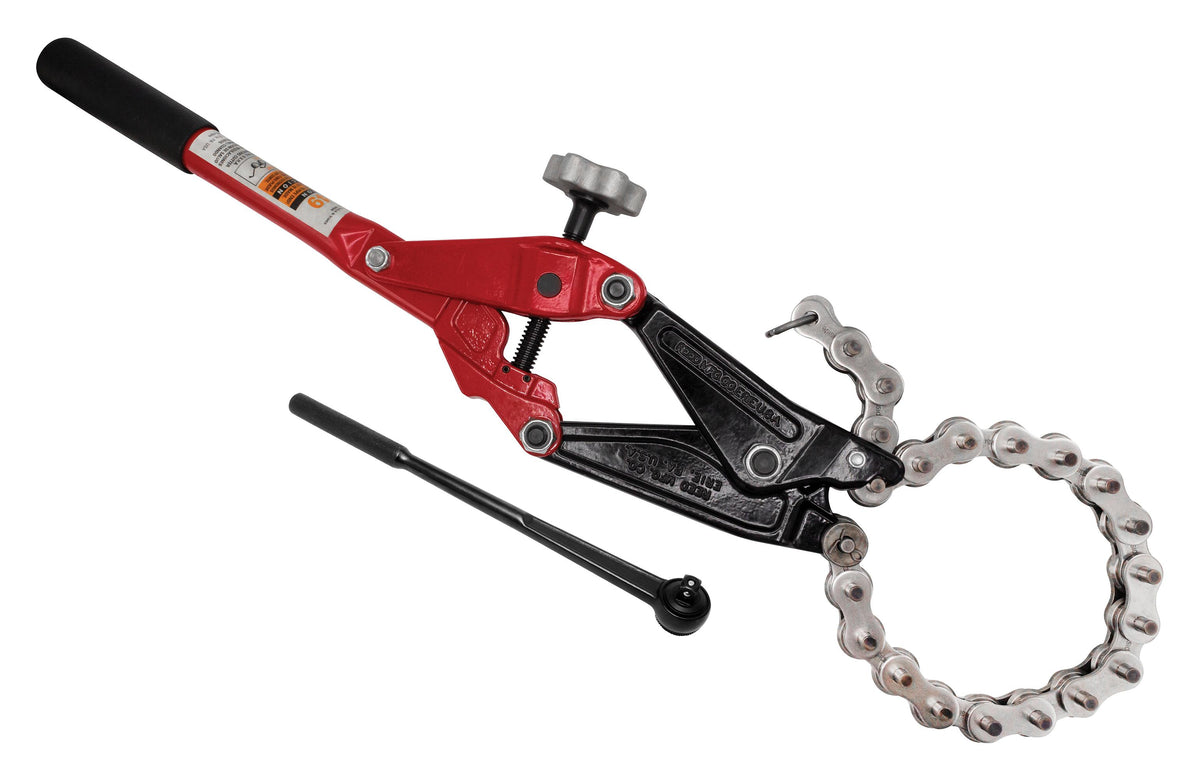

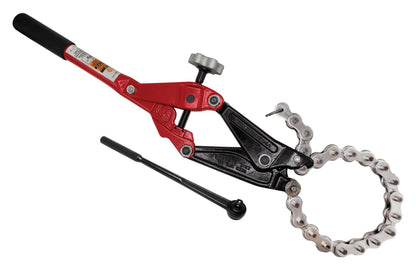

Ratchet Soil Pipe Cutter - 1-1/2 to 6"
Ratchet Soil Pipe Cutter - 1-1/2 to 6"
SC49-6
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• SC49 ratchet-style soil pipe cutter applies cutting force close to the pipe, enabling low-clearance operation ideal for tight spaces and repair work
• Uniform, 360 pressure around the pipe produces clean, controlled snaps using a ratchet wrench drive
• Cuts cast iron soil pipe (including no-hub), concrete pipe and clay pipe, distributing force evenly for consistent results

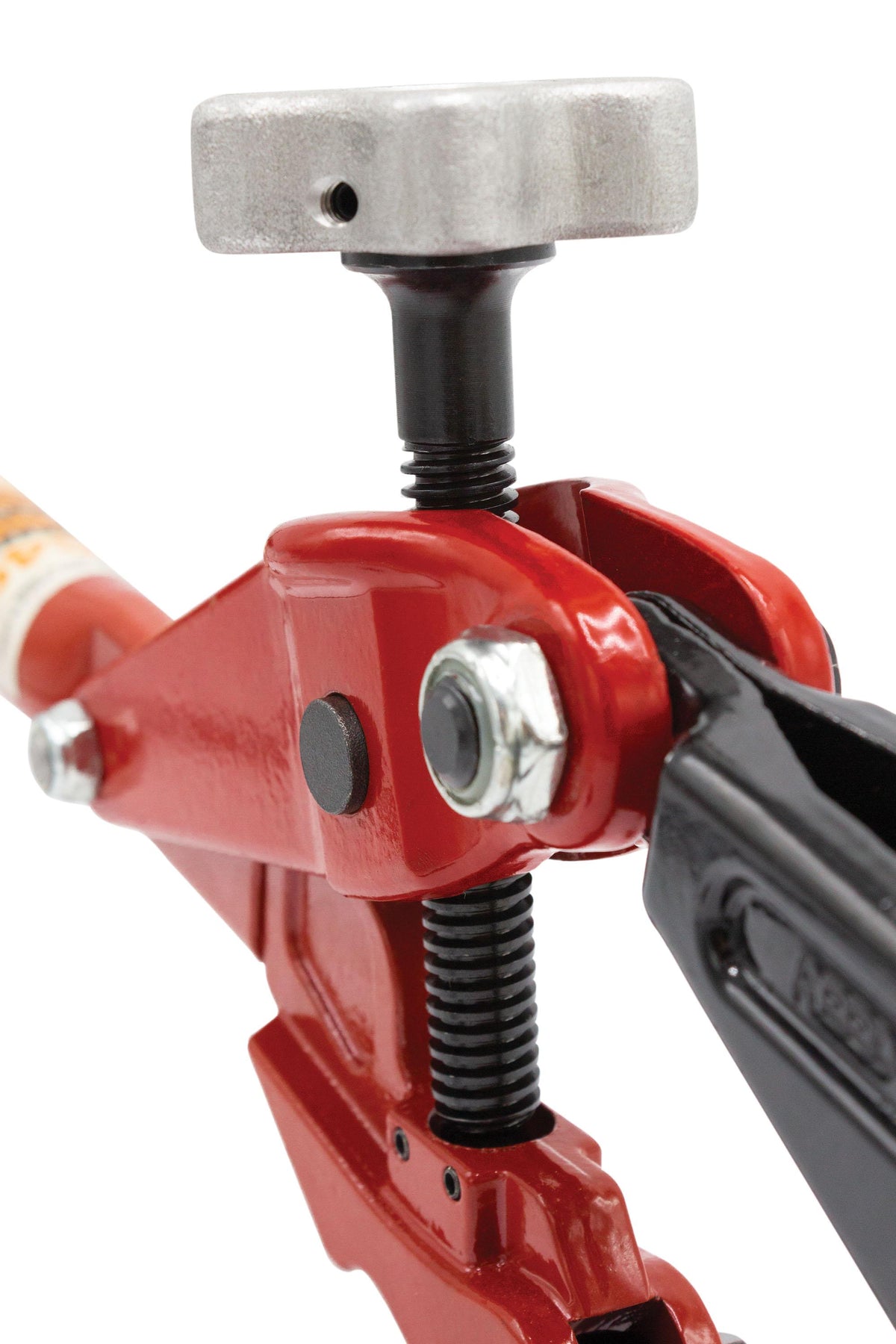

• Captured pressure screw helps prevent thread damage and stripping, improving durability and tool life
• Quick setup and compact design support efficient cutting in confined jobsite conditions
DIMENSIONS
DIMENSIONS
|
LENGTH |
26 in |
|---|---|
|
WEIGHT |
20 lb |
WARRANTY
WARRANTY
Lifetime
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
The fastest way to cut cast iron soil pipe, clay pipe, and small diameter concrete pipe is with a chain soil pipe cutter. Great for gray water applications! REED has improved the original design by providing stronger jaws and more durable adjusting screws which are interchangeable with the original tools. REED soil pipe cutters are available in a single stroke SC59 model and a ratcheting SC49 model for close quarter work. Multiple use 1/2" ratchet wrench ships with SC49 models. No-Hub® Roller Kit is standard on all models. For cutting ductile iron pipe, REED recommends Hinged Cutters™ or Low Clearance Rotary™ cutters. To cut cement lined ductile or ceramic lined ductile, use REED Universal Pipe Cutter (UPC) with the blade for cast iron and ductile iron pipe. NOTE: Jaw sets and cutter chains are interchangeable with Wheeler-Rex® models. Pressure Screw Assembly available offering heavy duty parts for current and prior REED models, along with Wheeler-Rex® 490. Order #98046 for REED SC49 models and Wheeler-Rex® 490 series; use #98047 for REED SC59 models.
SPECIFICATIONS
|
Applicable Materials |
Cast Iron Soil Pipe, Clay Pipe and Small Diameter Concrete Pipe |
|---|---|
|
Nominal Capacity |
1-1/2 to 6 in |
|
Overall Length |
26 in |
|
Type |
Ratchet |

$769.96
