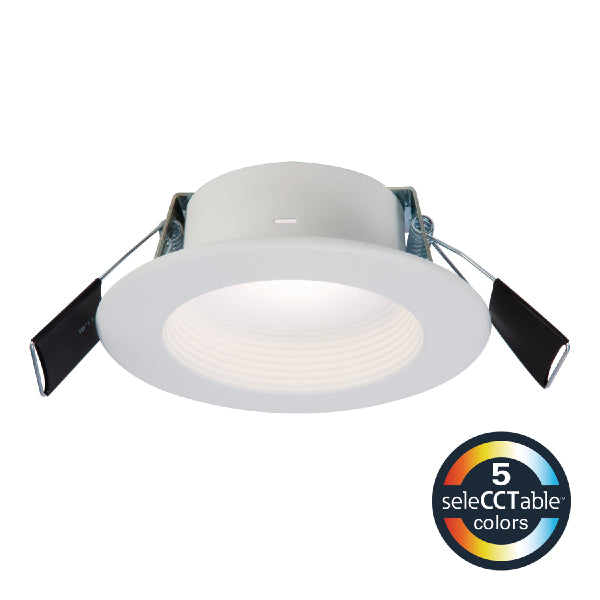

RL4-Dm - in Aperture All Purpose Retrofit Downlight
RL4-Dm - in Aperture All Purpose Retrofit Downlight
RL4069S1EWHDM
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• 4 in direct mount field selectable CCT LED downlight
• Direct mount does not require recessed housing or junction box
• Select from 5 CCTs via switch - 2700 K, 3000 K, 3500 K, 4000 K, 5000 K CCT
• 90 CRI minimum, R9 50 and color accuracy within 4 SDCM
• Wet location listed for showers and protected ceilings
• Dimmable to 5% with 120 VAC dimmers
DIMENSIONS
DIMENSIONS
|
WIDTH |
5.12 in |
|---|---|
|
HEIGHT |
1.95 in |
|
WEIGHT |
1.32 lb |
WARRANTY
WARRANTY
5 years Limited
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
The RL4-DM is a 4 in regressed LED lens downlight with remote driver/junction box suitable for new construction and remodel applications. Field selectable color temperature and high color rendering provide excellent color performance. Simplified installation in drywall or suspended ceilings eliminates recessed cans saving time and money. Installs from below the ceiling in shallow plenum height, can be used in direct contact with insulation and is airtight. Use for general area lighting in low to medium height ceilings where energy savings, long life and economy are required.
SPECIFICATIONS
|
Amperage Rating |
0.069 A |
|---|---|
|
Ballast Type |
Remote Dimming Driver |
|
Color Rendering Index (CRI) |
92 |
|
Color Temperature |
3000 K |
|
Dimensions |
1.95 in H x 5.12 in W |
|
Lamp Wattage |
9 W |
|
Lens Type |
Regressed Convex Diffused Polycarbonate |
|
Light Color |
Soft White |
|
Light Output |
75 Lumens/W |
|
Lumens |
652 Lumens |
|
Mounting Type |
Ceiling/Surface |
|
Number of Lamps |
1 |
|
Recessed Trim Type |
Matte White Regressed Baffle |
|
Series |
RL4-DM |
|
Type |
4 in Aperture All Purpose |

$30.84
