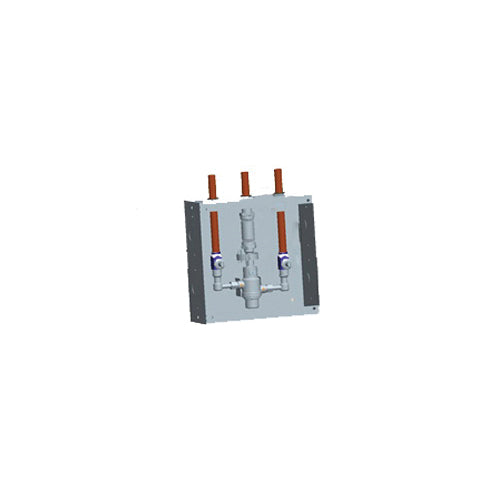

Rough-in Electronic Valve - Polished Chrome - 5.8 GPM

• 254 mm (10 in) square metal box with cover - hot and cold inlet supplies with stops, factory assembled with a point of use thermostatic mixing valve with integral check valves to prevent cross flow
• 102 mm (4 in) square box with extension and plaster guard for sensor wall plate
• 102 mm (4 in) square box for spout wall plate
• Outlet temperature range 95 to 118 deg F on thermostatic mixing valve
• Maximum flow of 5.8 gpm (22 L/min) at 45 psi pressure loss, minimum flow of 0.35 gpm (1.3 L/min) on thermostatic mixing valve
• Outlet flow reduced to a trickle in the event of a cold water supply failure
• RI only for 3000T4328ATR trim
• Verified compliant with 0.25% weighted average Pb content regulations
• Lead free brass
