AQUAFLO

Rough-in Kit - 3-1/2"

Rough-in Kit - 3-1/2"

OBFPS-101-RK-LL

$23.90
$23.90 $26.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Patented design moves the angle-stop for toilet and lavatory water supply into the wall
• Allows angle stops to be installed during the rough-in phase and be pressure tested for reduced liability and labor
• Easy to install vertically, upside down and horizontally
• Eliminates the need for a copper stub out
• Unique push-pull handle opens and closes the valve
• Integrated, replaceable valve has a reliable triple O-ring design inlet seal
• 1 hr and 2 hr fire rated
• Intumescent pad seals through wall penetration
• Ball valve design with PTFE seats
• 3/8 in compression outlet connection

DIMENSIONS

LENGTH

3.5 in

WARRANTY

5 Years Limted

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

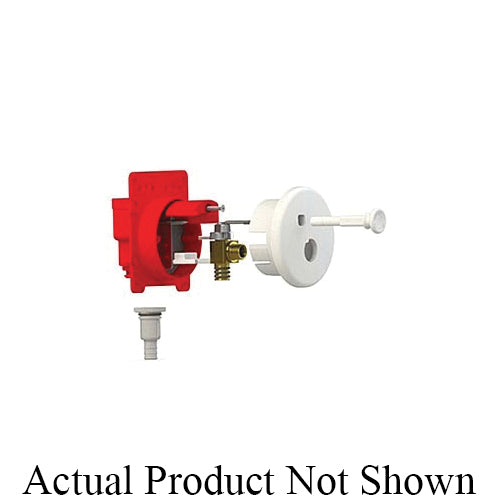

The FireStop™ Pull Stop Box™ is constructed of fire resistant ABS with a factory mounted intumescent pad. The OBFPS series are Warnock Hersey certified to ASTM E-814 and CAN/ULC S115 with 1 hr and 2 hr listings. Suitable for wood or metal studs and for all pipe types.

SPECIFICATIONS

Specifications

40 to 180 deg F Working, 125 psi Working
