LEGEND

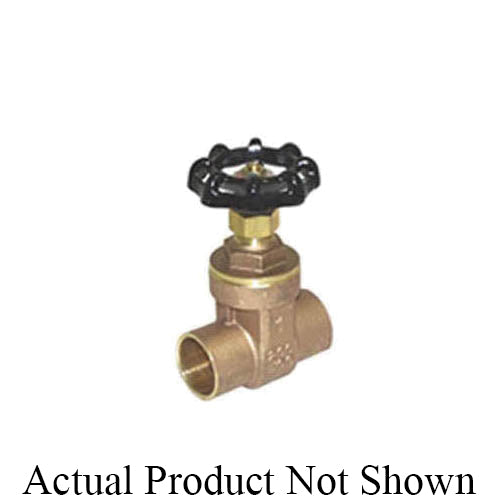

S-401NL - 1-1/2" Gate Valve - Cast Brass - C x C

S-401NL - 1-1/2" Gate Valve - Cast Brass - C x C

104-407NL



Regular price $86.20
Sale price $86.20 Regular price $111.02
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Durable, all-brass body construction
• Full flow waterway reduces pressure drop
• Non-rising stem design is compact and reliable
• Solid, fully-guided disc-wedge opens completely out of the flow-path
• Integral seats are precision-ground to match each disc-wedge
• Lead free

DIMENSIONS

WEIGHT

1.85 lb

WARRANTY

5 Years

PRODUCT OVERVIEW


LEGEND MODELS S-401 gate valves are constructed of heavy duty cast brass. Body and bonnet are connected with a tight metal to metal leak proof seat. The T401/S-401 have a screwed bonnet, non-rising stem, solid wedge disc, and integral seats. Recommended for nonsteam use in residential and commercial applications. May be repacked while in service under pressure. The S-401 is the finest valve in its class on the market.


SPECIFICATIONS

Actuator Type

Handwheel

Body Material

Cast Brass

Domestic/Import

Import

End Style

C x C

Hand Wheel Diameter

3.03 in

Inlet to Outlet Length

3.27 in

Nominal Size

1-1/2 in

Pressure Rating

200 psi CWP

Series

S-401NL

Softgoods Material

NBR Stem Packing

Temperature Rating

200 deg F

Top to Inlet Center

4.92 in

Trim Material

Forged Brass
