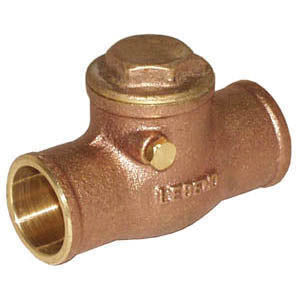

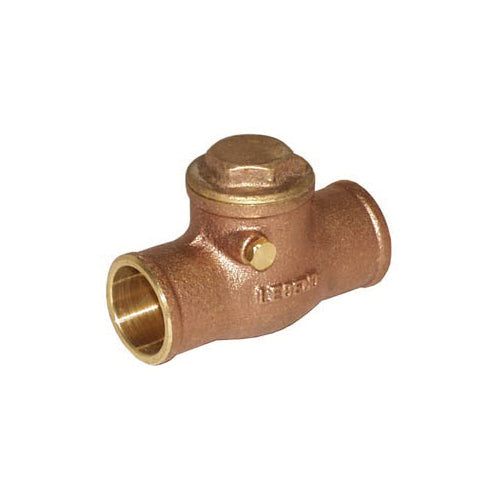

S-451NL - 1-1/4" Swing Check Valve - Cast Brass

S-451NL - 1-1/4" Swing Check Valve - Cast Brass

105-206NL

$57.95
$57.95 $83.69
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Durable, full-pattern cast brass body
• Large, integral seat and disc sealing surfaces
• Forged brass hinge pin assures smooth, non-binding disc operation
• T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations
• Forged brass disc

DIMENSIONS

WEIGHT

1.14 lb

WARRANTY

5 Years

DOCUMENTS & RESOURCES

Specification Sheet
Product Brochure

PRODUCT OVERVIEW

SPECIFICATIONS

Body Material

Cast Brass

Domestic/Import

Import

End Style

C

Inlet to Outlet Length

4.06 in

Low Lead Compliance

Yes

Nominal Size

1-1/4 in

Port Type

Full

Pressure Rating

200 psi CWP

Series

S-451NL

Top to Inlet Center

1.85 in

Trim Material

Forged Brass
