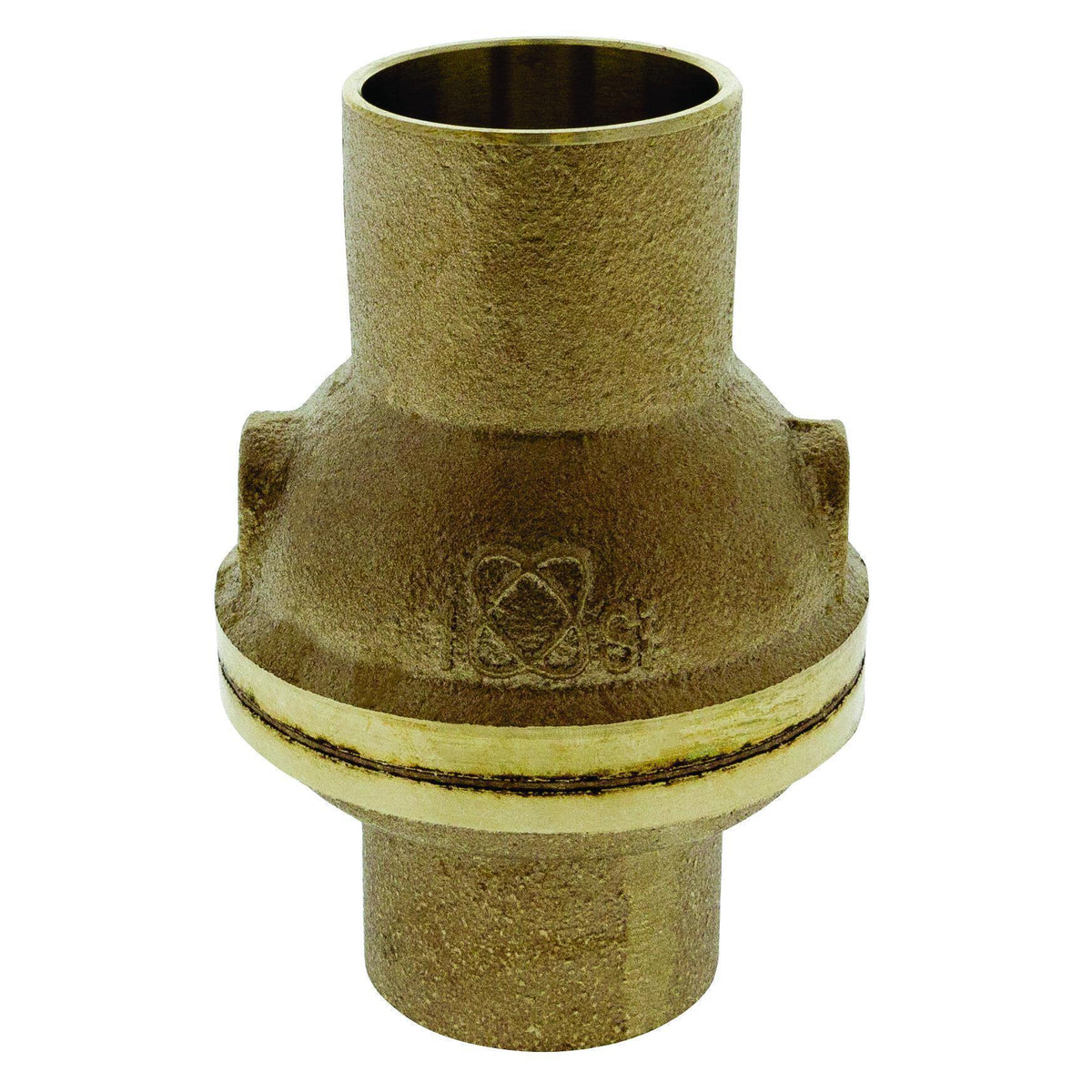

S-480-Y-Lf - Check Valve - Silicon Bronze - Solder
S-480-Y-Lf - Check Valve - Silicon Bronze - Solder
NJ7Q2X8
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Spring actuated
• PTFE resilient seat disc
• NIBCO double-oval lead-free body marking
• The Ring Check valve is uniquely designed with an in-line, spring assisted self-closing disc
• The lift check valve prevents backflow by automatically closing when fluid reverses direction
WARRANTY
WARRANTY
5 years Limited
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
The NIBCO® Ring Check® valve has solder end connections for ease of installation. This check valve may be installed in horizontal positions or vertical with flow moving up. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® valves are backed by the NIBCO INC. 5-year 125% limited warranty.
SPECIFICATIONS
|
Actuator Type |
Spring |
|---|---|
|
Body Material |
Silicon Bronze |
|
Dimensions |
1.74 in Dia |
|
Domestic/Import |
Domestic |
|
End Style |
Solder |
|
Inlet to Outlet Length |
2.62 in |
|
Media |
Water |
|
Nominal Size |
3/4 in |
|
Pressure Class |
125 lb |
|
Pressure Rating |
250 psi |
|
Series |
S-480-Y-LF |
|
Temperature Rating |
300 deg F |
|
Trim Material |
PTFE/Stainless Steel |
|
Type |
Non-Manual |
|
Low Lead Compliance |
Yes |

$81.48
