LEGEND

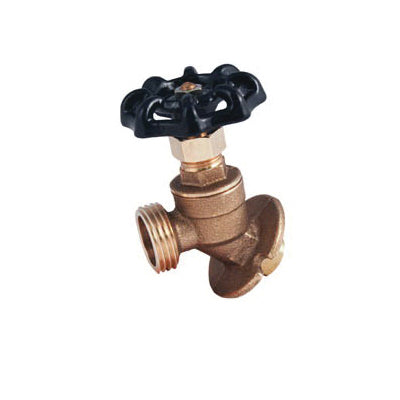

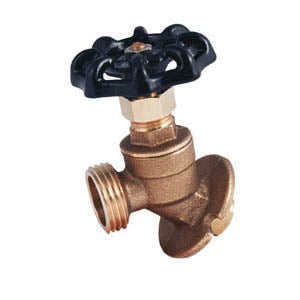

S-541NL - 1/2 x 3/4" Low Pressure Sillcock - Brass

S-541NL - 1/2 x 3/4" Low Pressure Sillcock - Brass

107-184NL

$24.10
$24.10 $35.43
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Lead free design is suitable for all no lead potable water installations in full compliance of all lead free plumbing laws
• Full-pattern body, stem and handwheel construction is more durable than reduced-material examples
• Electric-induction furnace casting process optimizes molten brass temperature, resulting in superior cast body and bonnet components
• Equipped with a stem packing and packing nut design, which are superior to packless-bonnet stem seal designs
• Cast iron handle cadmium plated steel nut handle fastened, brass screw, packing nut, NBR (Buna-N) rubber stem packing and seat washer, stainless steel seat retaining screw
• Cast brass body

DIMENSIONS

WIDTH

2.1 in

WEIGHT

0.45 lb

WARRANTY

5/25 Years

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

SPECIFICATIONS

Actuator Type

Handwheel

Body Material

Brass

Dimensions

3.75 in L Open x 3.47 in L Closed x 2.1 in W

Domestic/Import

Import

End Style

C x Male Garden Hose Thread

Media

Oil/Water

Nominal Size

1/2 x 3/4 in

Port Type

Full

Pressure Rating

125 psi

Series

S-541NL

Trim Material

Cast Brass

Type

Low Pressure
