LEGEND

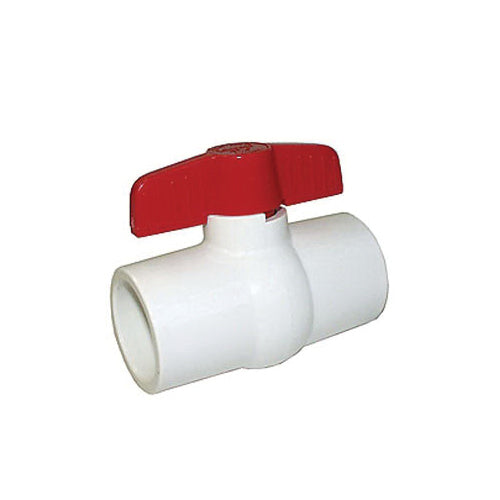

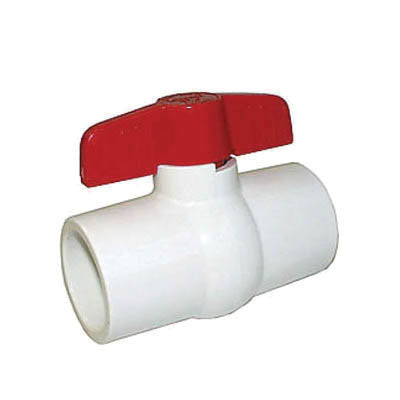

S-600 - 2" Compact Ball Valve - PVC - Solvent

S-600 - 2" Compact Ball Valve - PVC - Solvent

201-458

$18.26
$18.26 $34.97
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• ABS handle zinc plated steel handle retaining screw
• Large ports allow maximum flow and minimum pressure drop or turbulence
• Ball valves are constructed of ASTM D1784 virgin PVC resin
• Severe shock loads and stress are absorbed by the valve body, not the ball and seats thereby minimizing the chance of uneven wear and leakage
• For use in potable water systems
• EPDM stem O-ring and ABS id disc
• Large Port Design

DIMENSIONS

WEIGHT

1.68 lb

WARRANTY

5/25 Years

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

SPECIFICATIONS

Actuator Type

T-Handle

Ball Material

UPVC

Body Material

PVC

Domestic/Import

Import

End Style

Solvent

Inlet to Outlet Length

5.8 in

Media

Oil/Water

Nominal Size

2 in

Port Type

Standard

Pressure Rating

150 psi

Series

S-600

Softgoods Material

EPDM/ABS

Temperature Rating

140 deg F

Top to Inlet Center

5.3 in

Trim Material

UPVC Stem and EPDM Seat
