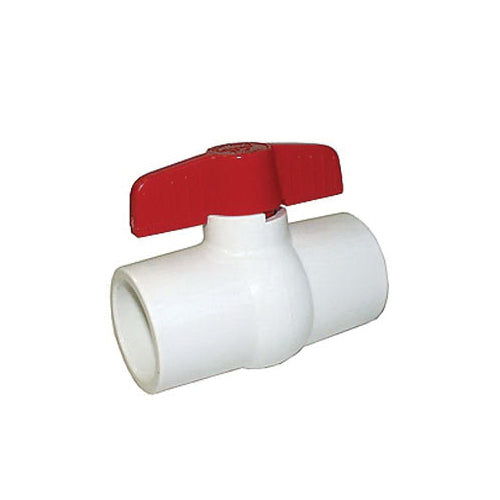

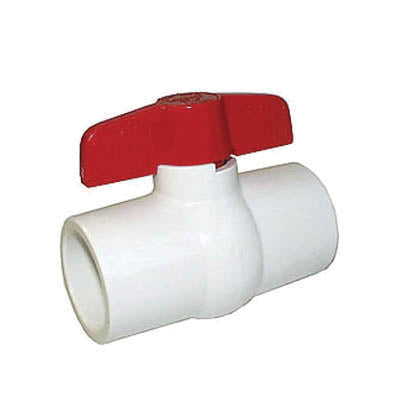

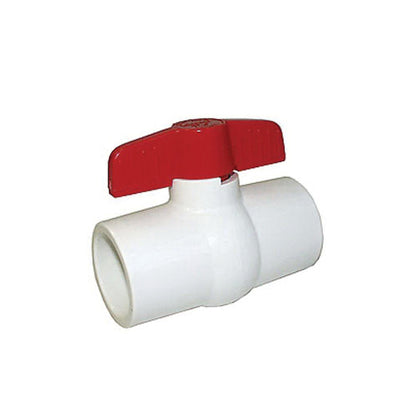

S-601 - 3" Compact Miniature Ball Valve - PVC - Solvent

S-601 - 3" Compact Miniature Ball Valve - PVC - Solvent

201-410

$82.44
$82.44 $118.84
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• ABS handle zinc plated steel handle retaining screw
• Large ports allow maximum flow and minimum pressure drop or turbulence
• Ball valves are constructed of ASTM D1784 virgin PVC resin
• Severe shock loads and stress are absorbed by the valve body, not the ball and seats thereby minimizing the chance of uneven wear and leakage
• In-line, one way flow style
• EPDM stem O-ring

DIMENSIONS

HEIGHT

7.5 in

WEIGHT

4.32 lb

WARRANTY

5/25 Years

DOCUMENTS & RESOURCES

Specification Sheet
Product Brochure

PRODUCT OVERVIEW

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

SPECIFICATIONS

Actuator Type

T-Handle

Ball Material

PVC

Body Material

PVC

Dimensions

7-1/2 in H

Domestic/Import

Import

End Style

Solvent

Inlet to Outlet Length

9 in

Media

Gas/Oil/Water

Nominal Size

3 in

Port Type

Full

Pressure Rating

150 psi

Series

S-601

Softgoods Material

EPDM

Temperature Rating

140 deg F

Trim Material

PVC Stem and EPDM Seat
