LEGEND

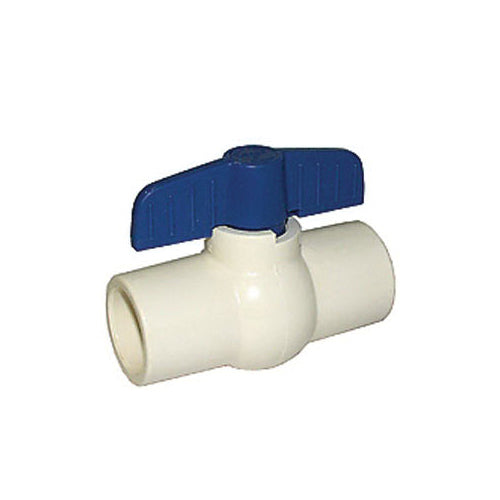

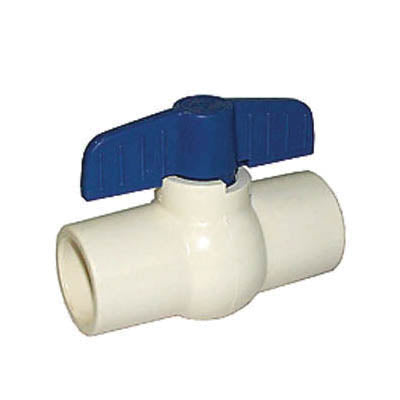

S-605 - 2" Compact Miniature Ball Valve - CPVC - Solvent

S-605 - 2" Compact Miniature Ball Valve - CPVC - Solvent

202-408

$44.86
$44.86 $67.70
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Large ports allow maximum flow and minimum pressure drop or turbulence
• Ball valves are constructed of ASTM D1784 virgin CPVC resin
• Severe shock loads and stress are absorbed by the valve body, not the ball and seats thereby minimizing the chance of uneven wear and leakage
• Compact-pattern molded-in-place body design
• Low torque, durable PTFE seats and in-line, one way flow style
• EPDM seal

DIMENSIONS

HEIGHT

4.63 in

WEIGHT

1.22 lb

WARRANTY

5/25 Years

DOCUMENTS & RESOURCES

Specification Sheet
Product Brochure

PRODUCT OVERVIEW

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

SPECIFICATIONS

Actuator Type

T-Handle

Ball Material

CPVC

Body Material

CPVC

Dimensions

4.63 in H

Domestic/Import

Import

End Style

Solvent

Inlet to Outlet Length

5.69 in

Media

Oil/Water

Nominal Size

2 in

Port Type

Full

Pressure Rating

150 psi

Series

S-605

Softgoods Material

EPDM

Temperature Rating

180 deg F

Trim Material

CPVC Stem and Dupont PTFE Seat
