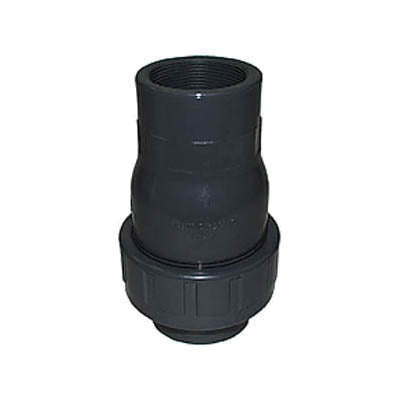

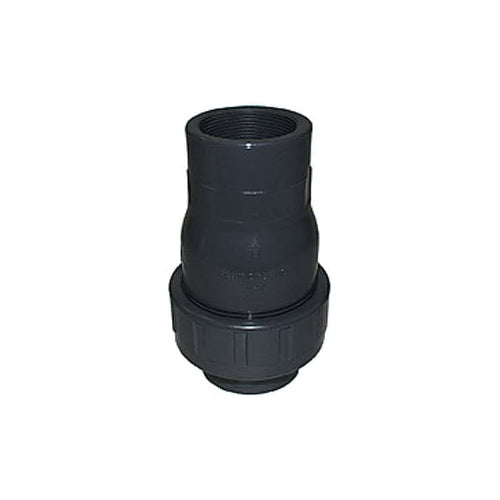

S-655 - 2" Ball Cone Check Valve - Upvc - Solvent

S-655 - 2" Ball Cone Check Valve - Upvc - Solvent

201-288

$112.19
$112.19 $173.15
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Ideal for swimming pool, process/wastewater or corrosive installations where the media or surrounding environment would otherwise attack a metallic valve
• Fully-guided conical-ball design assures correct seal alignment and a positive seal, under low-or high backpressures
• Constructed using 100% virgin resins
• Fits both SCH 40/STD and SCH 80/XH pipe
• Can be converted to a foot valve by attaching the UPVC strainer (furnished separately)
• Full port, uni-directional flow minimizes pressure drop
• Single union end design eases installation
• Ball-cone seals by gravity and backpressure in the vertical position (upward flow only) and by 2 to 4 psi backpressure in positions other than vertical
• Not recommended for use with petroleum based medias
• EPDM seal

DIMENSIONS

HEIGHT

4.21 in

WEIGHT

1.92 lb

WARRANTY

5 Years

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

LEGEND MODELS T-655 AND S-655 PVC ball check valves are constructed of ASTM D1784 virgin UPVC resin. The ball seals by gravity in the vertical position and at 2 to 4 PSI backpressure, in positions other than vertical. They can be easily converted to foot valves by the addition of an optional plastic screen. Recommended for commercial and industrial applications where backflow prevention is desired.

SPECIFICATIONS

Ball Material

UPVC Resin

Body Material

UPVC

Dimensions

4.21 in H

Domestic/Import

Import

End Style

Solvent

Inlet to Outlet Length

7.01 in

Media

Gas/Oil/Water

Nominal Size

2 in

Port Type

Full

Pressure Rating

150 psi

Series

S-655

Softgoods Material

EPDM

Temperature Rating

73 deg F
