SCREW MOUNT DEVICE BOX

ARL-F101 (Product Description)

The ARL-F101 is a 1-gang non-metallic outlet/device box designed for new work or old work stud-mounted installations.

Product Description

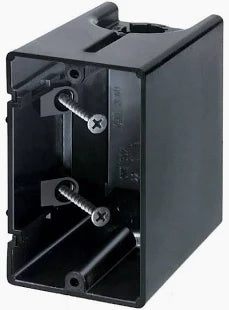

This is Arlington’s ONE-BOX® screw-mount electrical box, a versatile single-gang plastic device box that mounts directly to a wood or steel stud for a secure installation. Unlike standard nail-on boxes, it uses internal angled screws so the box can be adjusted and remounted as needed during installation.

It is commonly used for:

• Switches
• Receptacles
• Low-voltage/power combo applications (with divider accessory)
• New construction and retrofit work

Key Specifications

• Model: F101
• Type: Non-metallic outlet/device box
• Gang: 1-gang
• Orientation: Vertical
• Capacity: 22.5 cu. in.
• Material: Plastic / non-metallic
• Mounting: Screw-mount to wood or steel stud
• Color: Black

Key Features

• Adjustable/remountable after installation
• Mounts directly to stud for rigid support
• Suitable for new work and retrofit applications
• No drywall wings—reduces wobble
• Includes NM cable connectors with box
• 2-hour fire rating listed by manufacturer

Typical Applications

• Residential switch and receptacle rough-in
• Remodel/retrofit box replacement
• Stud-mounted device installations
• Tight locations where adjustable depth is helpful
