DEWALT

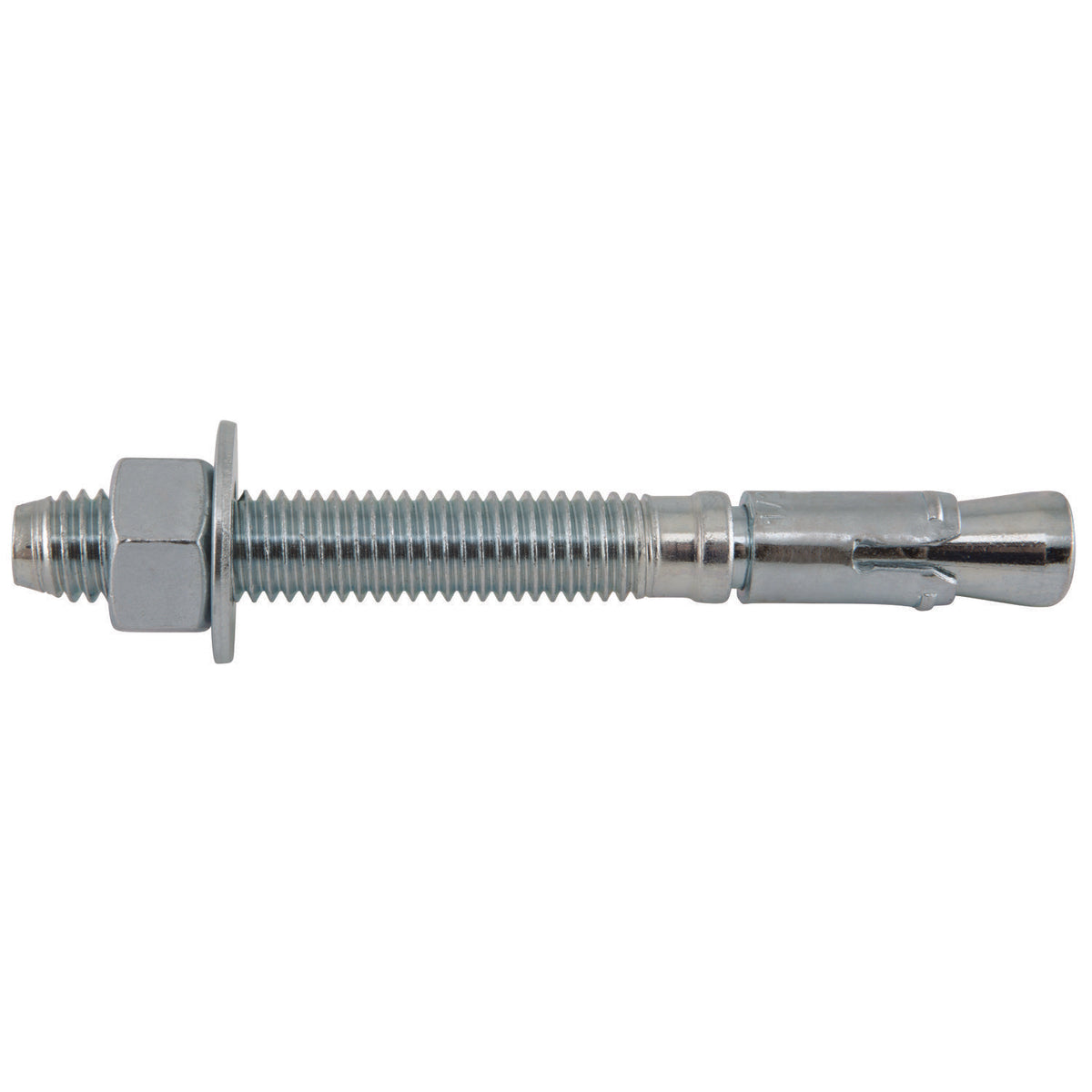

SD1 - Expansion Wedge Anchor - 1/2" Dia - 4-1/2" OAL

SD1 - Expansion Wedge Anchor - 1/2" Dia - 4-1/2" OAL

7423SD1-PWR

$1.32
$1.32 $0.66
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Consistent performance in high and low strength concrete
• Anchor can be installed through standard fixture holes
• Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
• Nominal drill bit diameter same as Anchor diameter
• Length ID code and identifying marking stamped on head of each Anchor
• Ultimate load capacity - 2240 lb tensile strength when embedded in 2500 psi, 2685 lb tensile strength when embedded in 3000 psi, 3100 lb tensile strength when embedded in 4000 psi normal-weight concrete
• Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials

DIMENSIONS

LENGTH

4.5 in

WEIGHT

0.26 lb

DOCUMENTS & RESOURCES

Product Brochure

PRODUCT OVERVIEW

The Power-Stud®+ SD1 Anchor is a fully threaded, torque controlled, wedge expansion Anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The Anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.

SPECIFICATIONS

Diameter

1/2 in

Drill Size

1/2 in

Head Type

Threaded Stud

Material

Carbon Steel

Maximum Work Thickness

1-3/4 in

Minimum Embedment Depth

2-1/4 in

Overall Length

4-1/2 in

Series

SD1

Shear Strength

4195 lb

Tensile Strength

4800 lb

Thread Length

2-3/4 in

Thread Size

1/2-13

Thread Type

UNC

Type

Expansion
