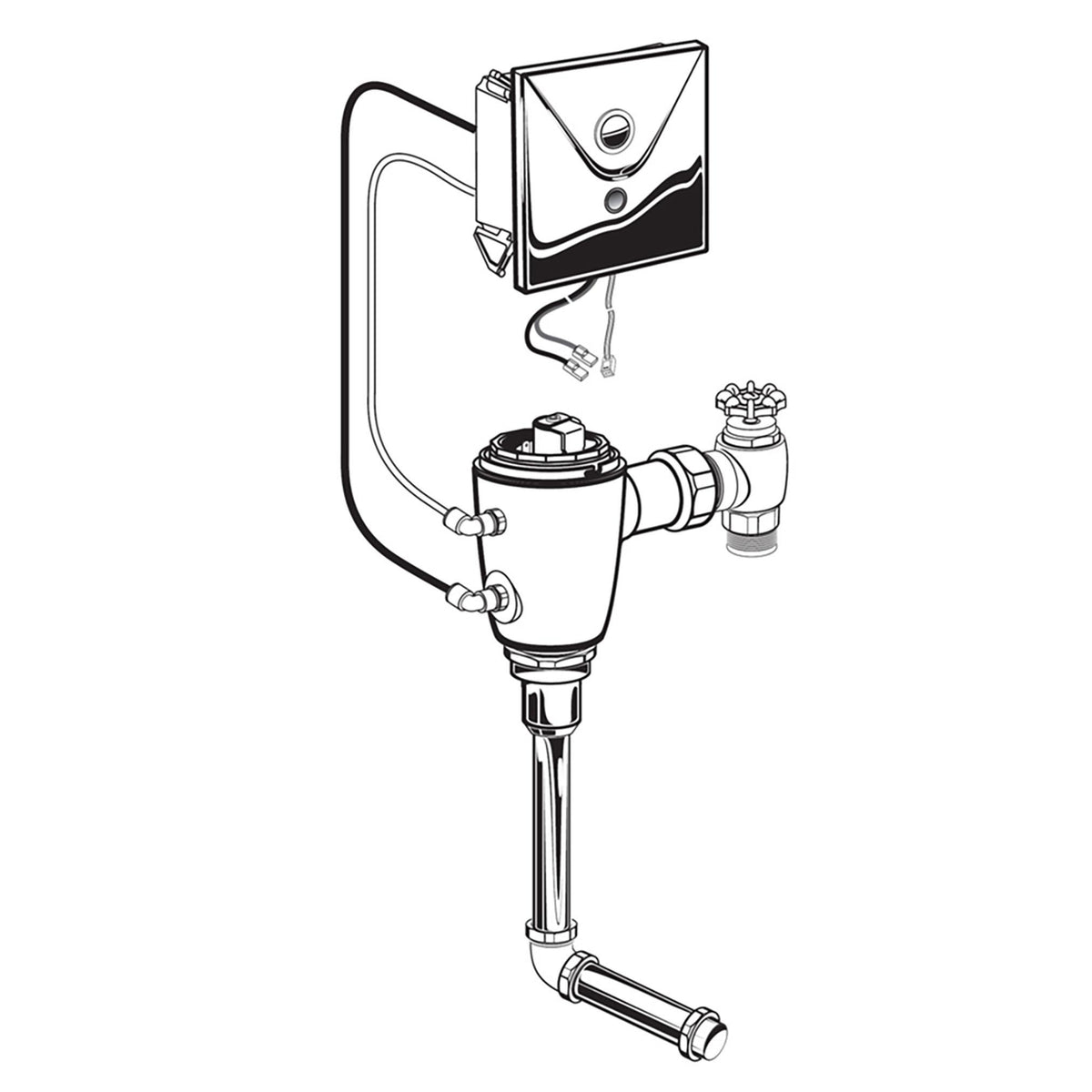

Selectronic - Base Model Concealed Flush Valve - 3/4" Spud
Selectronic - Base Model Concealed Flush Valve - 3/4" Spud
606B310.007
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Pressure compensation feature ensures accurate flush volume regardless of inlet water pressure
• Self-cleaning piston with integral wiper spring significantly reduces clogging and maintenance
• Selectronic® proximity system with universal sensor provides hygienic, hands free operation
• State-of-the-Art electronics prevent ghost flushing
• Dezincification resistant semi-red brass alloy
• Fully mechanical manual override button can flush the valve without power
• Fail-safe: valve automatically closes upon loss of power or water pressure and does not need to be reset
• Adjustable sanitary flush cleans the fixture and maintains the trap seal
• Stadium feature: valve automatically switches to water savings mode during periods of heavy usage
• Chemical resistant EPDM seals for extended life
DIMENSIONS
DIMENSIONS
|
WEIGHT |
14.01 lb |
|---|
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
Pressure compensation feature ensures accurate flush volume regardless of inlet water pressure. Self-cleaning piston with integral wiper spring significantly reduces clogging and maintenance. Selectronic® proximity system with universal sensor provides hygienic, "hands free" operation. State of the art electronics prevent ghost flushing. Dezincification-resistant semi-red brass alloy. Fully mechanical manual override button can flush the valve without power. Fail-safe - valve automatically closes upon loss of power or water pressure and does not need to be reset. Adjustable sanitary flush cleans the fixture and maintains the trap seal. Stadium feature - valve automatically switches to water savings mode during periods of heavy usage. Chemical-resistant EPDM seals for extended life. Adjustable tailpiece for rough-in flexibility. Can be installed left or right handed. All exposed parts are chrome plated.
SPECIFICATIONS
|
Collection |
Selectronic® |
|---|---|
|
Domestic/Import |
Import |
|
Fixture Type |
Urinal |
|
Flush Rate |
1 gpf |
|
Inlet Size |
3/4 in |
|
Material |
Semi-Red Brass |
|
Pressure Rating |
20 psi Flowing/80 psi Static |
|
Spud Coupling |
3/4 in |
|
Type |
Base Model |
|
Valve Design |
Piston Operated |

$496.60
