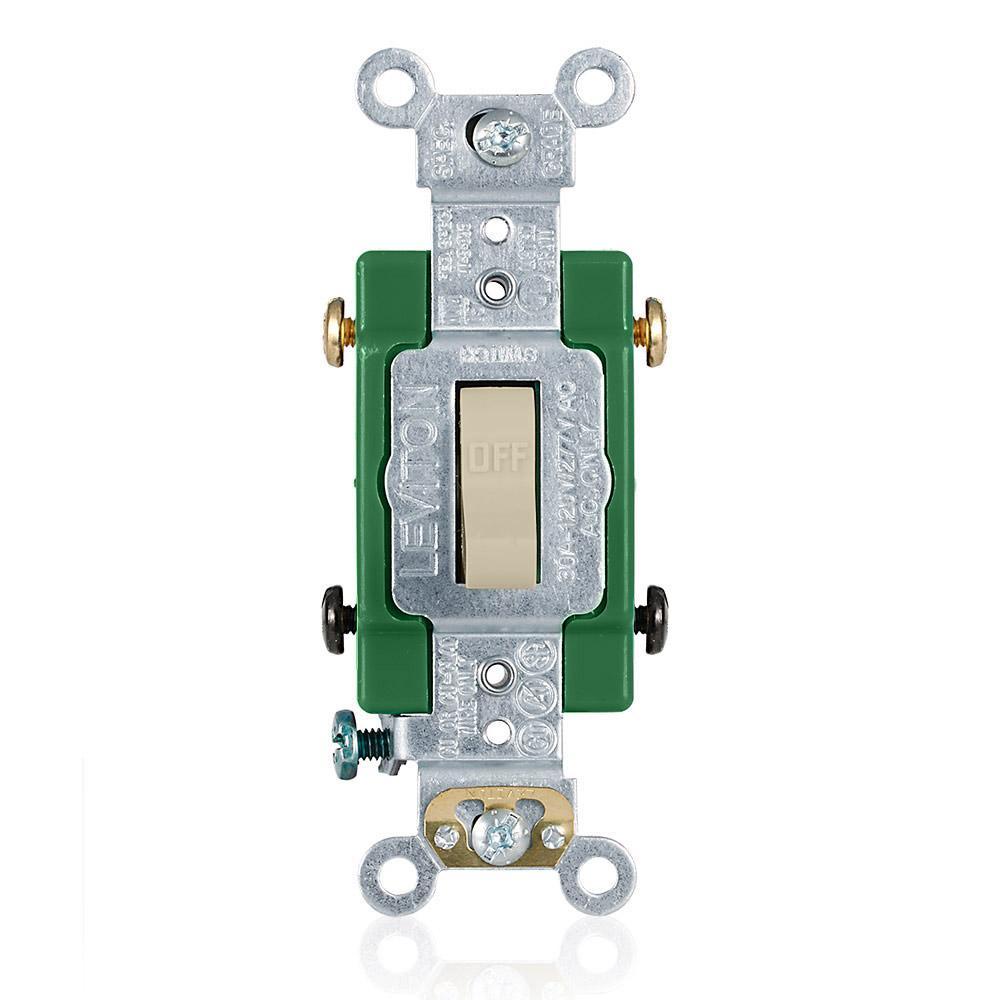

Self-Grounding Toggle Switch - Ivory - Thermoplastic
Self-Grounding Toggle Switch - Ivory - Thermoplastic
3032-2I
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
WIDTH |
1.31 in |
|---|---|
|
HEIGHT |
46 in |
|
WEIGHT |
0.21 lb |
PRODUCT OVERVIEW
Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top-of-the-line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
SPECIFICATIONS
|
Actuator |
Toggle |
|---|---|
|
Amperage Rating |
30 A |
|
Contact Rating |
2 hp at 120 to 240 V AC |
|
Dimensions |
46 in H x 1.31 in W x 13 in D |
|
Enclosure |
NEMA WD-1/WD-6 |
|
Environmental Conditions |
-40 to 65 deg C Operating Temperature |
|
Material |
Thermoplastic |
|
Mounting |
Surface |
|
Number of Poles |
2 |
|
Operating Cycles |
50000 Cycles |
|
Power Rating |
2 hp |
|
Terminal Type |
Back/Side Wire |
|
Type |
Self-Grounding |
|
Voltage Rating |
120/277 V AC |

$27.47
