NEWPORT BRASS

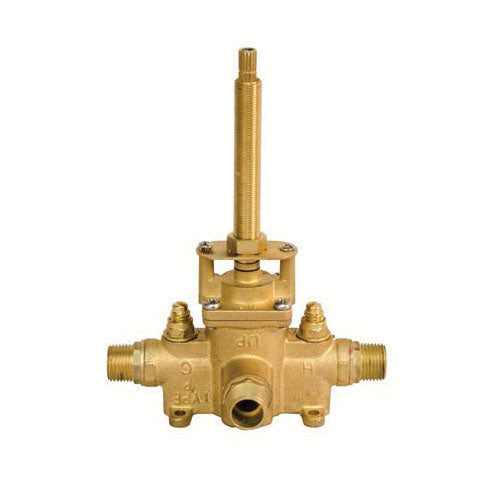

Shower Trim Valve - 5.8 GPM Valve - Wall Mount

Shower Trim Valve - 5.8 GPM Valve - Wall Mount

1-684

$262.29
$262.29 $365.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Provides anti-scald protection and temperature regulation
• pressure balancing technology maintains water temperature within +/- 2 deg F
• High temperature safety stop ensures water temperature stays below maximum setting
• Integral hot and cold inlet stops ensure easy cartridge access
• Universal NPT and direct sweat connections for installation flexibility
• 1-1/16 in functional depth (center-back) enables back-to-back installation
• Maximum handle rotational requirement of 150 deg to achieve maximum temperature setting
• 3 port with service stops
• Without diverter

DIMENSIONS

LENGTH

5.94 in

WARRANTY

Limited

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

SPECIFICATIONS

Dimensions

5-15/16 in L

Domestic/Import

Domestic

Hand Shower Yes/No

No

Handle Type

Rotating

Material

Solid Brass

Mounting Type

Wall

Pressure Rating

50 psi

Temperature Rating

180 deg F

Valve Flow Rate

5.8 gpm

Valve Inlet Connection

1/2 in C

Valve Outlet Connection

1/2 in NPT

Valve/Cartridge Type

1222 Pressure Balanced
