NVENT CADDY

Speed Link Sls System - SLS2L2

Speed Link Sls System - SLS2L2

SLS2L2

$1,236.68
$1,236.68 $539.29
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Hooks to a wide range of nVent CADDY fasteners
• Fastens to the building structure or hanging services by looping around and hooking to wire rope
• Spring latch helps provide secure connection
• Insert cable through hole and use bottom side of hook as an end stop
• Finger tightening of nut secures the locking device into position without tools
• Installs in strut profiles without the need to insert fingers or tools into the strut

DIMENSIONS

WEIGHT

0.07 lb

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions
User Manual
Product Brochure

PRODUCT OVERVIEW

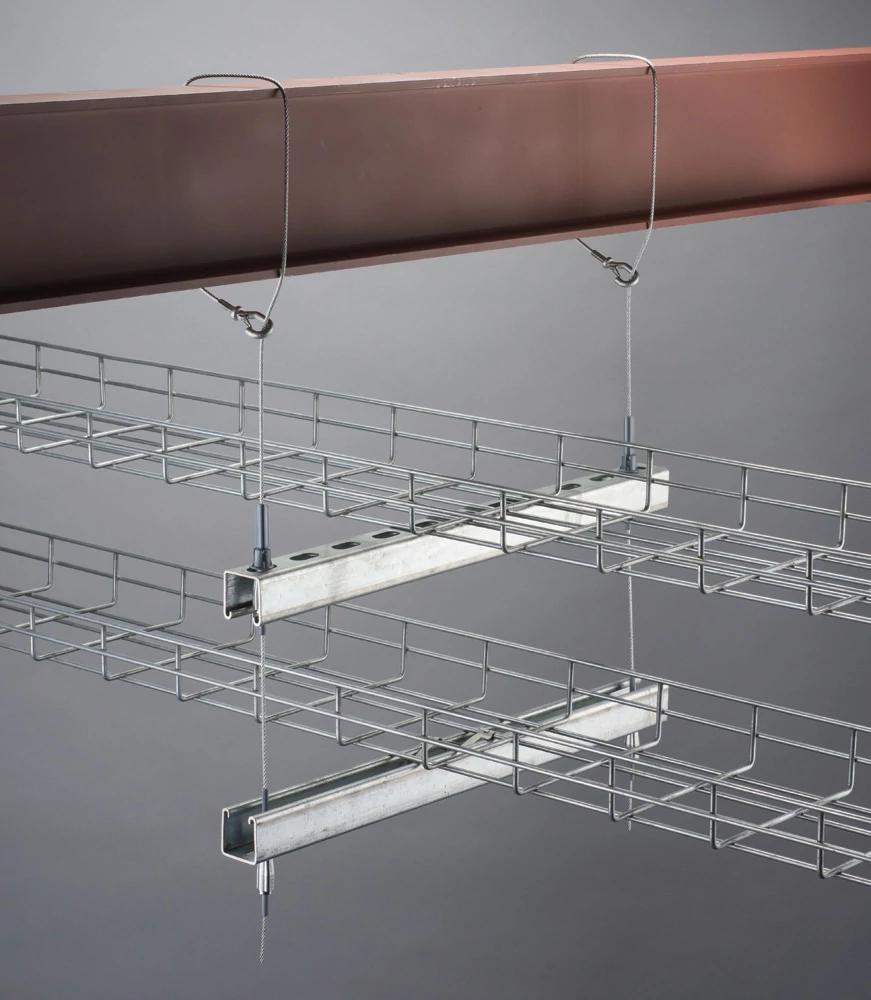

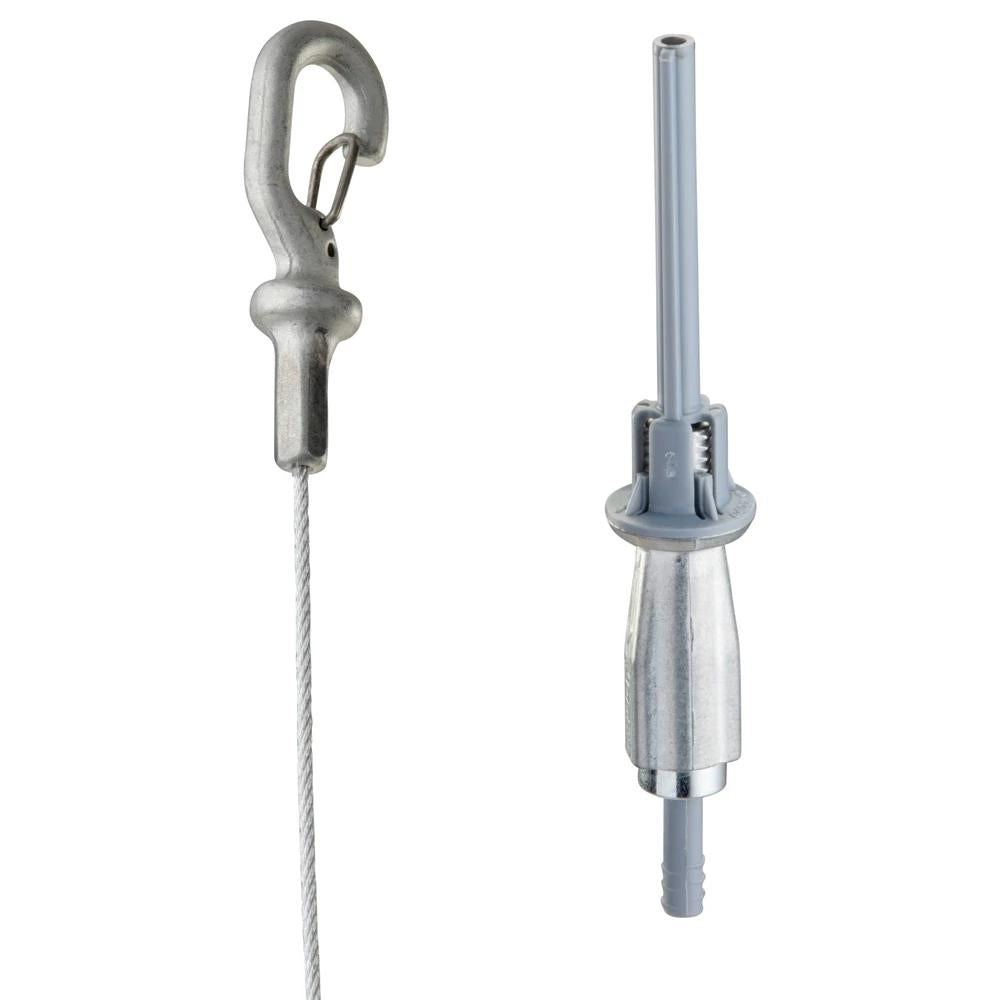

The speed link SLS system is an innovative cable solution for supporting metal framing channels, ceiling fan units, and other hangers. The locking device is similar to the keyless design of speed link SLK but with a single barrel. The outside of the housing is threaded and is held in a channel or hanger by a push-to-install retaining nut. This engineered elongated retaining nut reduces unwanted sway of the trapeze during installation and provides higher stability. The system allows for quick and easy prefabrication of complex assemblies at ground level that can be easily lifted and held in place by wire rope.

SPECIFICATIONS

Material

Polypropylene/Steel/Zinc Alloy

Specifications

60 lb Static Load, 5:1 Safety Factor, 2 mm Dia x 6.6 ft L Wire, 2.24 x 0.79 x 0.22 in Hook, M8 Thread, 0.31 to 0.38 in Hole, 0.31 x 0.25 to 0.31 x 0.38 in Slot

Suitable For Use With

Speed Link Universal Support System
