Item Status: Discontinued

Availability is limited to remaining stock.

NVENT CADDY

Speed Link Sls System - SLS3L2

Speed Link Sls System - SLS3L2

SLS3L2

$1,525.76
$1,525.76 $665.35
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

COMPLEMENTARY PRODUCTS

MORE PRODUCT INFORMATION

FEATURES

• Single barrel locking device allows for quick prefabrication of strut or brackets
• Push-on nut quickly and securely installs to strut or bracket to keep the locking device in position and eases installation
• Finger tightening of nut secures the locking device into position without tools
• Installs in strut profiles without the need to insert fingers or tools into the strut
• Push on nut guides the cable into the locking device and brings stability to the support
• Installs with open side of the strut channel facing up or down for more flexibility
• Hooks to a wide range of nVent CADDY fasteners
• Fastens to the building structure or hanging services by looping around and hooking to wire rope
• Easy to remove for applications requiring maintenance
• Spring latch helps provide secure connection

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions
User Manual
Product Brochure

PRODUCT OVERVIEW

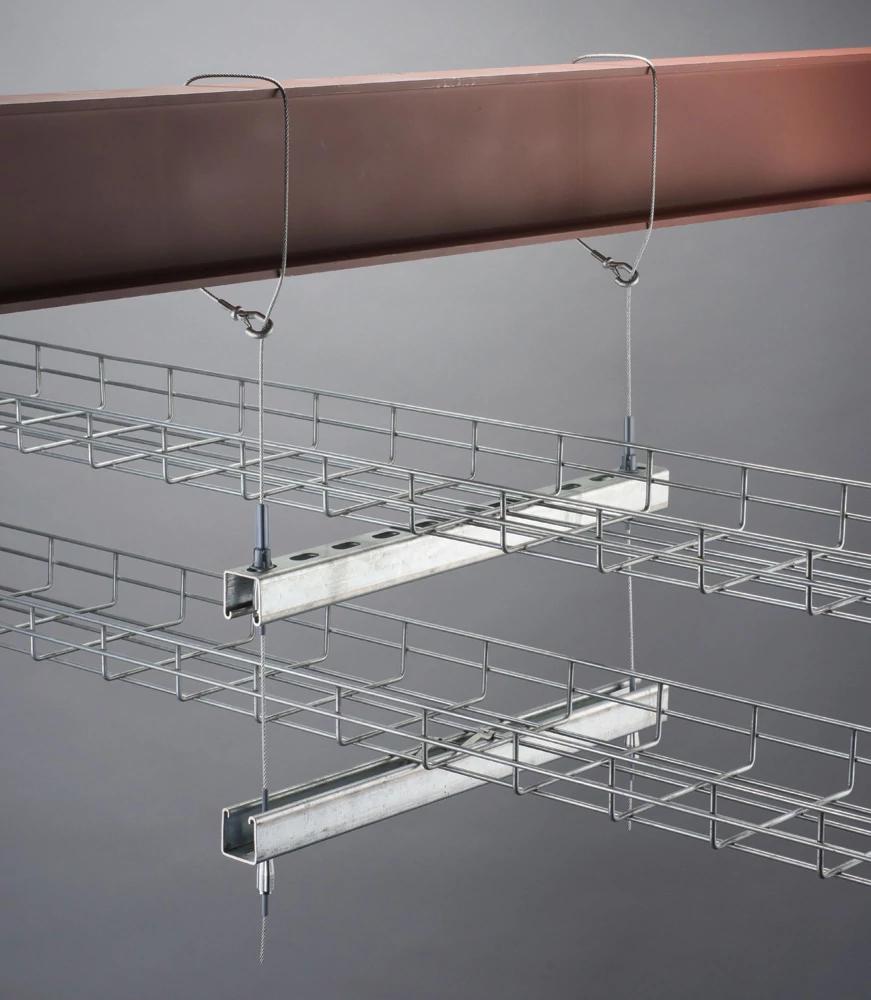

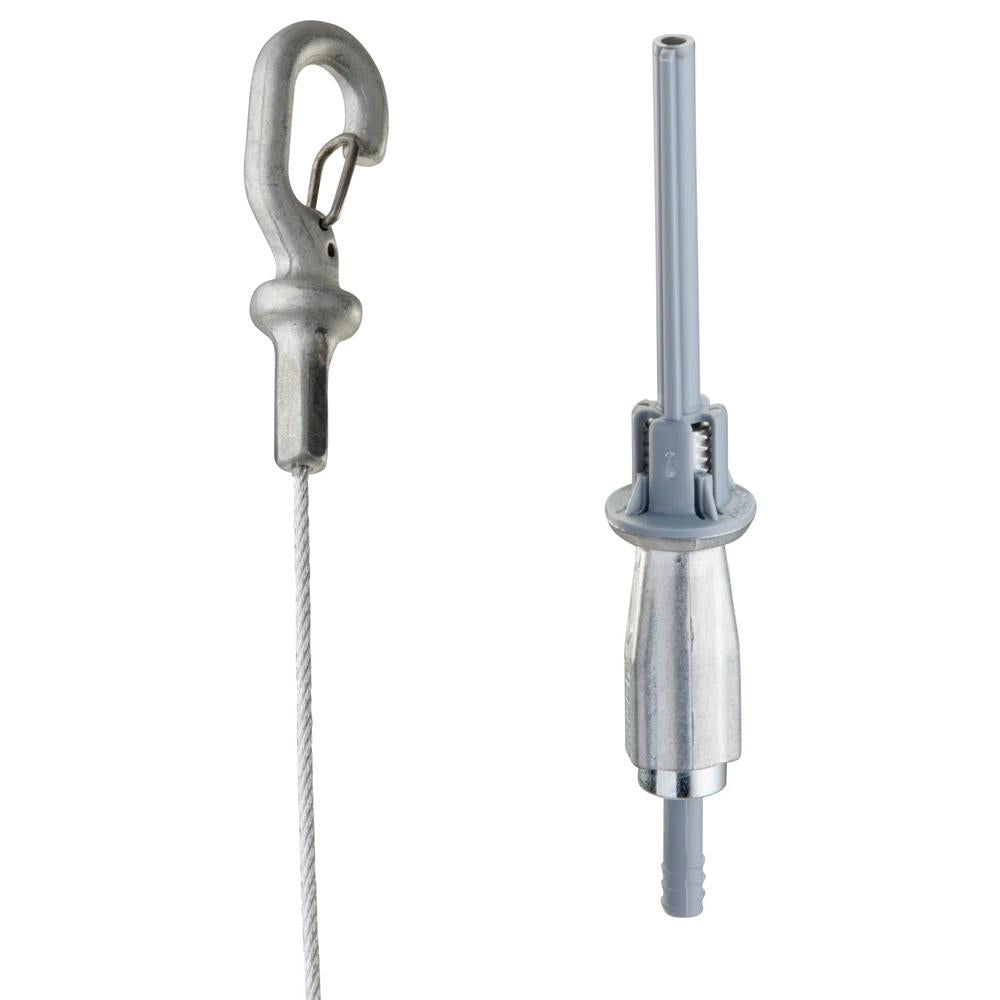

The speed link SLS system is an innovative cable solution for supporting metal framing channels, ceiling fan units, and other hangers. The locking device is similar to the keyless design of speed link SLK but with a single barrel. The outside of the housing is threaded and is held in a channel or hanger by a push-to-install retaining nut. This engineered elongated retaining nut reduces unwanted sway of the trapeze during installation and provides higher stability. The system allows for quick and easy prefabrication of complex assemblies at ground level that can be easily lifted and held in place by wire rope.

SPECIFICATIONS

Material

Polypropylene/Steel/Zinc Alloy

Specifications

150 lb Static Load, 5:1 Safety Factor, 3 mm Dia x 6.6 ft L Wire, 2.27 x 0.91 x 0.24 in Hook, M12 Thread, 0.5 to 0.56 in Hole, 0.47 x 0.39 to 0.47 x 0.56 in Slot

Suitable For Use With

Speed Link Universal Support System
