EATON

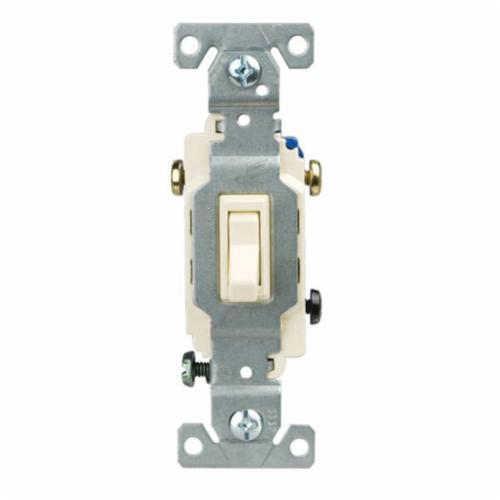

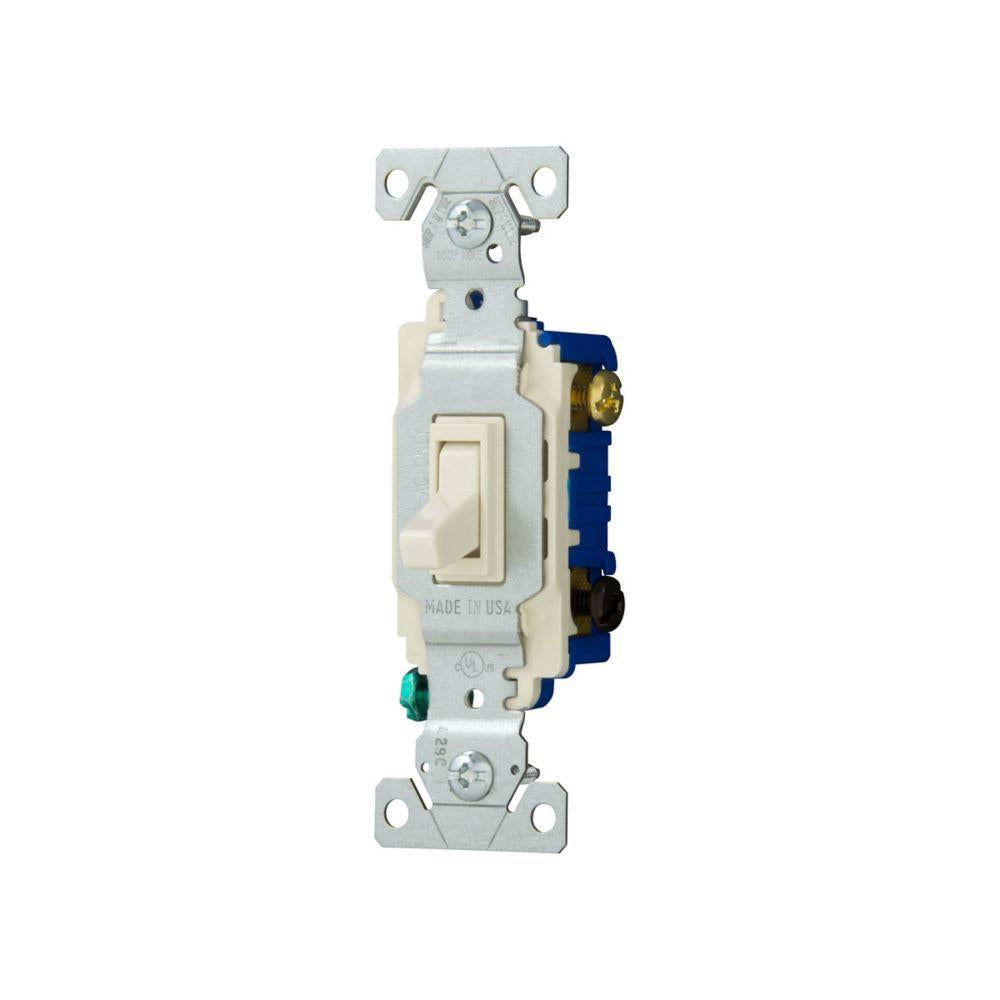

Standard/Specification Grade Toggle Switch - 120 V

Standard/Specification Grade Toggle Switch - 120 V

1303-7LA

$1.62
$1.62 $1.13
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Long, broad mounting strap virtually eliminates floating installations
• Push-in terminals accept 14 AWG solid wire for quick installation
• Side wire terminals accept up to 10 AWG solid wire
• 3-way switches feature additional push-in common termination for feed thorough tapping
• Patented built-in wire stripper for 14 and 12 AWG wire to speed installation
• Patented built-in wire looper for pre-looping
• Tri-combo screws accept slotted, Phillips® and Robertson head tools for installation flexibility
• Lighted toggle glows in Off position
• 3.28 in L screw to screw
• 2.31 in L back

DIMENSIONS

WIDTH

0.75 in

WEIGHT

0.1 lb

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

Eaton's Arrow Hart residential grade switches are engineered for smooth action and years of safe, dependable service - no matter what the application, type of load or use.

SPECIFICATIONS

Actuator

Framed Toggle

Amperage Rating

15 A

Dimensions

0.75 in W x 0.88 in D

Environmental Conditions

-20 to 60 deg C Operating Temperature

Material

Polycarbonate/PVC/Thermoplastic

Mounting

Wall

Number of Poles

1

Power Rating

1/2 hp

Series

1300

Terminal Type

Side Wire/Push-In/Screw

Type

3-Way Grounding Standard/Specification Grade

Voltage Rating

120 V
