Availability is limited to remaining stock.

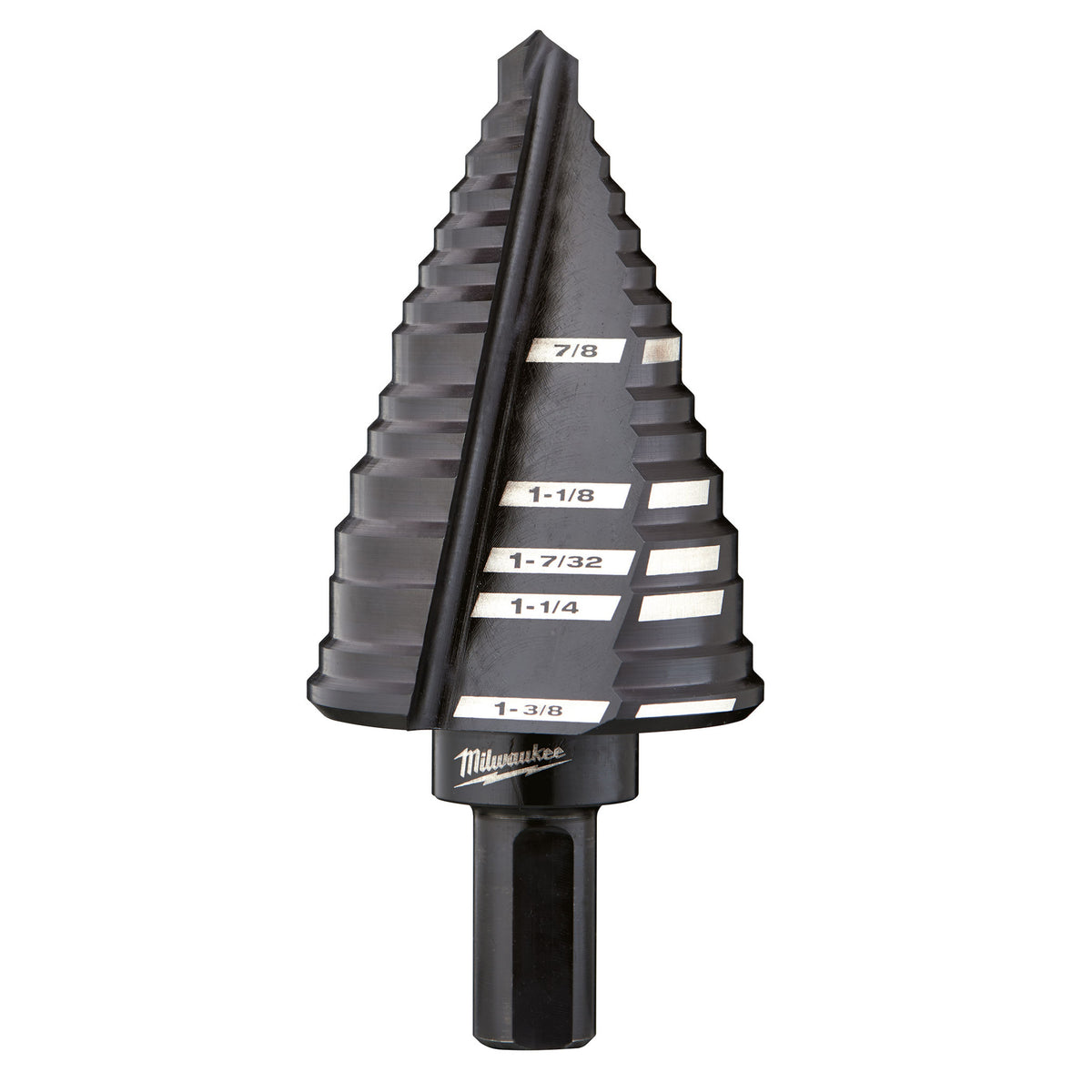

Step Drill Bit - 7/8" Dia Min Hole - 1-3/8" Dia Max Hole
Step Drill Bit - 7/8" Dia Min Hole - 1-3/8" Dia Max Hole
48-89-9212
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
WEIGHT |
0.43 lb |
|---|
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW

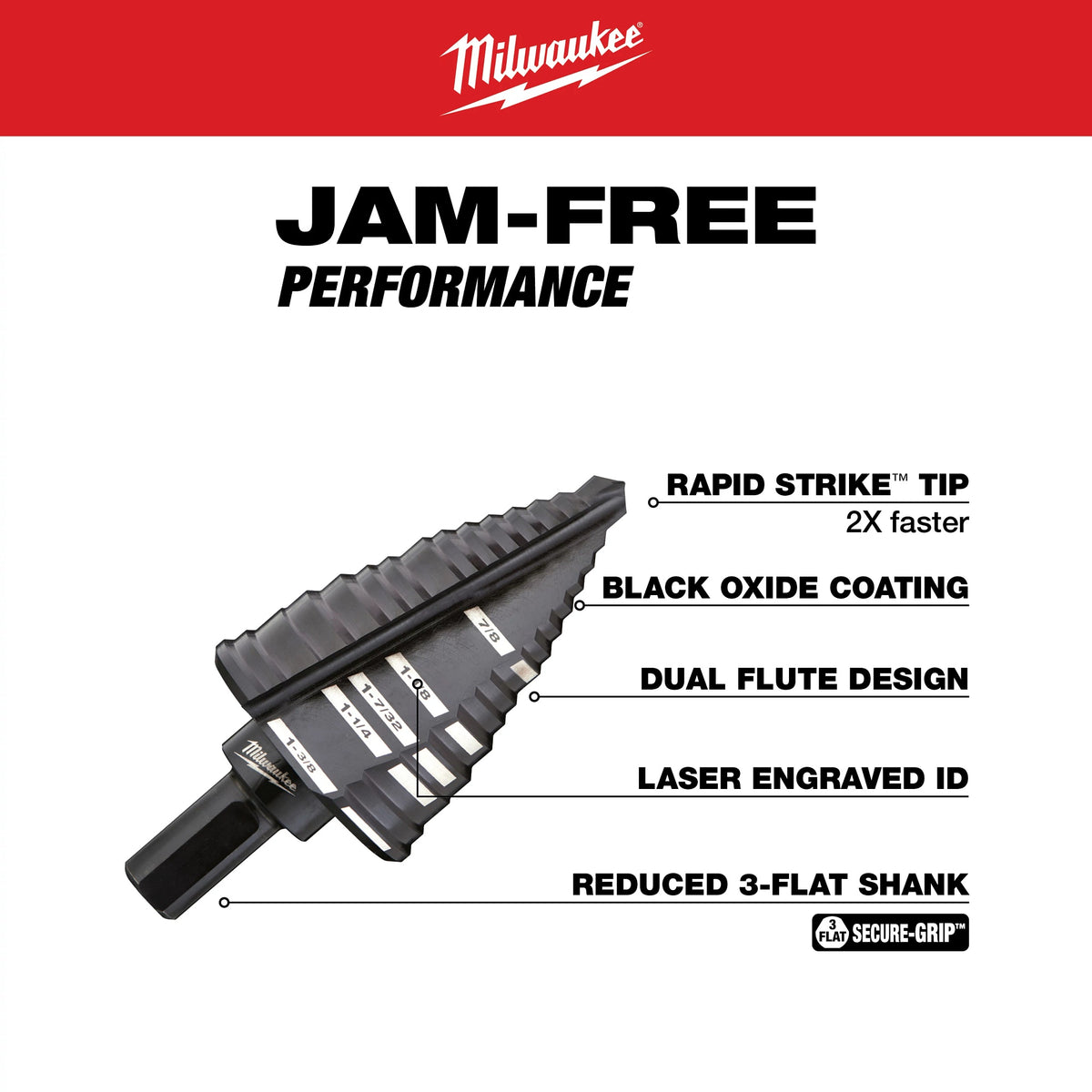

The MILWAUKEE® step drill bits with jam-free performance feature a dual-flute design delivering up to 2X faster hole times, up to 4X longer life and up to 50% more holes per battery charge than competitors. Ideal for drilling small and large-diameter holes in steel and plastic, these bits are optimized for cordless drills in high speed. The Rapid Strike™ tip allows for a fast and accurate start that generates less heat, resulting in longer bit tip life. Black oxide coating also enhances durability, hole quality and bit life. For user convenience and accuracy, each bit has laser-engraved reference marks you can see while drilling. The 3-flat Secure-Grip™ shank ensures a solid connection with the drill chuck. The #12 step drill bit has 5 hole sizes in 1/8 in. increments ranging from 7/8" to 1-3/8". jam-free performance in high speed with most professional 18 Volt cordless drills with lithium-ion battery technology.
SPECIFICATIONS
|
Applicable Materials |
Metal and Plastic |
|---|---|
|
Cutting Edge Material |
HSS |
|
Drill Diameter Measurement System |
Imperial |
|
Letter/Wire Size |
#12 |
|
Material |
HSS |
|
Maximum Hole Diameter |
1-3/8 in |
|
Minimum Hole Diameter |
7/8 in |
|
Number of Flutes |
2 |
|
Number of Hole Sizes |
4 |
|
Number of Steps |
5 |
|
Shank Size |
3/8 in |
|
Shank Type |
3-Flat/Reduced |

$85.03
