Item Status: Discontinued

Availability is limited to remaining stock.

EATON WIRING DEVICES

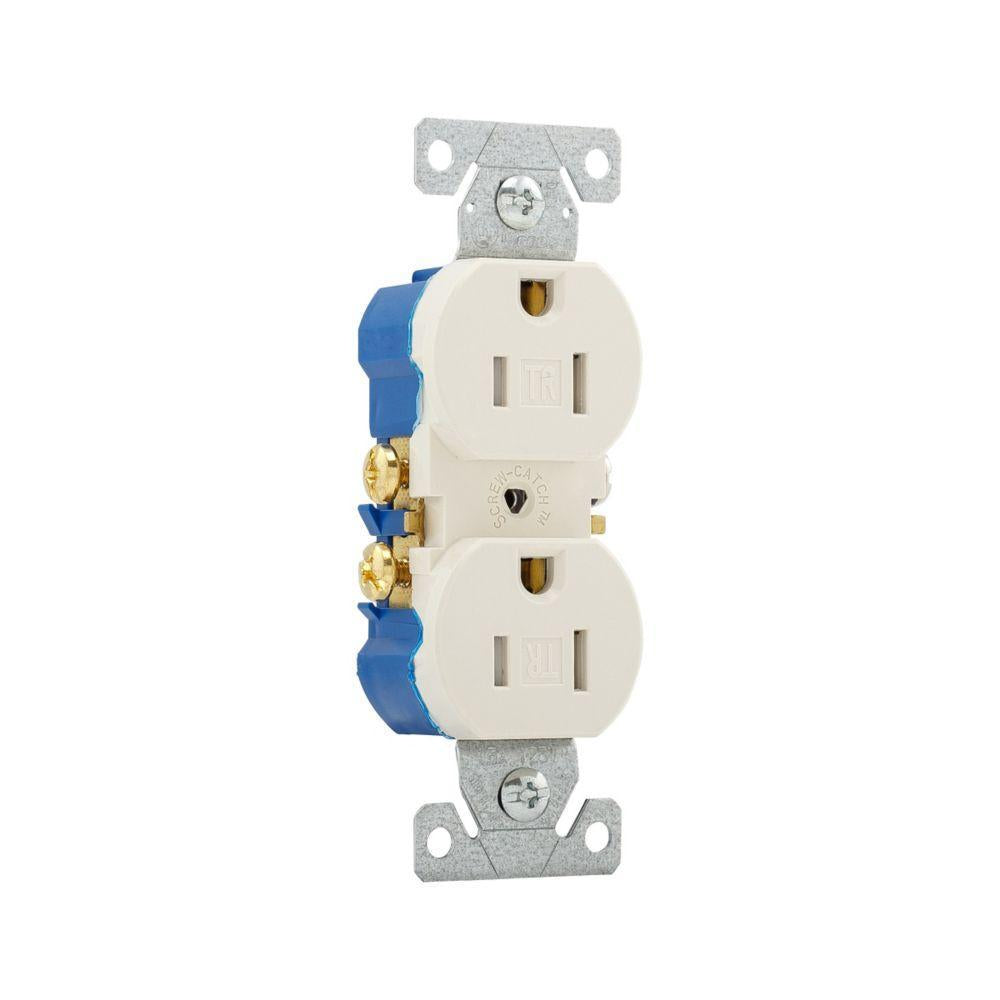

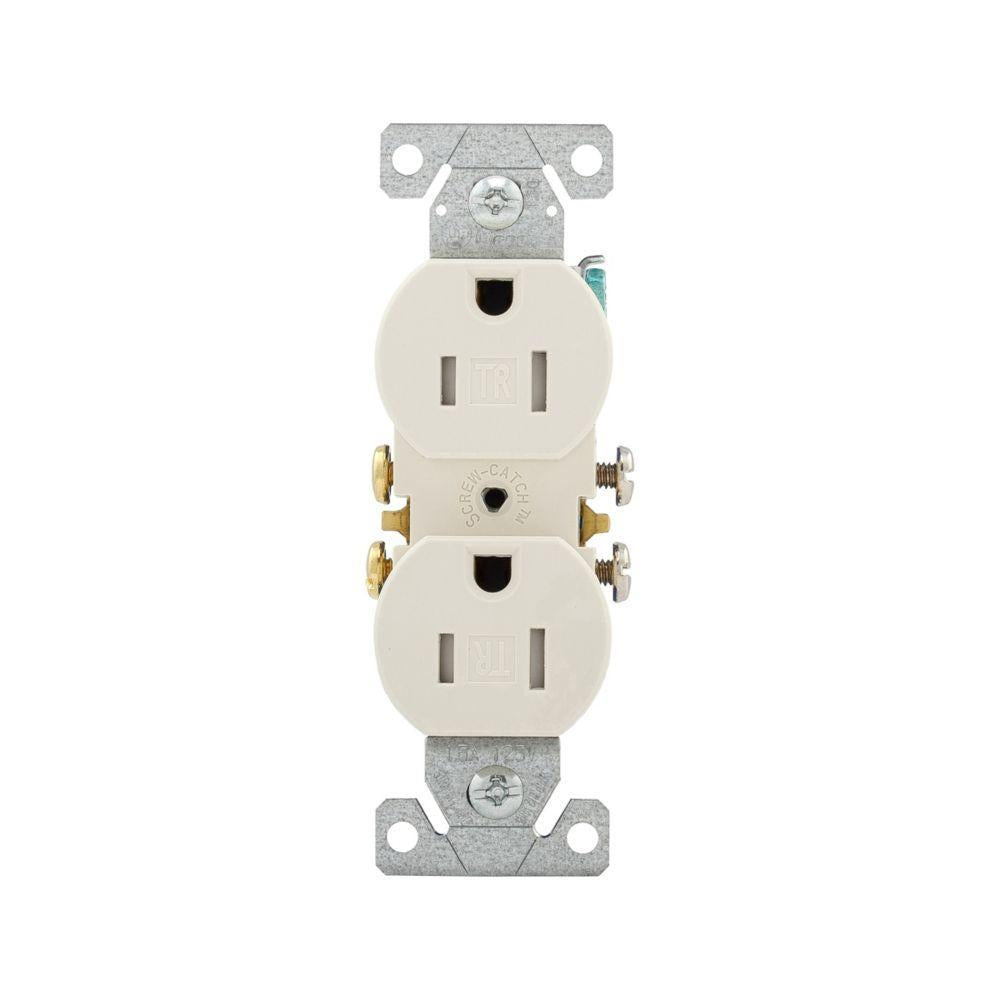

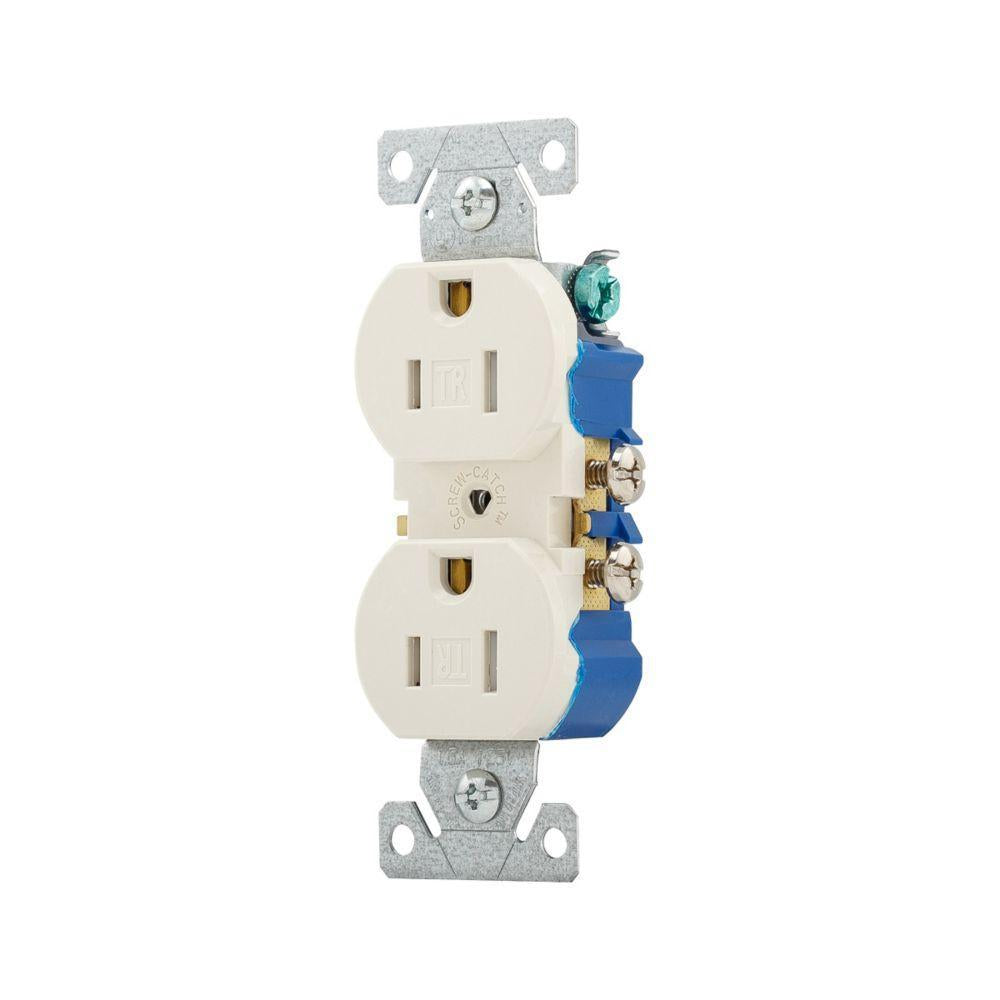

Straight Blade Duplex Grounding Receptacle - Thermoplastic

Straight Blade Duplex Grounding Receptacle - Thermoplastic

TR270LA

$1.47
$1.47 $1.03
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

COMPLEMENTARY PRODUCTS

MORE PRODUCT INFORMATION

FEATURES

• Longer, wider strap provides 40% more contact area to wall board, virtually eliminating floating installations
• Patented built-in wire looper for pre-looping
• Double-wipe ground contacts ensure long-term ground retention
• Easy access split circuit break-off tab
• Tri-combo screws accept Slotted, Phillips, and Robertson-head tools for installation flexibility
• Flush mounting
• Push and side wire connection
• 14 - 10 AWG

DIMENSIONS

LENGTH

1.18 in

WIDTH

1.77 in

HEIGHT

4.33 in

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

Tamper Resistant Duplex Receptacles provide compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. "TR" designation provides visual identification. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps with patented built-in wire stripper for #14 and #12 wire to speed installation. Side-wire terminals accept up to #10 solid or stranded wire and push-in terminals accept #14 solid wire.

SPECIFICATIONS

Amperage Rating

15 A

Dimensions

1.184 in L x 1.77 in W x 4.33 in H

Grade

Residential

Material

Thermoplastic

NEMA Rating

NEMA 5-15R

Number of Poles

2

Number of Wires

3

Temperature Rating

-20 to 70 deg C

Terminal Type

Screw

Type

Straight Blade

Voltage Rating

125 V AC
