SQUARE D

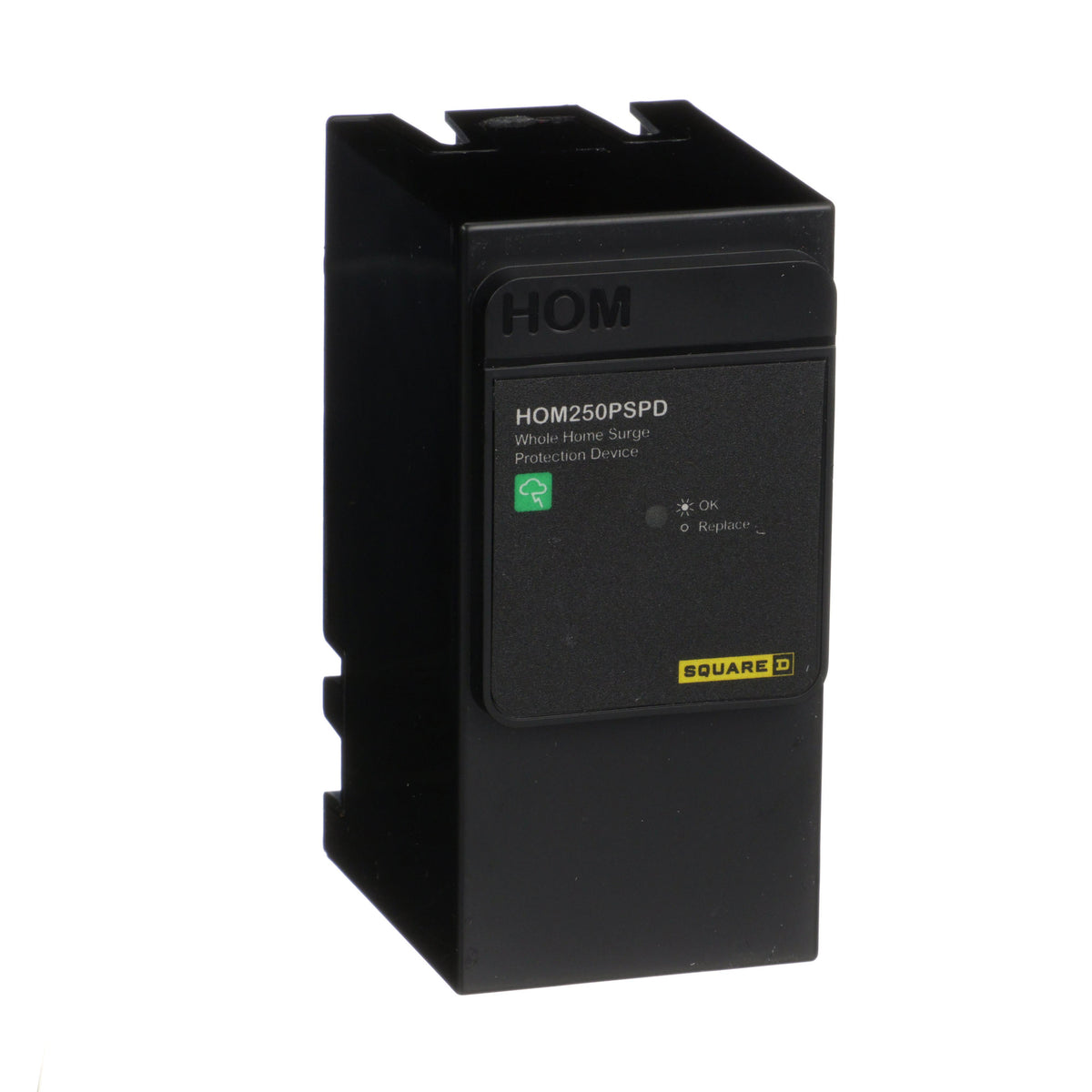

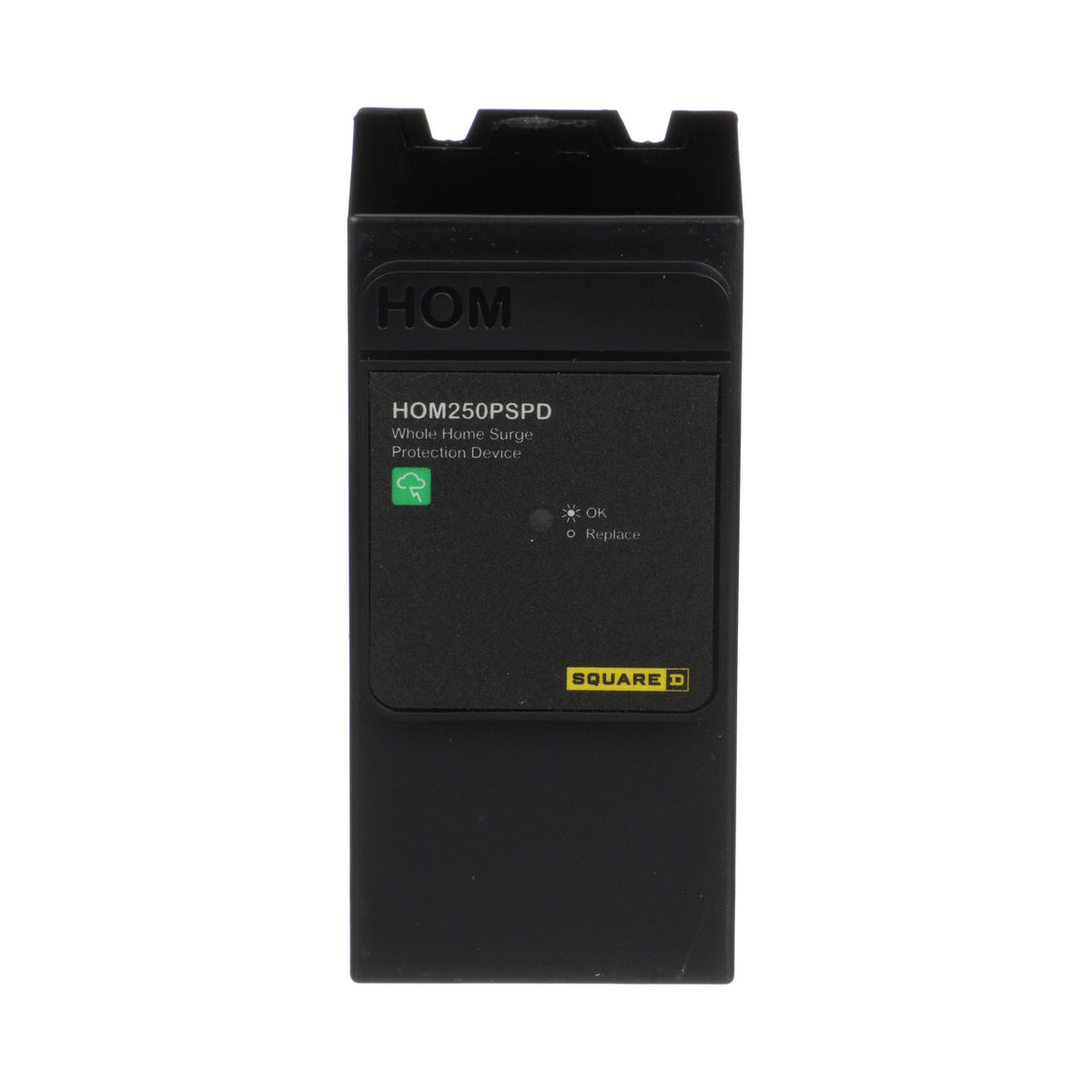

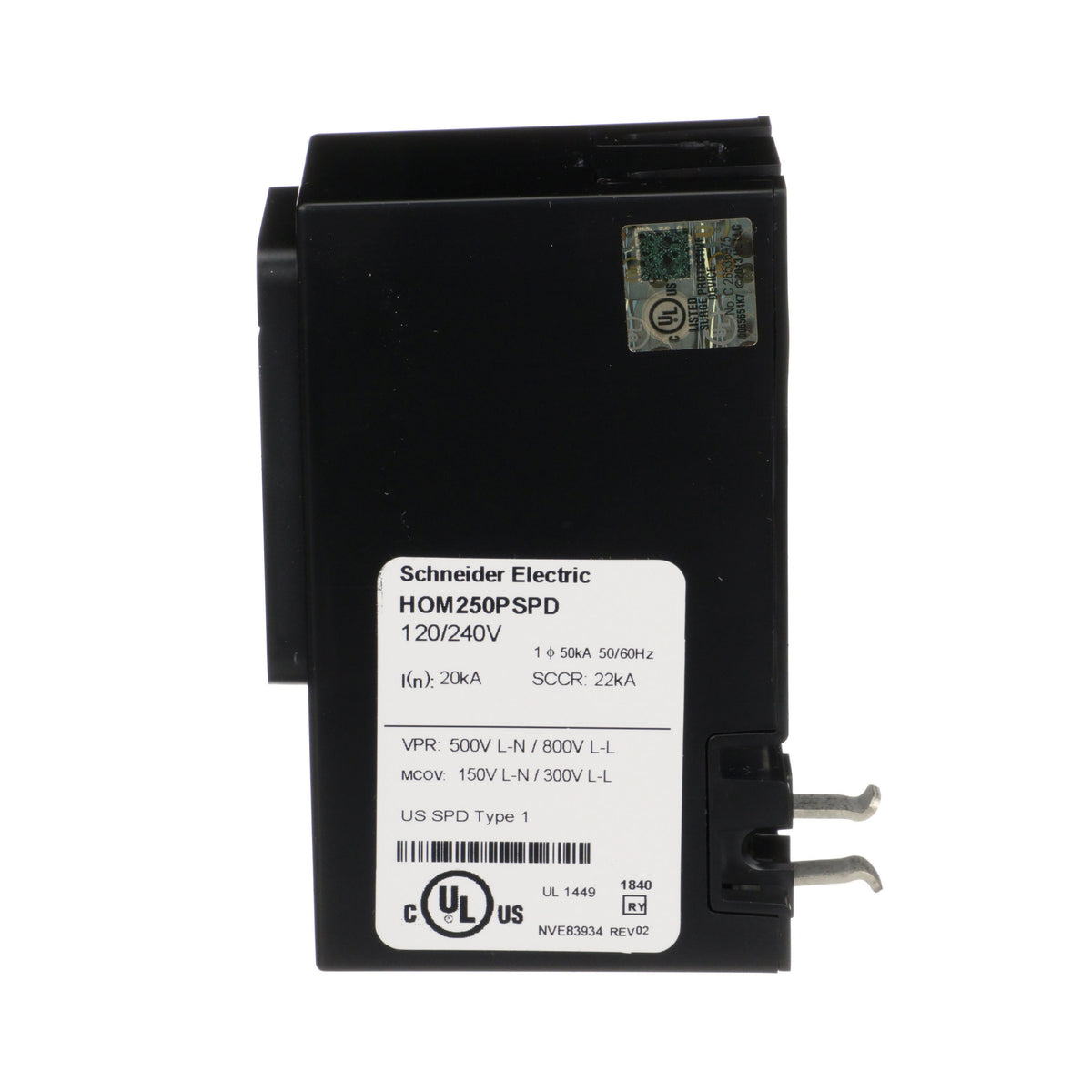

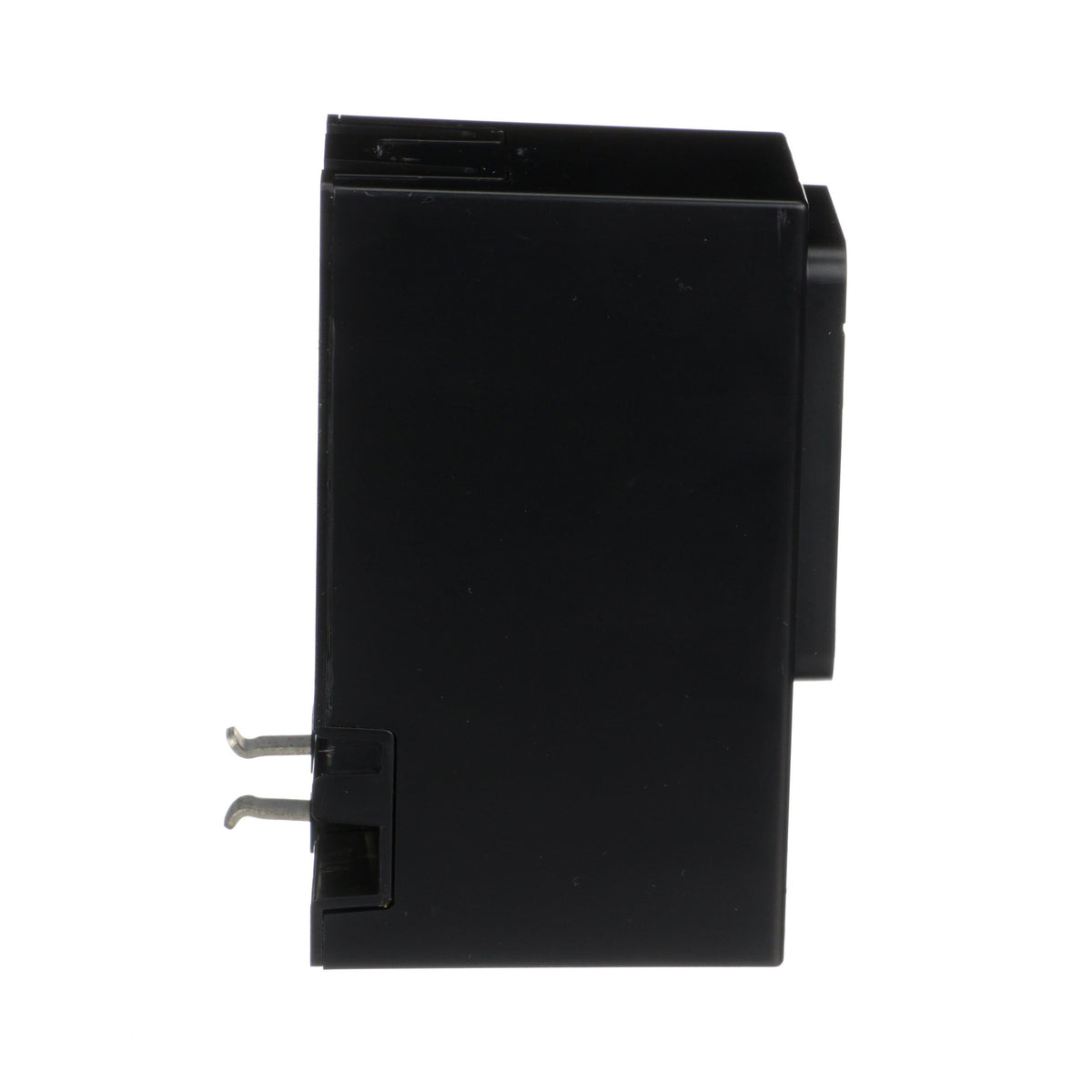

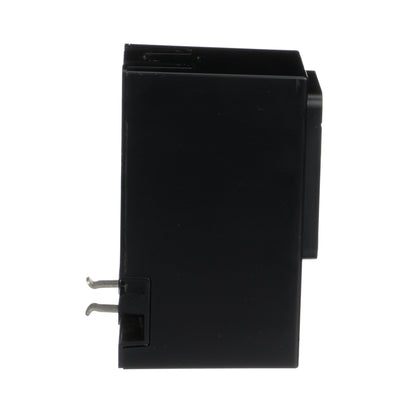

Surge Protective Device - Black - 120/240 V AC

Surge Protective Device - Black - 120/240 V AC

HOM250PSPD



Regular price $122.76
Sale price $122.76 Regular price $0.00
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Protects against accidental shocks through the use of touch-safe terminals
• Type T units are designed for the global market and are the best choice when size and cost are of concern

DIMENSIONS

WIDTH

1.97 in

HEIGHT

3.98 in

WEIGHT

0.48 lb

PRODUCT OVERVIEW


Square D™ Load Center Surge Protective Devices (SPDs) are plug-in units designed for fast and straightforward installation. The surge suppressors use two pole spaces in a Load center. SPD are single phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. This is a plug on neutral surge protective device for Homeline load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Securing up to 50kA surge current per phase. This surge protection device is UL Listed.


SPECIFICATIONS

Dimensions

3.98 in H x 1.97 in W x 2.6 in D

Enclosure Type

NEMA 2

Material

Plastic

Nominal Discharge Current

20 kA

Number of Wires

3

Peak Surge Current

50 kA

Short Circuit Current Rating

22 kA

Terminal Type

Plug-In

Type

1-Phase

Voltage Rating

120/240 V AC
