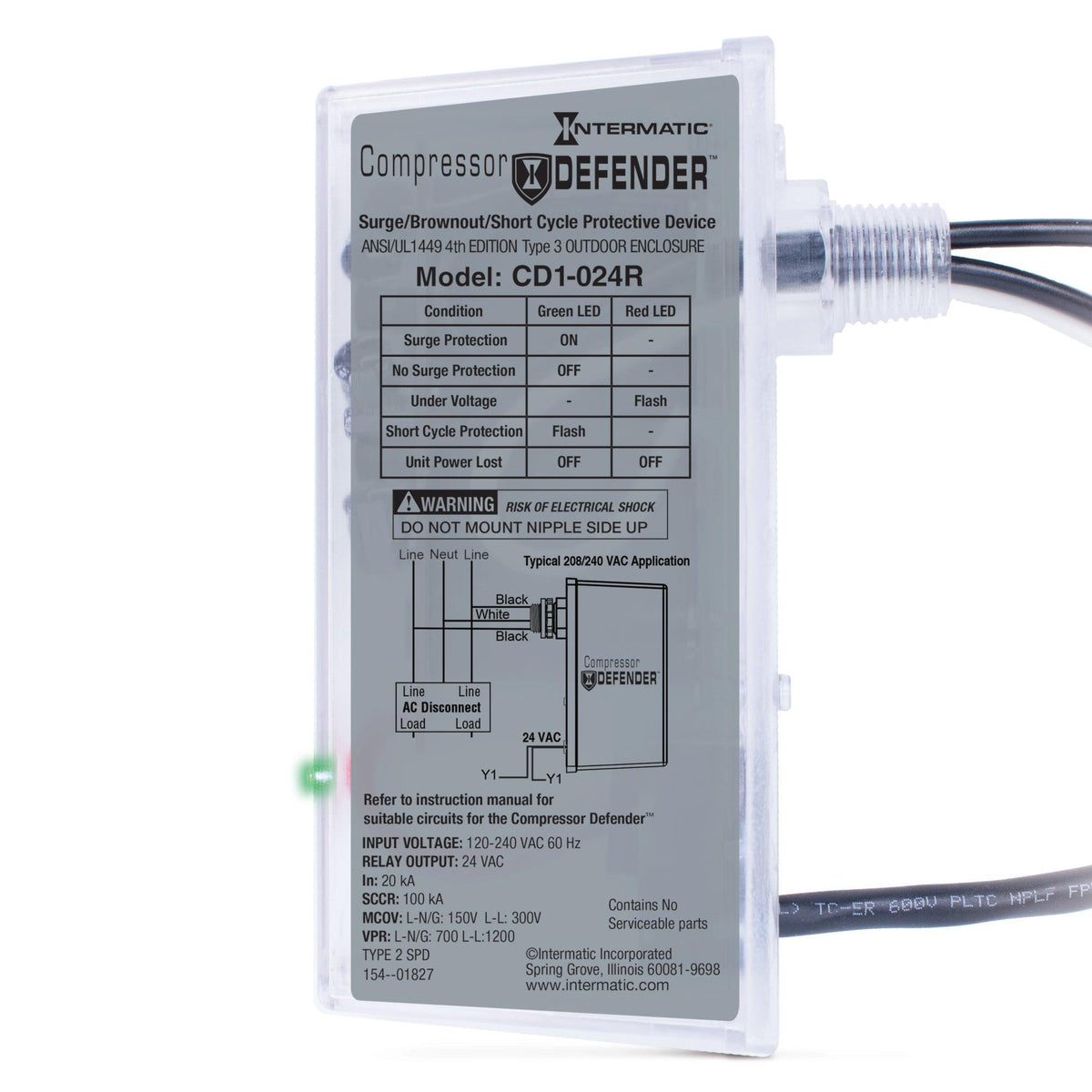

Surge Protective Device - Rigid - 24 A
Surge Protective Device - Rigid - 24 A
CD1-024R
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Auto-sense voltage technology
• Quick-reacting, 5-line cycle undervoltage response time
• 24 VAC/VDC, 2 A control thermostat output
DIMENSIONS
DIMENSIONS
|
HEIGHT |
106.4 mm |
|---|---|
|
WEIGHT |
1.2 lb |
PRODUCT OVERVIEW
The COMPRESSOR DEFENDER® surge protector is the only all-in-one undervoltage and surge power protection device on the HVAC Market, providing protection for central A/C and heat pump condensing units and their associated motors, controls and components—both electronic and mechanical. It can be installed inside the condensing unit or externally on the outdoor A/C disconnect. Autosense voltage technology protects at any voltage from 120-240 VAC, making it an ideal solution for residential or light commercial installations. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are associated with standard MOV technology. The device is also designed with integrated 3-minute short cycle time delay protection.
SPECIFICATIONS
|
Dimensions |
106.4 mm H |
|---|---|
|
Electrical Ratings |
24 A, 120/240 V AC |
|
Enclosure Type |
NEMA 1/2/3/3R |
|
Environmental Conditions |
-40 to 158 deg F Operating Temperature |
|
Frequency Rating |
60 Hz |
|
Indicator Type |
LED |
|
Modes of Protection |
L-L/L-G/L-N |
|
Mounting Type |
Rigid |
|
Nominal Discharge Current |
10 kA |
|
Peak Surge Current |
24 A |
|
Phase |
1 |
|
Short Circuit Current Rating |
20 kA |

$151.85
