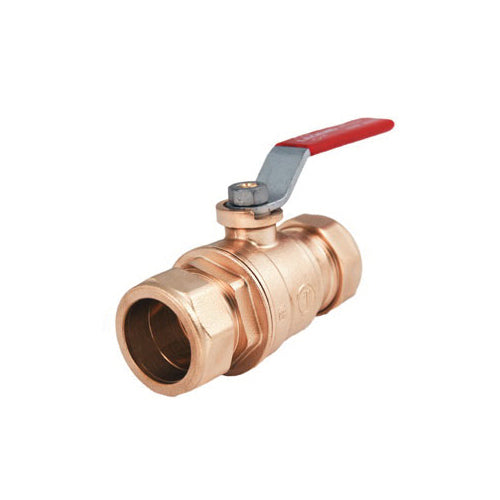

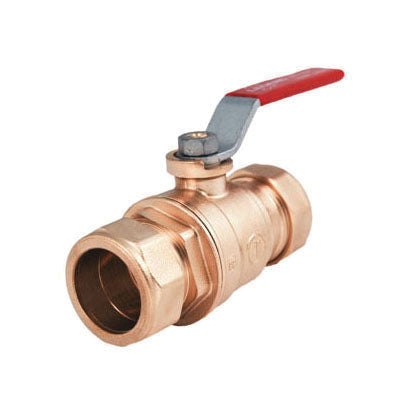

T-1009NL - 1" Ball Valve - Brass
T-1009NL - 1" Ball Valve - Brass
101-645NL
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Lead free chrome plated forged brass ball/end adaptor/body/stem, Dyneon® TFM® PTFE anti-friction thrust washer anti-friction washer/seat, dacromet coated steel handle dacromet coated steel with PVC resin lock handle nut, FKM fluoroelastomer stem O-Rings, forged brass compression nut, tubular brass ferrule
• Self-cleaning chrome plated ball resists mineral build-up and scaling typically found in harsh, varying water conditions
• Tubing compression connections permit easy, convenient, Lead free compliant replacement of a worn, leaded valve, without the need for sweating
• Quarter-turn, positive shutoff full port design, make the T-1009NL the ideal replacement for a leaking multi-turn, drip-tight, reduced port gate valve
• Bottom loaded blow-out proof stem
• Lead free design is suitable for all no lead potable water installations in full compliance of all Lead free plumbing laws
• Maintenance-free design
• TFM/PTFE thrust washer
DIMENSIONS
DIMENSIONS
|
WEIGHT |
1.11 lb |
|---|
WARRANTY
WARRANTY
5/25 Years
PRODUCT OVERVIEW
Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.
SPECIFICATIONS
|
Actuator Type |
Quarter Turn Handle |
|---|---|
|
Ball Material |
Brass |
|
Body Material |
Brass |
|
Domestic/Import |
Import |
|
End Style |
C |
|
Inlet to Outlet Length |
3.83 in |
|
Media |
Oil/Water |
|
Nominal Size |
1 in |
|
Port Type |
Full |
|
Pressure Rating |
600 psi |
|
Series |
T-1009NL |
|
Softgoods Material |
TFM/PTFE |
|
Top to Inlet Center |
1.8 in |
|
Trim Material |
Brass Stem and PTFE Seat |

$74.93
