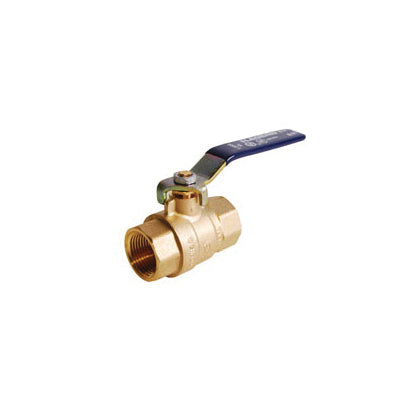

T-2000NL - 3" Ball Valve - Forged Brass - FNPT

T-2000NL - 3" Ball Valve - Forged Brass - FNPT

101-420NL

$324.80
$324.80 $638.87
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Lead free design is suitable for all no-lead potable water installations, in full compliance of all Lead free plumbing laws
• Dezincification-resistant (DZR) forged brass resists corrosion from exposure to a wide variety of water conditions
• Bottom loaded, blow-out proof stem features a dual-seal PTFE packing and EPDM rubber O-Ring design, assuring positive sealing under a multitude of conditions
• Self-cleaning chrome plated ball resists mineral build-up and scaling typically found in harsh, varying water conditions
• 150 psi saturated steam
• PTFE packing and EPDM rubber O-ring

DIMENSIONS

WEIGHT

10.86 lb

WARRANTY

5 Years

DOCUMENTS & RESOURCES

Specification Sheet
Product Brochure

PRODUCT OVERVIEW

The T/S-2000NL no lead brass full port ball valve has a larger pattern body suitable for most any application. Constructed of no lead and DZR binary brass alloy. Available in sizes and configurations 1/4 to 4 in, FNPT x FNPT and 1/2 to 4 in, C.

SPECIFICATIONS

Actuator Type

Lever Operated

Ball Material

Stainless Steel

Body Material

Forged Brass

Domestic/Import

Import

End Style

FNPT

Inlet to Outlet Length

6.38 in

Media

Natural/Manufactured/Mixed LP Gas/Air Mixtures

Nominal Size

3 in

Port Type

Full

Pressure Rating

400 psi CWP

Series

T-2000NL

Softgoods Material

PTFE/EPDM Rubber

Top to Inlet Center

5.02 in

Trim Material

Forged Brass Stem and PTFE Seat
