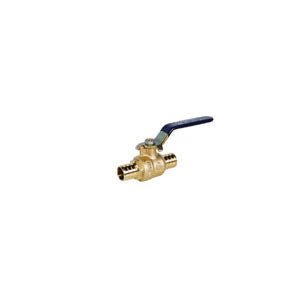

T-2006NL - 1/2" Ball Valve - Forged Brass - PEX
T-2006NL - 1/2" Ball Valve - Forged Brass - PEX
101-593NL
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Lead free design is suitable for all no-lead potable water installations, in full compliance of all Lead free plumbing laws
• Durable, forged brass construction is smaller, yet stronger than cast versions making them ideal for confined tubing installations
• Maintenance-free dual O-Ring, Blow-out proof stem design eliminates the stem packing nut, thereby eliminating the need for periodic nut tightening
• PTFE seats assure a positive shutoff and a longer in-service life over ball valves with other seat types
• Self-cleaning chrome plated ball resists mineral build-up and scaling typically found in harsh, varying water conditions
• Not suitable for steam service
• 400 psi cold working pressure
• Third-party tested and certified in compliance with all Lead free plumbing laws, including US Federal Public Law 111-380
• PTFE is a registered trademark of the DuPont company
DIMENSIONS
DIMENSIONS
|
WEIGHT |
0.27 lb |
|---|
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
SPECIFICATIONS
|
Actuator Type |
Lever Operated |
|---|---|
|
Ball Material |
Polished Chrome Forged Brass |
|
Body Material |
Forged Brass |
|
Domestic/Import |
Import |
|
End Style |
PEX |
|
Inlet to Outlet Length |
2.52 in |
|
Nominal Size |
1/2 in |
|
Port Type |
Full |
|
Pressure Rating |
400 psi CWP |
|
Series |
T-2006NL |
|
Top to Inlet Center |
1.49 in |
|
Trim Material |
Forged Brass Stem and PTFE Seat |

$7.95
