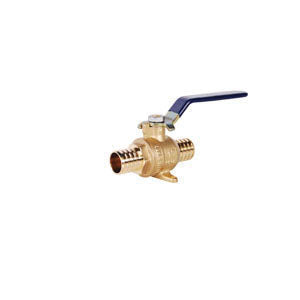

T-2008NL - 3/4" Drop Ear Ball Valve with Handle - PEX

T-2008NL - 3/4" Drop Ear Ball Valve with Handle - PEX

101-577NL

$11.57
$11.57 $29.22
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Lead free design is suitable for all no-lead potable water installations, in full compliance of all Lead free plumbing laws
• Integral drop-ear body design permits stable mounting with two screws (not included), eliminating tubing flex during valve operation and the need for separate tubing braces
• Dezincification-resistant (DZR) forged brass resists corrosion from exposure to a wide variety of water conditions
• Durable, forged brass construction is smaller, yet stronger than cast versions making them ideal for confined tubing installations
• Maintenance-free dual O-Ring, Blow-out proof stem design eliminates the stem packing nut, thereby eliminating the need for periodic nut tightening
• Not suitable for steam applications

DIMENSIONS

WEIGHT

0.38 lb

WARRANTY

5 Years

DOCUMENTS & RESOURCES

Specification Sheet
Product Brochure

PRODUCT OVERVIEW

Maintenance-free dual EPDM O-ring stem seal, zinc plated steel handle with vinyl sleeve and drop ears. CWP 400 psi. Third Party certified no lead ANSI/NSF 61-G and DZR ANSI/NSF 14, IAPMO. ASTM F1806. Configuration and Sizes: PEX x PEX, 1/2 to 1 in.

SPECIFICATIONS

Ball Material

Polished Chrome Forged Brass

Body Material

DZR Forged Brass

Domestic/Import

Import

End Style

PEX

Inlet to Outlet Length

2.62 in

Nominal Size

3/4 in

Port Type

Full

Pressure Rating

400 psi CWP

Series

T-2008NL

Top to Inlet Center

1.57 in

Trim Material

Forged Brass Stem and PTFE Seat

Type

Drop Ear
