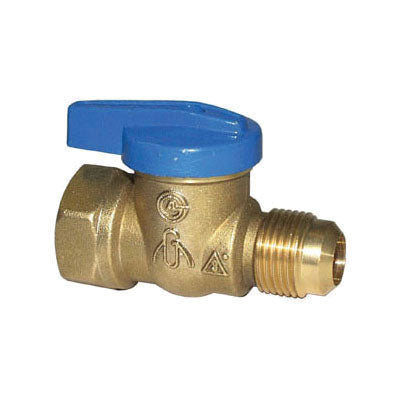

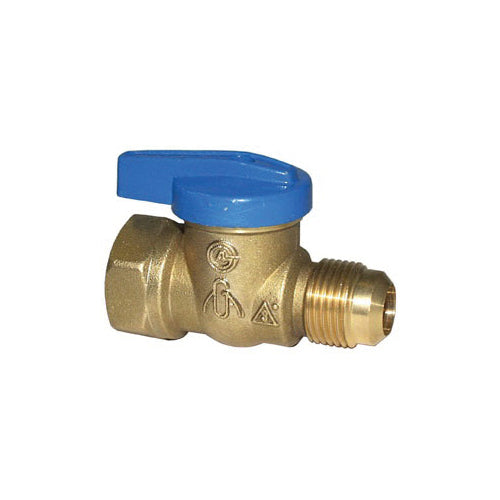

T-3000 - 3/8 x 1/2" Gas Ball Valve with Handle
T-3000 - 3/8 x 1/2" Gas Ball Valve with Handle
102-112
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Patented 1-piece forged brass body eliminates the possibility of seam leaks common to two-piece body designs
• Chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low or moderate pressure gas applications
• Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks
• The 175 psi pressure rating permits high-pressure air tests, without the grease-seal Blow-out common to plug-type gas cocks
• Not suitable for steam service
DIMENSIONS
DIMENSIONS
|
HEIGHT |
1.83 in |
|---|---|
|
WEIGHT |
0.34 lb |
WARRANTY
WARRANTY
5 Years
PRODUCT OVERVIEW
SPECIFICATIONS
|
Ball Material |
Polished Chrome Forged Brass |
|---|---|
|
Body Material |
Forged Brass |
|
Dimensions |
1.83 in H |
|
Domestic/Import |
Import |
|
End Style |
Flare x FNPT |
|
Inlet to Outlet Length |
2.35 in |
|
Media |
Natural/Manufactured/Mixed LP Gas/Air Mixtures |
|
Nominal Size |
3/8 x 1/2 in |
|
Pressure Rating |
175 psi CWP |
|
Series |
T-3000 |
|
Trim Material |
Forged Brass Stem and Nitrile Rubber Seat |

$14.10
